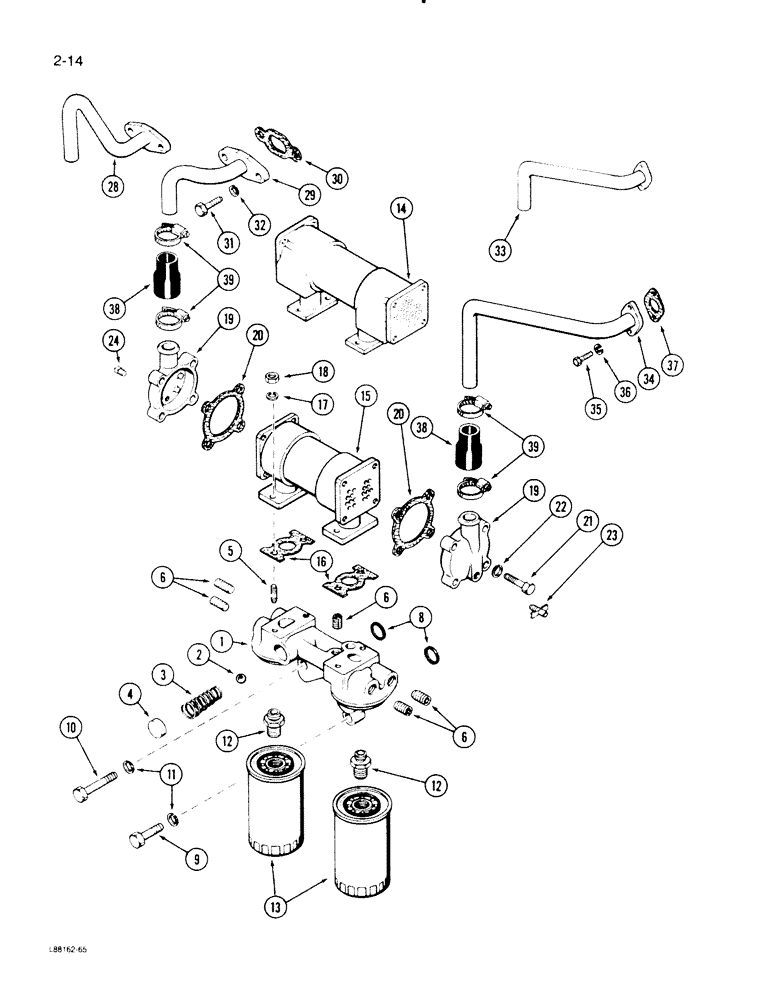

Запчасти Case 1455B (2-14) - OIL FILTER AND HEAT EXCHANGER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A154541

BASE

ASSEMBLY - oil filter, Includes: Ref. 2 - 6

1шт.

2

211-17

BALL,3/4" Dia

- relief spring, 3/4 inch diameter

1шт.

3

A146897

SPRING

- relief

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- cup type, 1-1/4 inch diameter

1шт.

5

G102128

BOLT

- mounting, 1-1/2 inch

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- socket head, 1/2 inch PT

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

11

195-33

WASHER,1/2"

- flat, 1/2 x 1-1/16 x 1/8 inch

2шт.

12

A63916

ADAPTER

-, Serial Range: filter-base

2шт.

13

A44081

ENGINE OIL FILTER

ELEMENT - filter

2шт.

REF: 13A - FACTORY FILTERS ARE ONLY 5" FILTERS AND SERVICE FILTERS ARE LARGER.

1шт.

14

A75295

OIL COOLER

EXCHANGER - heat (Engine Serial Number 10335337 and after)

1шт.

15

A63917

COOLER

EXCHANGER - heat (Prior to Engine Serial Number 10335337)

1шт.

16

A65359

GASKET

- heat, Serial Range: exchanger-base

2шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

19

A64349

HOOD

PLATE - end, heat exchanger

2шт.

20

A63920

GASKET

- end plate

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

217-107

VALVE

- drain

1шт.

24

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8 inch PT

1шт.

28

A75296

TUBE

- heat exchanger to block (Engine Serial Number 10335337 and after)

1шт.

29

A64350

TUBE

- heat exchanger to block (Prior to Engine Serial Number 10335337)

1шт.

30

A58670

GASKET

-, Serial Range: tube-block

1шт.

31

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

A166048

TUBE

- water pump to heat exchanger (Engine Serial Number 10335337 and after)

1шт.

34

A66714

TUBE

- water pump to heat exchanger (Prior to Engine Serial Number 10335337)

1шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

36

92-5

LOCK WASHER,5/16"

2шт.

37

A58680

OIL PAN GASKET SET

- tube to water pump

1шт.

38

A64353

HOSE

- tube to heat exchanger

2шт.

39

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.
