Запчасти Case 1455B (2-12) - WATER PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

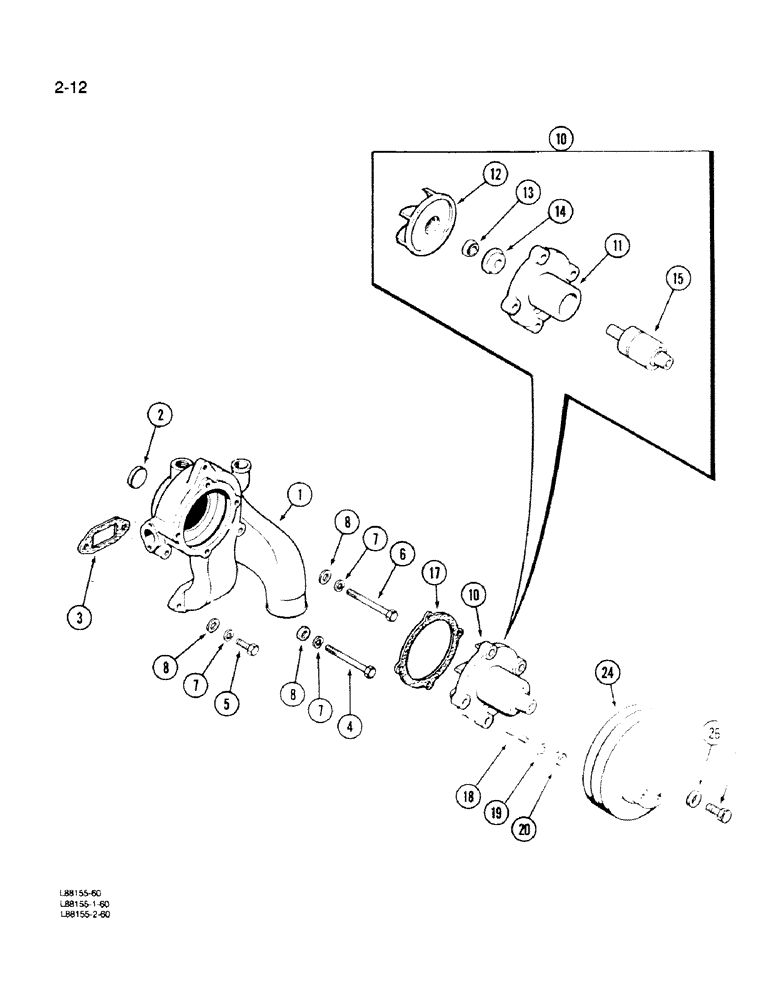

Схема запчастей Case 1455B - (2-12) - WATER PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A58856

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup type, 1-3/8 inch diameter

1шт.

3

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

4

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT, Hex, 3/8"-16 x 4", G5

1шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

8

95-6

WASHER,3/8"

WASHER - flat, 7/16 x 1 x 5/64 inch

4шт.

10

A157145

PUMP, WATER

PUMP ASSEMBLY - water (New) (Replaces A155180), Includes: Ref. 11 - 15

1шт.

10

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number - pump (Use to return pump core for credit), Includes: Ref. 11 - 15

1шт.

10

A48369

PUMP

PUMP KIT - water (Remanufactured) (Includes A155180), Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

12

A166282

IMPELLER

IMPELLER - water (Replaces A152126)

1шт.

13

A166280

SEAT

SEAT - impeller (Replaces A34000) (Also order A166281)

1шт.

14

A166281

SEAL

SEAL - pump shaft (Replaces A142499) (Also order A166280)

1шт.

15

A156995

BEARING

SHAFT ASSEMBLY - pump (Replaces A155272)

1шт.

17

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

18

A166044

STUD

STUD - pump mounting, 1-7/16 inch

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8 inch NC

4шт.

24

A65124

PULLEY

PULLEY - belt

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT - hex, 1/2 NF x 1-1/4 inch

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - flat, 33/64 x 1 x 11/32 inch

1шт.

Выбрано товаров: 24
