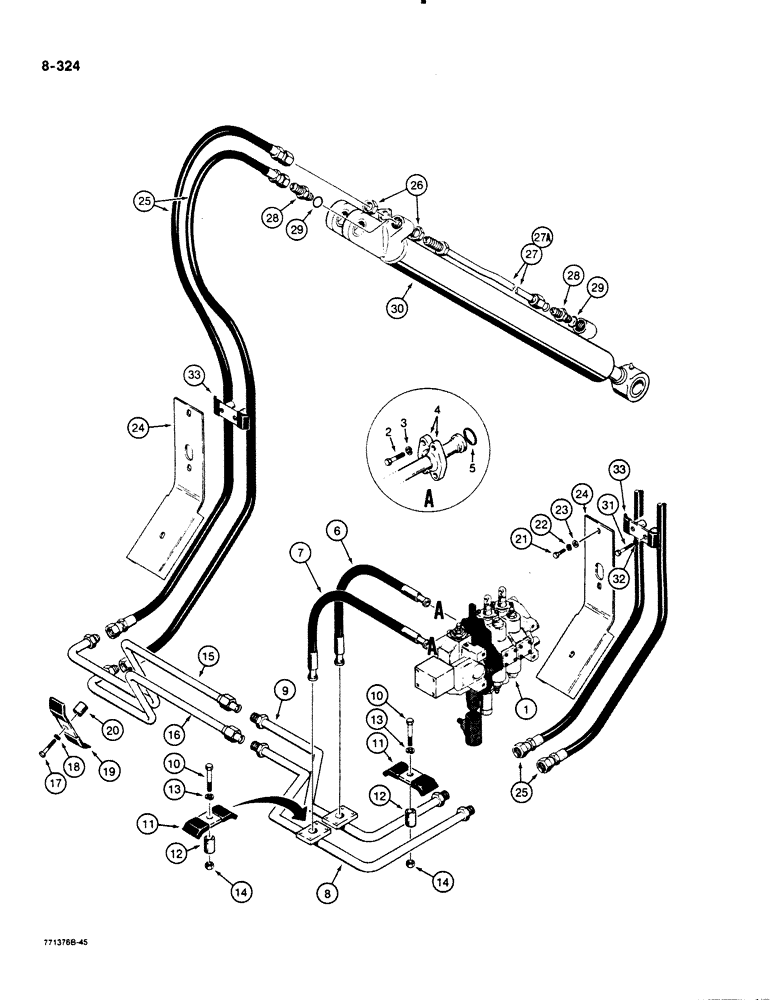

Запчасти Case 1455B (8-324) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - control, for correct assembly and components see Figs. 8-410 and 8-412
1шт.
2
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
16шт.
3
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
16шт.
4
A12306
FLANGE
CLAMP - split flange
8шт.
5
D31968
O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
- hose
4шт.
6
R39128
HOSE
- port A
1шт.
7
R39127
HOSE
- port B
1шт.
8
R43457
TUBE
- right-hand, to port B
1шт.
9
R43474
TUBE
- right-hand, to port A
1шт.
10
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
11
R27809
CLAMP
- tubes
2шт.
12
D76210
SPACER
- clamp
2шт.
13
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
14
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
15
R39131
TUBE
- left-hand, to port A
1шт.
16
R39129
TUBE
- left-hand, to port B
1шт.
17
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- hex, 3/8" - 16 NC x 2"
1шт.
18
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
19
R34049
CLAMP
- tube
1шт.
20
D76210
SPACER
- clamp
1шт.
21
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
6шт.
22
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
23
195-525
WASHER,3/8", SAE
- flat, 3/8", plated
6шт.
24
R42587
GUARD
- hydraulic hose, includes loader control pattern decal
2шт.
25
R28746
HOSE
- 62" (1575 mm) long
4шт.
26
218-1250
BHD LOCK NUT,Blkhd, 1 5/16"-12
NUT, LOCK, Blkhd, 1 5/16"-12
4шт.
27
R43588
TUBE
- rod end of right-hand cylinder
1шт.
27a
R53024
TUBE ASSY.,25.4 mm OD x 922, 21 mm L
TUBE - rod end of left-hand cylinder
1шт.
28
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adapter - straight, male, Incl. Ref. 29
4шт.
29
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
16-1, 90 Duro, 1.171" ID x .118" Thk, Adapter
1шт.
30
G34520
CYLINDER
- bucket, parts list Fig. 8-366
2шт.
31
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- hex, 3/8" - 16 NC x 2"
4шт.
32
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
33
R31467
CLAMP
- hose
2шт.
