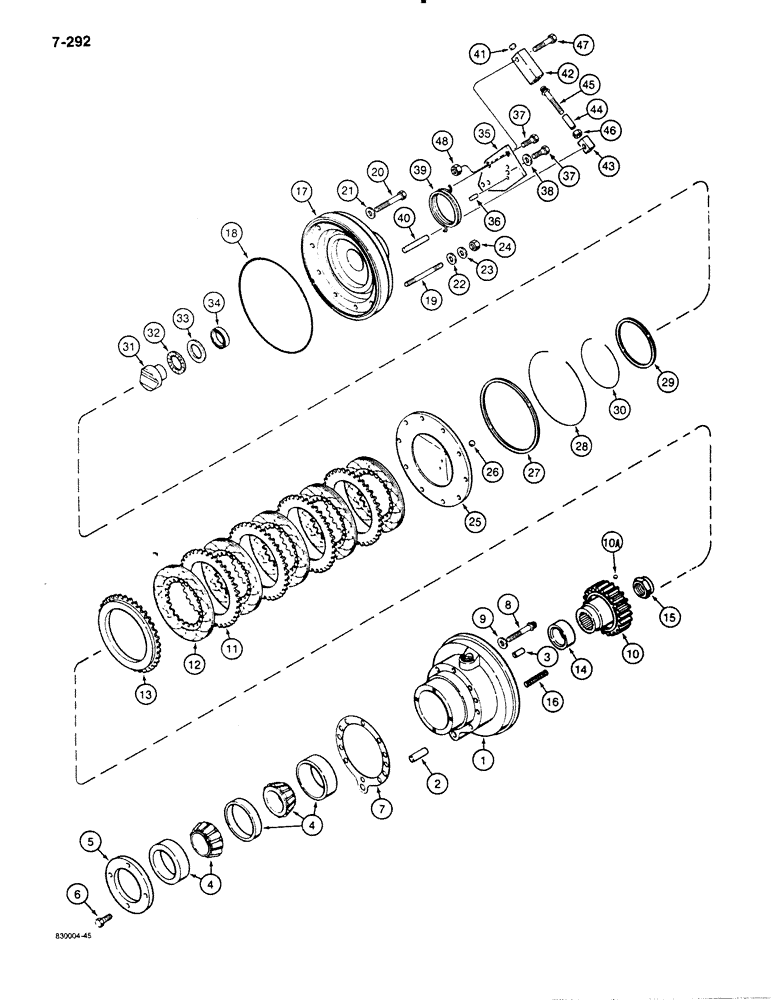

Запчасти Case 1455B (7-292) - TRANSMISSION BRAKES, HOUSING, DISCS, AND ADJUSTERS (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HOUSING - brake, see Fig. 6-214 or 6-218
2шт.
2
S64319
CALIPER
DOWEL - 1/2" x 1-1/2"
4шт.
3
A50801
TUBE
- oil
1шт.
4
A50685
BEARING ASSY,2.1255" ID x 4.126" OD x 2.891"
TAPERED ROLLER BEARING ASSEMBLY - includes two bearings, two cups, and a center retainer
2шт.
5
A50686
RETAINER
- tapered roller bearing assembly
2шт.
6
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
8шт.
7
A50688
SHIM,.005" Thk
(0.127 mm) .005" Thk
1шт.
Part of Transmission Seal Kit P/N G101829
1шт.
7
A50687
SHIM,.007" Thk
(0.178mm) .007" Thk
1шт.
Part of Transmission Seal Kit P/N G101829
1шт.
8
166-70
12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8
SCREW - Ferry head, 7/16" - 14 NC x 2-1/4", grade 8
16шт.
9
A50689
WASHER
- screw
16шт.
10
G103288
HUB CAP
HUB - brake disc, 29 external and 27 internal teeth, Includes: Ref. 10A
2шт.
10a
NSS
NOT SOLD SEPARAT
BALL - steel, 9/32" diameter
4шт.
11
G101711
PLATE
DISC - steel, 46 external teeth
8шт.
12
G102369
CLUTCH DISC
FRICTION DISC - 29 internal teeth
10шт.
13
G103391
PLATE
- pressure
2шт.
14
A50691
SPACER
- brake disc hub
2шт.
15
131-468
NUT,1 1/2"-12
NUT - hex, self-locking, 1-1/2" - NF
2шт.
Part of Transmission Seal Kit P/N G101829
1шт.
16
A50692
COIL SPRING
SPRING - return, piston
20шт.
Part of Brake Seal Kit P/N G101830
1шт.
17
A50695
COVER
- brake
2шт.
18
A50698
SEAL,Square, 3.4mm Thk x 240.89mm ID
GASKET - rubber
2шт.
Part of Brake Seal Kit P/N G101830
1шт.
19
A51467
STUD
- 3/8" - 16 NC x 4-3/8"
6шт.
20
113-241
BOLT,Hex, 3/8" - 16 x 3", Gr 5
14шт.
21
D32117
COPPER WASHER
WASHER, COPPER, Use with bolts
14шт.
Part of Brake Seal Kit P/N G101830
1шт.
22
A50694
DISC
WASHER - with rubber insert, use with studs
6шт.
Part of Brake Seal Kit P/N G101830
1шт.
23
195-25
WASHER,3/8"
- flat, , use with studs 3/8"
6шт.
Part of Brake Seal Kit P/N G101830
1шт.
24
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
6шт.
A50705
PISTON
ASSEMBLY - brake, Includes: Ref. 25 and 26
2шт.
25
NSS
NOT SOLD SEPARAT
PISTON - brake
1шт.
26
211-214
BALL,1/2" Dia
- 1/2", grade 25, chrome alloy steel
2шт.
27
A50707
SEAL,182.78mm ID x 191.64mm OD x 3.23mm Thk
- Teflon, large, inner
2шт.
Part of Brake Seal Kit P/N G101830
1шт.
28
A50708
ELECTRICAL WIRE
WIRE - inner seal lip
2шт.
Part of Brake Seal Kit P/N G101830
1шт.
29
A50709
SEAL,122.45mm ID x 131.32mm OD x 3.23mm Thk
- Teflon, small, outer
2шт.
Part of Brake Seal Kit P/N G101830
1шт.
30
A50710
ELECTRICAL WIRE
WIRE - outer seal lip
2шт.
Part of Brake Seal Kit P/N G101830
1шт.
31
A50699
CAM
- brake actuating
2шт.
32
T41022
THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W
- cam
2шт.
33
A50673
BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk
RACE - thrust bearing
2шт.
34
A54107
OIL SEAL,38.1mm ID x 8mm Thk
OIL SEAL - brake cover
2шт.
Part of Brake Seal Kit P/N G101830
1шт.
35
A50700
LEVER
- brake actuating
2шт.
36
138-130
LOCK PIN,1/4" x 3/4", Slotted
PIN, 1/4" x 3/4", Slotted
4шт.
37
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
38
95-6
WASHER,3/8"
- flat, 3/8"
2шт.
39
A50701
SPRING
- return, brake lever
2шт.
40
135-653
GROOVED PIN,1/2" x 3", Type D, Hardened
PIN, Grooved, 1/2" x 3", Type D, Hardened
2шт.
G100621
ADJUSTER
ASSEMBLY - brake, Includes: Ref. 41 - 46
2шт.
41
41-1008
PLUG,Cup, 1/2"
- adjuster block, 1/2"
1шт.
42
NSS
NOT SOLD SEPARAT
BLOCK - large
1шт.
43
NSS
NOT SOLD SEPARAT
BLOCK - small
1шт.
45
61-436
HEX SOC SCREW,1/4"-20 x 2 1/4"
SCREW - hex socket head, 1/4"-20 NC x 2-1/4"
1шт.
46
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
1шт.
47
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
48
25-146
JAM NUT,Jam, 3/8"-16, G5
JAM NUT - 3/8" - 16 NC
2шт.
G101829
GASKET KIT
KIT - transmission seal, Includes: Ref. 7 P/N A50688, Ref. 7 P/N A50687 and Ref. 15, plus G101830 kit, see Figure 6-256 for complete kit
1шт.
G101830
GASKET KIT
KIT - brake seal, Includes: Ref. 16, 18, 21, 22, 23, 27, 28, 29, 30 and 34, for complete kit see Figure 6-256
1шт.
