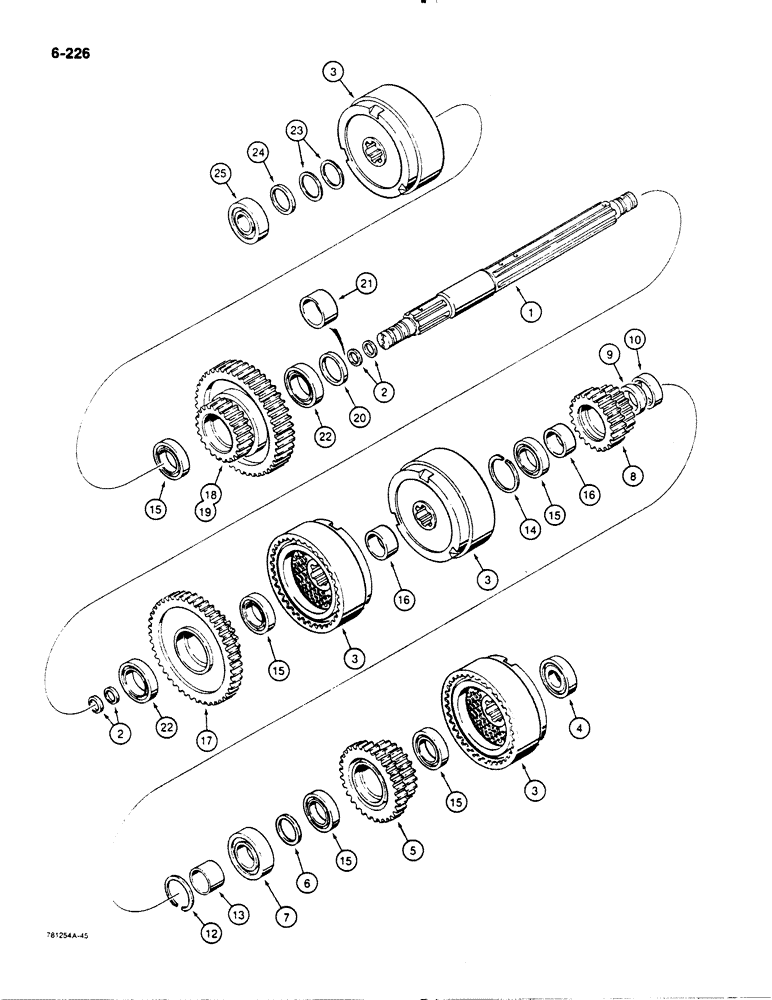

Запчасти Case 1450B (6-226) - TRANSMISSION LEFT-HAND AND RIGHT-HAND CLUTCH SHAFTS (06) - POWER TRAIN

1

G104202

SHAFT

- clutch

2шт.

Part of Transmission Seal Kit P/N G101829

1шт.

2

A50389

SEAL

RING - seal

8шт.

3

G102377

CLUTCH

ASSEMBLY - parts list Fig. 6-228

8шт.

4

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

- clutch, front

2шт.

5

A51142

GEAR

DRIVE GEAR - high clutch, 29 and 35 teeth, dozer models and 1455B loader models

1шт.

5

A51752

GEAR

DRIVE GEAR - high clutch, 29 and 32 teeth, 1450B loader models

1шт.

6

A50665

RING

SPACER - ball bearing, high clutch gear

2шт.

7

H756080

BALL BEARING

- high clutch gear

2шт.

G101318

GEAR

DRIVE GEAR ASSEMBLY - low clutch, Includes: Ref. 8 - 12

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR - low clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - wide, inner

1шт.

10

A51468

NEEDLE BEARING,Needle, 57.15mm ID x 66.67mm OD x 25.4mm W

- gear assembly

1шт.

12

A27414

RING

SNAP RING - needle bearing

1шт.

13

A51757

BUSHING,49.98mm ID x 57.13mm OD x 35.76mm L

RACE - needle bearing, low drive gear

2шт.

14

A27579

RING

SNAP RING - low clutch gear

2шт.

15

G10418

BEARING, BALL

BALL BEARING - gear

10шт.

16

A51842

SPACER

- clutch shaft

4шт.

17

G102300

GEAR

- driven, 29 and 51 teeth, left-hand and right-hand clutch, front

2шт.

18

G102300

GEAR

- driven, 29 and 51 teeth, right-hand clutch, rear

1шт.

19

G102301

GEAR

- reverse, 29 and 51 teeth, left-hand clutch, rear

1шт.

20

A50664

SPACER

- gear, left-hand clutch, 1/4" (6 mm) wide

1шт.

21

A50663

SPACER

- gear, right-hand clutch, 1-1/16" (27 mm) wide

1шт.

22

T25088

BALL BEARING,55 mm ID x 90 mm OD x 18 mm

- gears

4шт.

23

A50668

SHIM,.032" Thk

Rear spacer .032" Thk

1шт.

Part of Transmission Seal Kit P/N G101829

1шт.

24

A50667

SPACER

- rear

2шт.

25

40035

SHAFT,1.5748" ID x 3.5433" OD x 0.9055"

BALL BEARING - rear

2шт.

G101829

GASKET KIT

KIT - transmission seal, Includes: Ref. 2 and 23, for complete kit see Figure 6-256

1шт.
