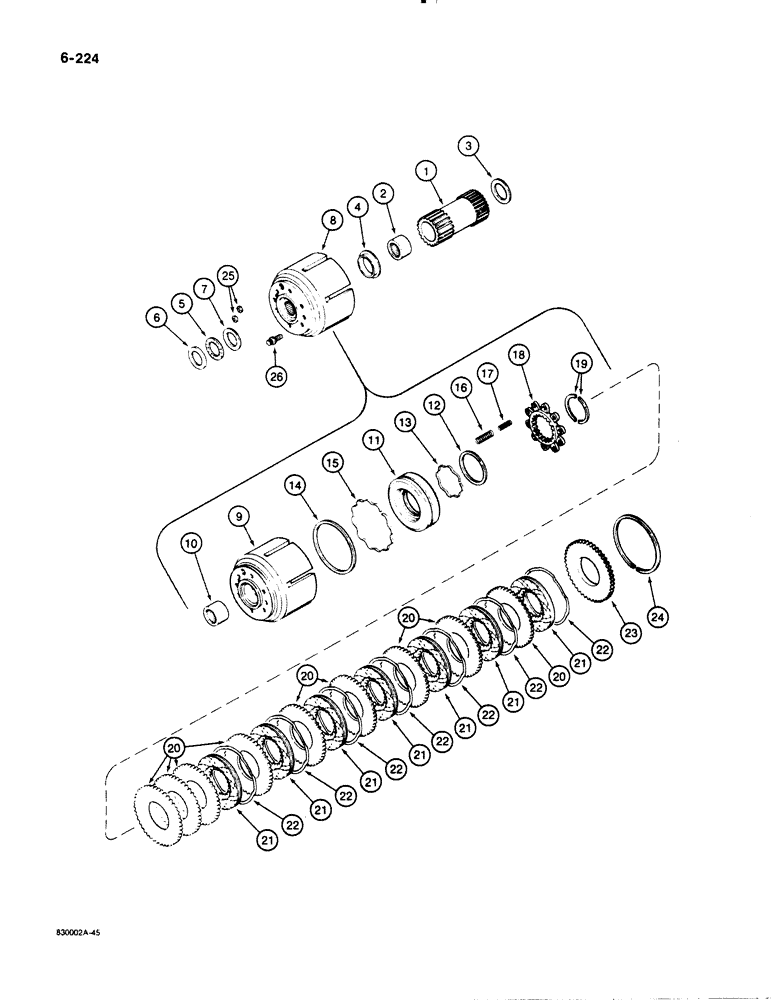

Запчасти Case 1450B (6-224) - TRANSMISSION SUN GEAR AND LOW RANGE CLUTCH (06) - POWER TRAIN

1

G102786

GEAR

- sun, Includes: Ref. 2

1шт.

2

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

- sun gear

1шт.

3

H147785

BEARING WASHER

THRUST WASHER - front

1шт.

4

A50650

RING

SLEEVE - clutch assembly

1шт.

5

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

- clutch assembly

1шт.

6

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

THRUST WASHER - 0.032" (0.793 mm) thick

1шт.

7

T41021

RING RACE

THRUST WASHER - 0.188" (4.76 mm) thick

1шт.

8

G105786

CLUTCH

ASSEMBLY - low range

1шт.

9

G102114

HOUSING

- clutch, uses A50646 needle bearing, no longer available, order G105784 housing and G105785 needle bearing, Includes: Ref. 9 - 24

1шт.

9

G105784

HOUSING

- clutch, uses G105785 needle bearing, Includes: Ref. 9 - 24

1шт.

10

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

- 2-1/8" (54 mm) OD, Torrington No. J2816, if used

1шт.

10

G105785

NEEDLE BEARING

- G105784 clutch housing, 2-5/16" (59 mm) OD, Torrington No. HJ-283716 or McGill No. MR-28-N, if used

1шт.

A50621

PISTON

ASSEMBLY - clutch, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - clutch

1шт.

12

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

- seal, inner

1шт.

Part of Clutch Repair Kit P/N G101831

1шт.

13

G102093

SPRING

- wave, inner

1шт.

Part of Clutch Repair Kit P/N G101831

1шт.

14

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

RING - seal, outer

1шт.

Part of Clutch Repair Kit P/N G101831

1шт.

15

G102094

SPRING

- wave, outer

1шт.

Part of Clutch Repair Kit P/N G101831

1шт.

16

A50627

SPRING

- piston return, outer

10шт.

Part of Clutch Repair Kit P/N G101831

1шт.

17

A50628

SPRING

- piston return, inner

10шт.

Part of Clutch Repair Kit P/N G101831

1шт.

18

A50629

RETAINER

- piston return springs

1шт.

19

A50630

RING

- retainer, split, includes both halves

1шт.

20

A67156

PLATE

- steel, 70 external teeth

9шт.

21

G102264

CLUTCH DISC,66.93mm ID x 133.35mm OD x 4.04mm Thk

FRICTION DISC - 22 internal teeth

7шт.

22

A50642

SPRING

- wave, no longer used, not required

7шт.

23

A50643

PLATE

- backing

1шт.

24

A50639

RING

RETAINING RING - clutch plates

1шт.

25

A50651

SEALING RING

SEAL - rubber, low clutch housing to rear cover

2шт.

Part of Transmission Seal Kit P/N G101829

1шт.

26

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW - Ferry head, 5/16" - 18 NC x 7/8", clutch housing to rear cover

2шт.

G101829

GASKET KIT

KIT - transmision seal, Includes: Ref. 25, for complete kit see Figure 6-256

1шт.

G101831

GASKET KIT

KIT - clutch repair, Includes: Ref. 12, 13, 14, 15, 16 and 17, for complete kit see Figure 6-258

1шт.
