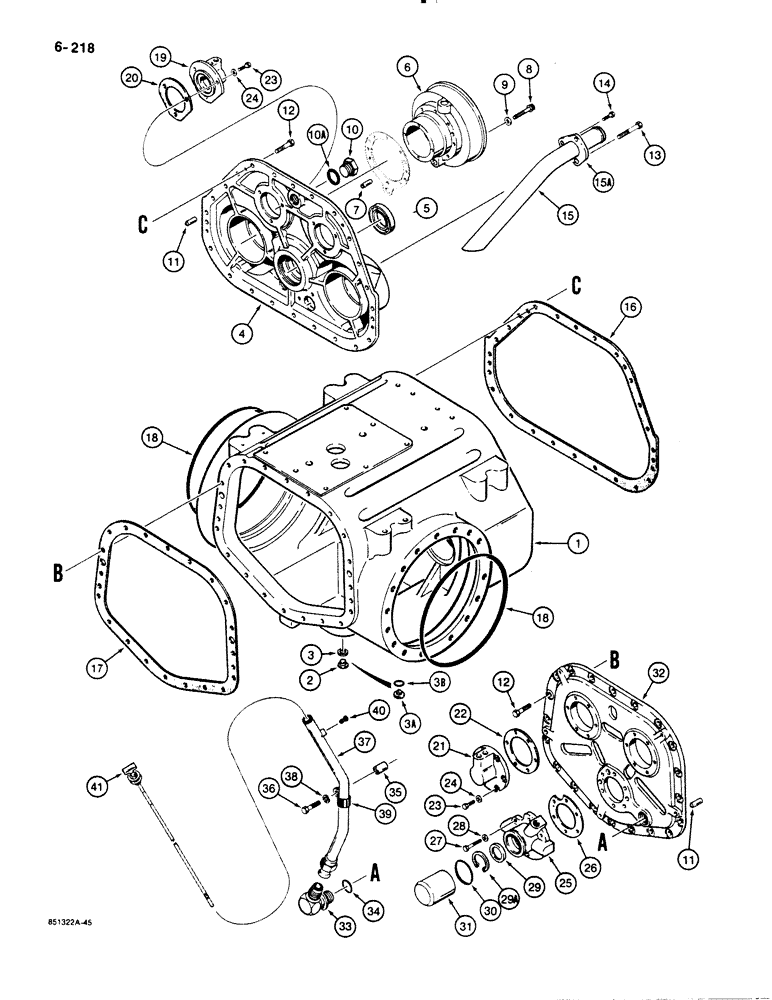

Запчасти Case 1450B (6-218) - TRANSMISSION HOUSING, COVERS, AND DIPSTICK, MODELS WITH FILL TUBE ON REAR COVER, IF USED (06) - POWER TRAIN

G109131

TRANSMISSION

ASSEMBLY - 1450B dozer models, assembly no longer available, order component parts as needed, for complete parts list see pages 6-219 through 6-255, 7-293 and 7-295

1шт.

G109132

TRANSMISSION

ASSEMBLY - 1455B loader models, assembly no longer available, order component parts as needed, for complete parts list see pages 6-219 through 6-255, 7-293 and 7-295

1шт.

1

G103460

HOUSING

- transmission

1шт.

2

A50014

PLUG

- drain, square socket, 3/4" - 16 NF, transmission housing, if used

1шт.

3

G102141

SEALING WASHER

WASHER - copper, seal, use with A50014 drain plug (ref. 2), if used

1шт.

Part of Seal Kit P/N G101829

1шт.

3a

9841223

PLUG,1-1/16" - 12 ORB

Transmission drain, if used, Incl. Ref. 3B Hex Soc, 1 1/16"-12 ORB

1шт.

3b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Drain plug (ref. 3A)

1шт.

G109165

COVER

ASSEMBLY - front, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - front, order G109165 cover assembly

1шт.

5

A50420

SEAL

OIL SEAL - input shaft

1шт.

Part of Seal Kit P/N G101829

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - brake, order G109165 cover assembly

2шт.

7

S64319

CALIPER

DOWEL - locating, brake housing

4шт.

8

166-70

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

SCREW - Ferry head, 7/16" - 14 NC x 2-1/4", grade 8

16шт.

9

A50689

WASHER

- flat, hardened

16шт.

10

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Front cover, if used, Includes: Ref. 10A Hex Hd, 1 1/16"-12 ORB

1шт.

10a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

11

S64319

CALIPER

DOWEL - locating, front and rear covers

4шт.

12

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

41шт.

13

26-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex head, 1/2" - 13 NC x 2-1/2", grade 8, suction tube, lower hole

1шт.

14

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex head, 3/8" - 16 NC x 1", grade 8, suction tube, upper holes

2шт.

15

G104177

TUBE

- oil suction

1шт.

15a

K262202

GASKET

SEALANT - form-in-place gasket, 10.3 fluid ounce tube, seals item 15 tube to front cover

1шт.

16

G35210

GASKET

- front cover

1шт.

Part of Seal Kit P/N G101829

1шт.

17

G35211

GASKET

- rear cover

1шт.

Part of Seal Kit P/N G101829

1шт.

18

S5871

O-RING,11.984" ID x 12.262" OD x 0.139"

- housing to final drive

2шт.

Part of Seal Kit P/N G101829

1шт.

19

A50671

CAP

COVER - front, clutch shaft

2шт.

20

R11428

GASKET

- front clutch shaft cover

2шт.

REF: 1A .010" UNDERSIZE CRANKSHAFT IS

1шт.

Part of Seal Kit P/N G101829

1шт.

21

A50672

CAP

COVER - rear, clutch shaft

2шт.

22

72223

BLOCK

SHIM - 0.020" (0.508 mm) thick

1шт.

Part of Seal Kit P/N G101829

1шт.

22

1342255C1

SHIM

- 0.007" (0.178 mm) thick

1шт.

Part of Seal Kit P/N G101829

1шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

18шт.

24

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

18шт.

Part of Seal Kit P/N G101829

1шт.

25

G110596

COVER

- rear, planetary output shaft

1шт.

26

G102757

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of Seal Kit P/N G101829

1шт.

26

G102758

SHIM,.007" Thk

(0.1778 mm) .007" Thk

1шт.

Part of Seal Kit P/N G101829

1шт.

27

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

28

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

6шт.

Part of Seal Kit P/N G101829

1шт.

29

A54107

OIL SEAL,38.1mm ID x 8mm Thk

OIL SEAL - planetary output shaft

1шт.

Part of Seal Kit P/N G101829

1шт.

29a

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, , oil seal, if used 2.062", Int, #206

1шт.

30

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- output shaft cover, winch models only, not part of transmission assembly, order separately

1шт.

31

G101696

PROTECTIVE COVER

COVER - guard, planetary output shaft

1шт.

32

G106230

PLATE

COVER - rear

1шт.

33

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- adjustable, 90 degree, fill tube, Includes: Ref. 34

1шт.

34

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk, Elbow

1шт.

35

G107798

SPACER

- filler tube mounting

1шт.

36

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

1шт.

37

R49837

TUBE,1.5" OD

- oil filler, rear cover

1шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

39

S86530

CLAMP

- filler tube

1шт.

40

D63543

BREATHER

- filler tube

1шт.

41

R49839

DIPSTICK

- transmission oil

1шт.

G101829

GASKET KIT

KIT seal, Includes: Ref. 3, 5, 16, 17, 18, 20, Ref. 22 P/N 72223, Ref. 22 P/N 22038, Ref. 24, Ref. 26 P/N G102757, Ref. 26 P/N G102758, Ref. 28 and 29, for complete kit see Figure 6-256

1шт.
