Запчасти Case 1450B (4-162) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

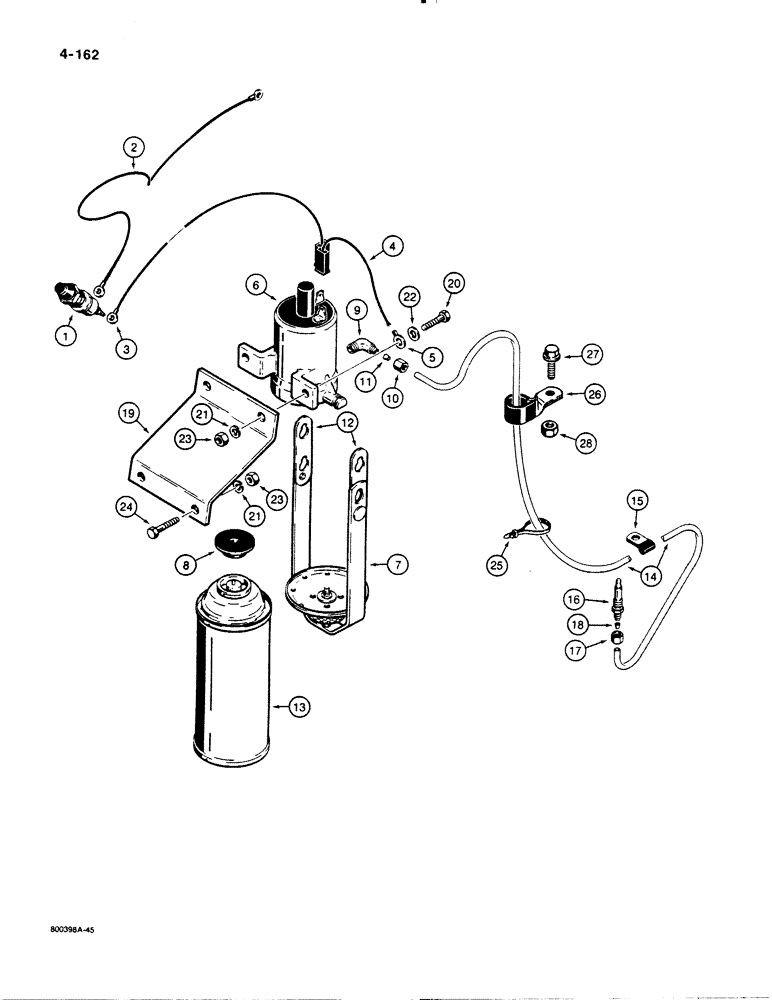

Схема запчастей Case 1450B - (4-162) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

D34924

SWITCH

- push button, on instrument panel

1шт.

2

F21342

ELECTRICAL WIRE

CABLE - switch to circuit breaker

1шт.

3

223-325

TERMINAL - eyelet, No. 10, buy locally

1шт.

4

R29794

CABLE

- switch to solenoid, see note below

1шт.

Make the following modifications to R29794 cable when installing. The wire to the switch is 8 feet long; cut to 21 inches long and add a No. 10 eyelet, Ref. 3, the ground wire is 12 inches long; cut to 8 inches long and add a 5/16" eyelet terminal, Ref. 5.

1шт.

5

223-326

TERMINAL - eyelet, 5/16", buy locally

1шт.

R29793

GLOW PLUG

SOLENOID ASSEMBLY - solenoid and bracket, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

SOLENOID - electrical

1шт.

7

D77648

BAIL

BRACKET - can

1шт.

8

395686R1

GASKET

- can

1шт.

9

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 10 & 11 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

10

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

11

222-650

SLEEVE,1/8" Tube, Comp

1шт.

12

R30812

LINK

- bracket, solenoid mounting

2шт.

13

B17072

START SPRAY FLUID

FLUID - starting, 15 fluid ouces (444 ml)

1шт.

14

R27253

PLASTIC-RUBBER TUBE,0.125" OD x 46" L

TUBE nylon, 46", 1168 mm, long, cut from S118583 tube, see below, solenoid to manifold

1шт.

Part of P/N S118583 Tube

1шт.

15

D43839

CLAMP

- tube, use intake manifold hardware

1шт.

L35955

NOZZLE CAP

INJECTOR ASSEMBLY - manifold, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

NOZZLE - injector

1шт.

17

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

18

222-650

SLEEVE,1/8" Tube, Comp

1шт.

19

R32981

BRACKET

- mounting, solenoid, Serial Range: bolt-firewall

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex head, 5/16" - 18 NC x 1", zinc plated

2шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

22

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

4шт.

24

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4", zinc plated

2шт.

25

L18331

CABLE TIE,375.9mm L, Nylon

STRAP - tie, replaces one ref. 15 clamp used on some models

1шт.

26

R43926

CLAMP

- twist, at air cleaner support

1шт.

27

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

S118583

LARGE HOSE

TUBE nylon, 25 ft., 762 cm, long, Includes: Ref. 14

1шт.

Выбрано товаров: 33
