Запчасти Case 1450B (4-156) - HORN (04) - ELECTRICAL SYSTEMS

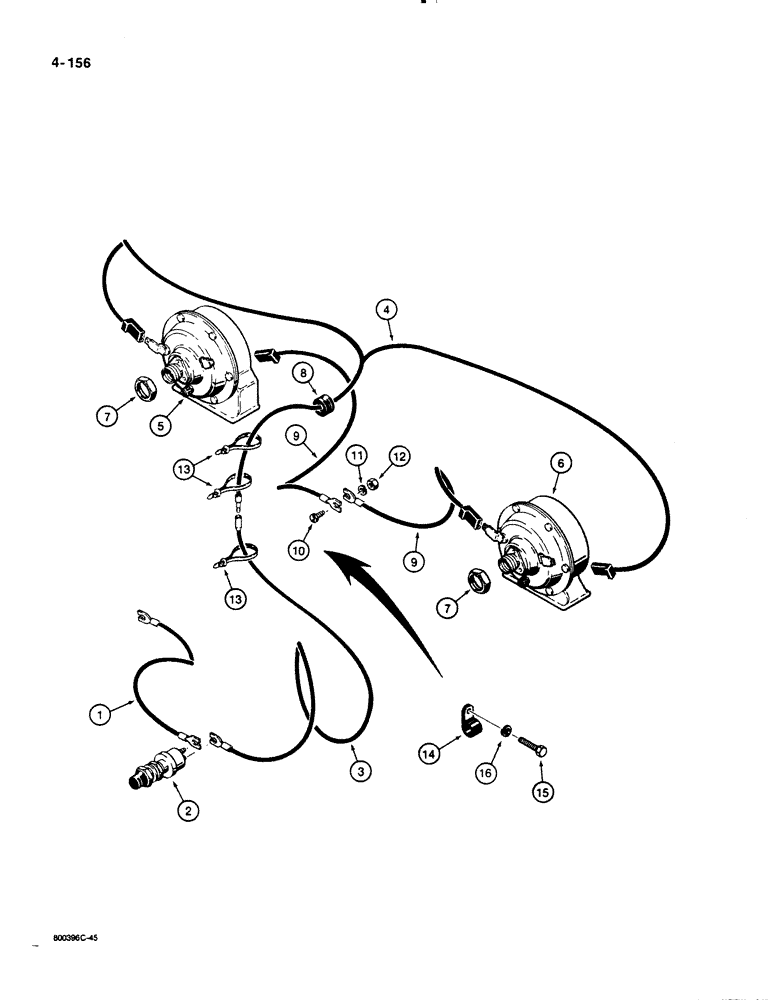

Схема запчастей Case 1450B - (4-156) - HORN (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

F21342

ELECTRICAL WIRE

WIRE - ground, horn switch to circuit breaker

1шт.

2

D34924

SWITCH

- horn, push button

1шт.

3

R46015

ELECTRICAL WIRE

WIRE - push button switch to horn wire, use existing clamps and tie straps along engine manifold and at circuit breaker mounting plate, see rear wiring figures

1шт.

Ref. 3 and 4 wires used together replace a single wire from push button to horns that was used on some models in production.

1шт.

4

R46014

ELECTRICAL WIRE

WIRE, Serial Range: --horns

1шт.

Ref. 3 and 4 wires used together replace a single wire from push button to horns that was used on some models in production.

1шт.

5

D77650

HORN

- left-hand, service replacement, includes bracket and nut, bracket not required

1шт.

6

R45461

HORN

- right-hand, service replacement, includes bracket and nut, bracket not required, Includes: Ref. 7

1шт.

7

L30866

LOCK NUT

- special, both horns

1шт.

8

A23870

GROMMET

- wire, at head lamp mounting bracket

1шт.

9

R36131

ELECTRICAL WIRE

WIRE - ground

2шт.

10

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - No. 10 - 24 NC x 1/2", plated

1шт.

11

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

12

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

14

49845

CLAMP

- horn wire, attach to water pump housing

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 18
