Запчасти Case 1450B (4-150) - CAB HARNESS AND WIRING TO DEFROSTER AND DOME LAMP, NON-PRESSURIZED CAB (04) - ELECTRICAL SYSTEMS

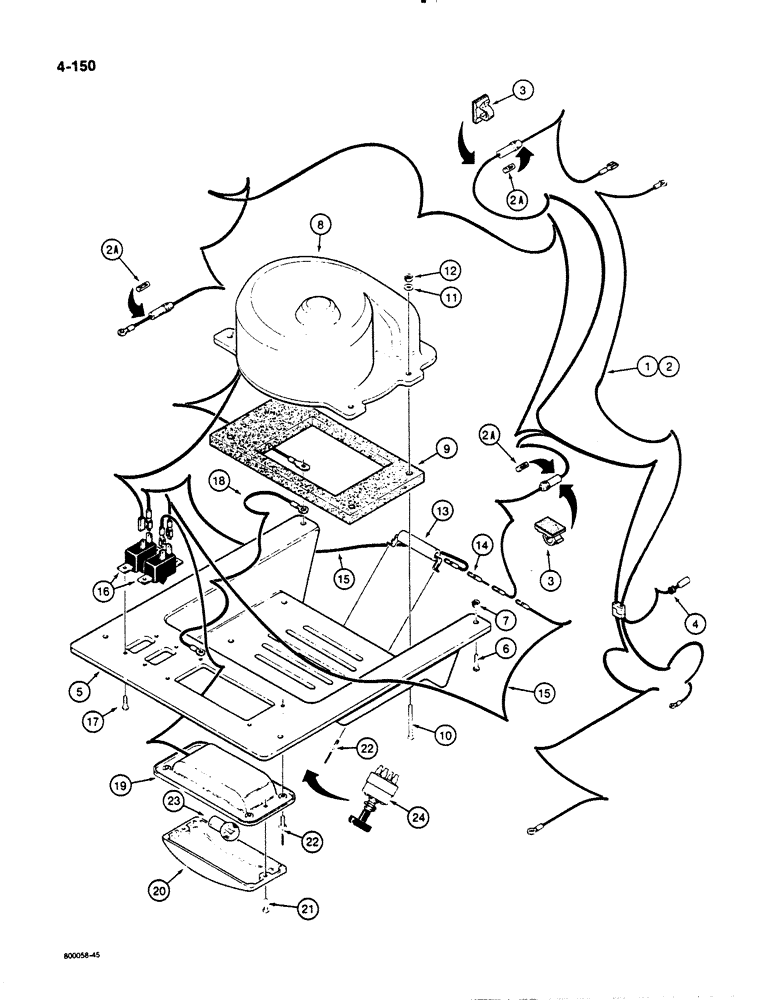

Схема запчастей Case 1450B - (4-150) - CAB HARNESS AND WIRING TO DEFROSTER AND DOME LAMP, NON-PRESSURIZED CAB (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

N6545

HARNESS

- cab, loader models only, Includes: Ref. 2A

1шт.

2

N6479

HARNESS

- cab, dozer models only, Includes: Ref. 2A

1шт.

2a

223-38

FUSE,3 Amp, Type 3AG

- N6545 and N6479 harnesses

3шт.

3

D71199

CLIP

- plastic, harness, at front of cab

2шт.

4

353-703

GROMMET

- rubber, harness at instrument panel

1шт.

5

R43117

COVER

- defroster

1шт.

6

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- machine, pan Phillips head, No. 10 - 24 NC x 5/8", plated

4шт.

7

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

8

F43618

DIFFUSER

DEFROSTER - cab

1шт.

9

F43619

SEAL

- defroster

1шт.

10

182-520

SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"

- machine, pan head slotted, No. 10 - 24 NC x 1-1/2", plated

4шт.

11

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

12

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

13

F43625

RESISTOR

- defroster, 25 watts

1шт.

14

A34863

ADAPTER

CONNECTOR - electrical

1шт.

15

A34860

ELECTRICAL WIRE

CABLE -, Serial Range: resistor-switch

2шт.

16

D75876

IGNITION SWITCH

SWITCH - defroster and dome lamp control

2шт.

17

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- machine, pan Phillips head, No. 6 - 32 NC x 1/2", black

4шт.

18

R39545

CABLE

- dome lamp, ground

1шт.

F89772

LAMP

ASSEMBLY - dome, replace 12 volt bulb in assembly with 24 volt bulb (ref. 23 below), Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - dome lamp

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - dome lamp

1шт.

21

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- machine, round head Phillips, No. 8 - 32 NC x 1/4"

2шт.

22

151-527

RIVET - pop, 5/32" x 1/2" Pop, 5/32" x .517"

6шт.

23

D71459

LAMP

BULB - 24 volt, No. 1591

1шт.

24

S225028

IGNITION SWITCH

SWITCH - front wiper

1шт.

Выбрано товаров: 26
