Запчасти Case 1450B (4-138) - FRONT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

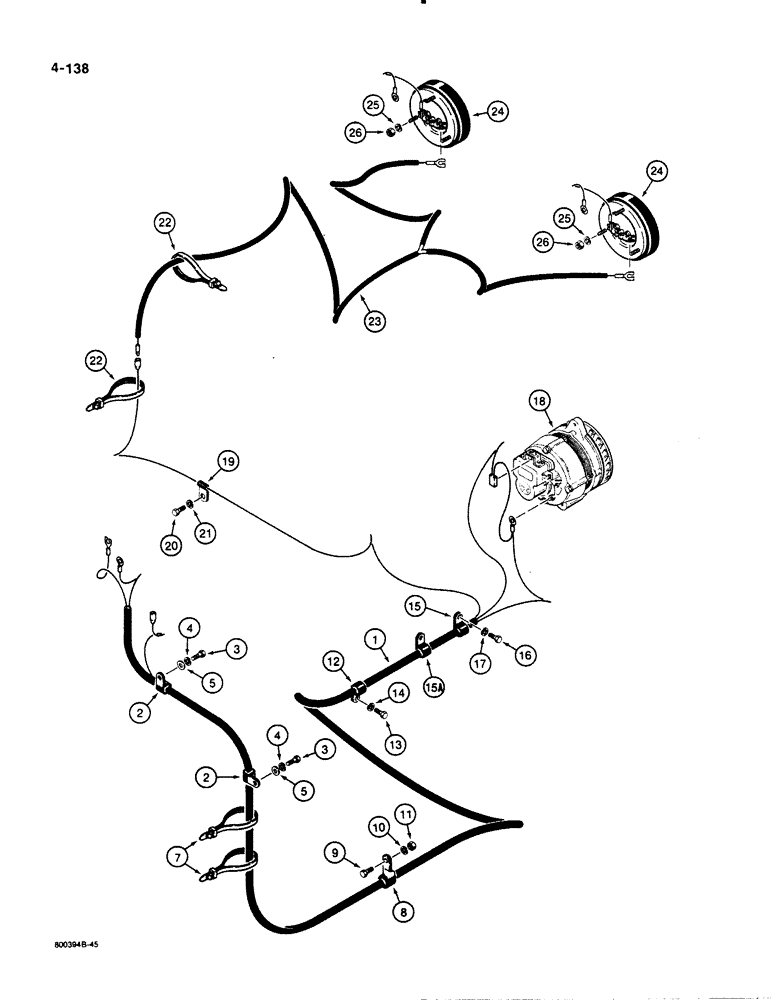

Схема запчастей Case 1450B - (4-138) - FRONT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

R43653

HARNESS

front

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

harness, at instrument panel

2шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

195-525

WASHER,3/8", SAE

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

tie, 15 inch, nylon

2шт.

8

R43926

CLAMP

harness, on firewall

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

12

S86530

CLAMP

harness, right-hand side of engine above starter

1шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

15

49838

CLAMP

harness, at alternator

1шт.

15a

49838

CLAMP

harness, use manifold hardware

1шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - for alternator options and mounting see Fig. 4-140, Motorola alternator shown

1шт.

19

49845

CLAMP

harness, top of engine, front, parts used on models w/ grille mounted headlamps, if used

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Parts used on models w/ grille mounted headlamps, if used Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Parts used on models w/ grille mounted headlamps, if used 3/8"

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

tie, 15 inch, nylon, parts used on models w/ grille mounted headlamps, if used

2шт.

23

R29239

HARNESS

front , parts used on models w/ grille mounted headlamps, if used

1шт.

24

R31131

LAMP

if used, parts list Fig. 4-148, parts used on models w/ grille mounted headlamps, if used

2шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Parts used on models w/grille mounted headlamps, if used #10

6шт.

26

129-17

NUT,Hex, #10 - 24

hex, No. 10 - 24 NC, plated, parts used on models w/ grille mounted headlamps, if used

6шт.

Выбрано товаров: 26
