Запчасти Case 1450B (4-126) - REAR ELECTRICAL WIRING, GROUP 30H TYPE BATTERIES AND CABLES TO STARTER (04) - ELECTRICAL SYSTEMS

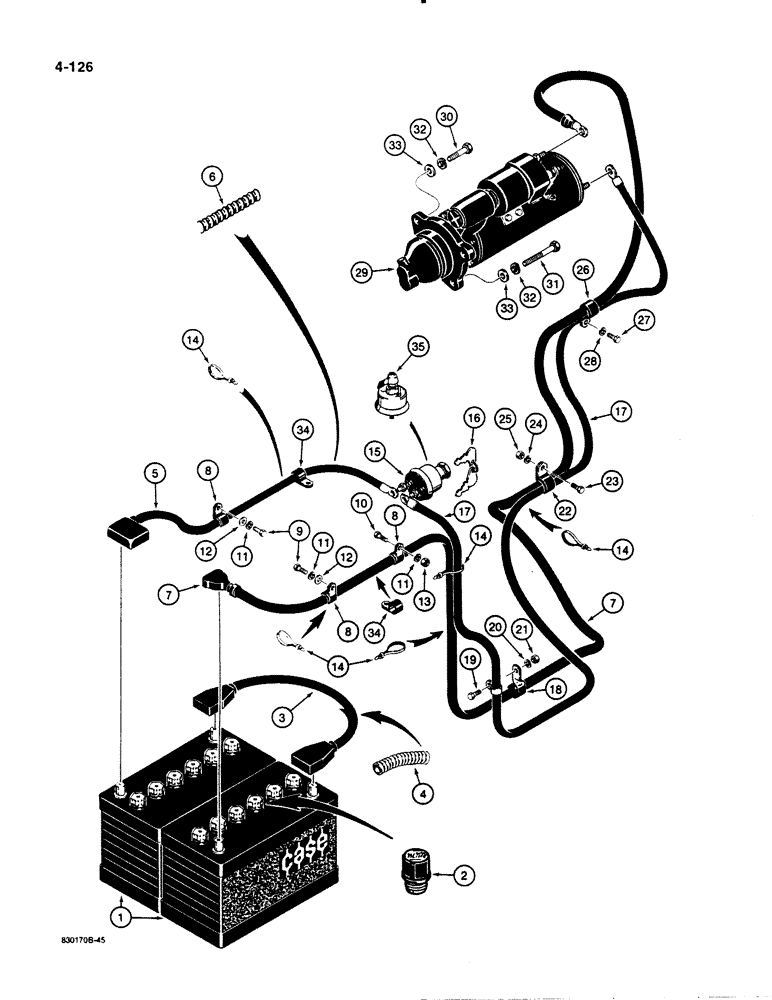

Схема запчастей Case 1450B - (4-126) - REAR ELECTRICAL WIRING, GROUP 30H TYPE BATTERIES AND CABLES TO STARTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

BHC30

BATTERY, DRY

BATTERY - 12 volt, Hybrid, dry, if used, see Fig. 4-124 for group 4D type batteries, see Fig. 4-128 for battery mounting

2шт.

2

A60553

CAP

- battery, non-spill, service replacement

6шт.

3

R47202

CABLE

- jumper, batteries

1шт.

4

R40777

CONDUIT

- jumper cable, batteries

1шт.

5

R47204

NEG BATTERY CABLE

CABLE - negative

1шт.

6

R44805

PACKAGE

CONDUIT - plastic, 39-3/16" long, cut from R44806 conduit, see below, negative battery cable

1шт.

7

R44953

CABLE PULLING GRIP

CABLE - positive

1шт.

8

R14668

CLAMP

- battery cables

2-3шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1-2шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2-3шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1-2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

R47440

SWITCH

- master disconnect, key type, no longer used, replace with R52278 switch (ref. 35 on this figure) and R46704 locking tab on heel plate (see Fig. 9-502); see instruction sheet 8-61640, Includes: Ref. 16

1шт.

16

R30074

SET

KEY - switch, if used

2шт.

17

R43506

CABLE PULLING GRIP

CABLE - battery ground, switch to starter, includes clamp

1шт.

18

R43926

CLAMP

- twist-type, positive battery cable

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

D30474

CLAMP

- cables, bolts to main frame below floor plates

1шт.

23

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

26

S86530

CLAMP

- cables, above starter, on circuit breaker mounting plate

1шт.

27

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

29

REF

INSTRUCTION

STARTER - for correct assembly and components see Figs. 4-96 - 4-116

1шт.

30

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

31

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

33

R24323

WASHER

- hardened, 1/2"

3шт.

34

51200320

CLAMP

- battery cables, use battery support mounting hardware, see Fig. 4-128 for hardware

1-2шт.

35

R52278

SWITCH

- master disconnect, lever type, replaces key switch

1шт.

R44806

LOOM

CONDUIT - plastic, 88-1/2" long

1шт.

Выбрано товаров: 36
