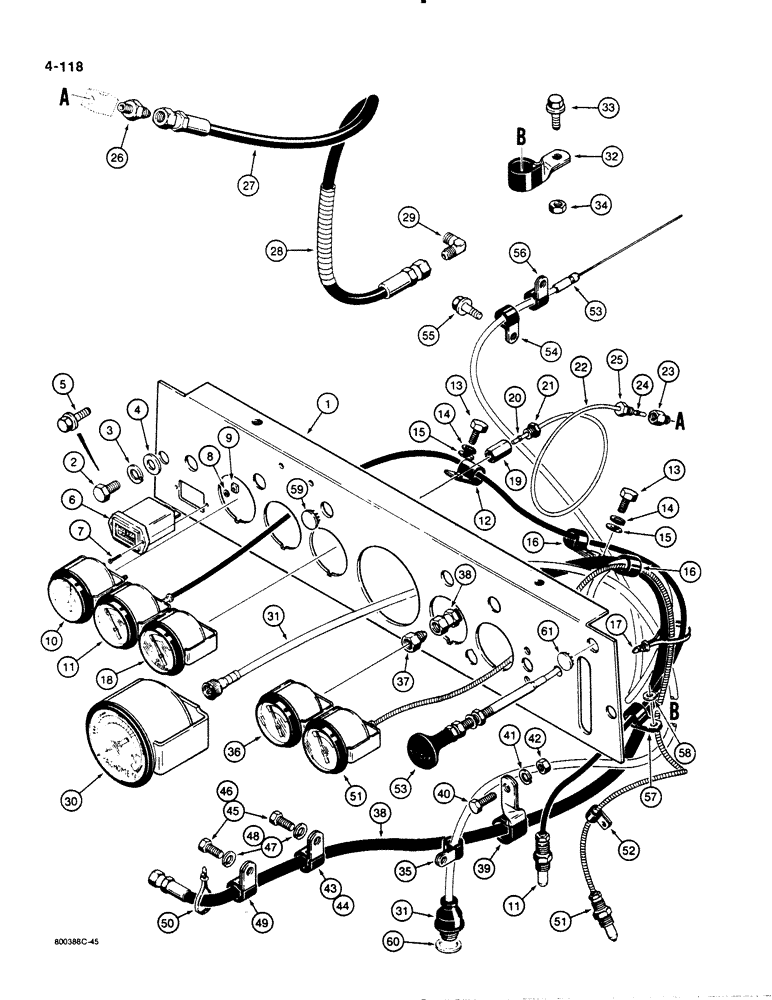

Запчасти Case 1450B (4-118) - INSTRUMENT PANEL AND GAUGES (04) - ELECTRICAL SYSTEMS

1

R44440

PANEL

INSTRUMENT PANEL - without decals, for decals see Figs. 9-564 and 9-566, if used

1шт.

1

R47637

PANEL, INSTRUMENTS

INSTRUMENT PANEL - with one-piece black decal, for decal see Fig. 9-564, if used

1шт.

1

R51369

INSTRUMENT PANEL - with one-piece brown decal, for decal see Fig. 9-564, if used

1шт.

2

113-279

BOLT

- hex head, 3/8" - 16 NC x 3/4", plated, if used

2шт.

If instrument panel decal has holes for instrument panel mounting, use hardware refs. 2 and 4, if instrument panel decal is cut out around instrument panel mounting hardware, use bolt 5.

1шт.

3

192-43

WASHER,3/8"

LOCK, , No longer used, not required 3/8"

2шт.

4

195-129

WASHER,3/8"

- flat, , plated, if used 3/8"

2шт.

If instrument panel decal has holes for instrument panel mounting, use hardware refs. 2 and 4, if instrument panel decal is cut out around instrument panel mounting hardware, use bolt 5.

1шт.

5

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flanged head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated, if used

2шт.

If instrument panel decal has holes for instrument panel mounting, use hardware refs. 2 and 4, if instrument panel decal is cut out around instrument panel mounting hardware, use bolt 5.

1шт.

6

L107631

METER

HOURMETER - engine

1шт.

7

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

MACHINE SCREW - No. 5 - 40 NC x 1/2"

2шт.

8

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

9

129-44

SQUARE NUT,Sq, #5-40

2шт.

10

R38643

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

11

R42267

ELECTRICAL GAUGE

GAUGE - engine temperature, includes cable

1шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose, engine temperature

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose, engine and torque converter temperature, transmission oil pressure, and fuel shutoff cables

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

R46054

OIL PRESSURE GAUGE

GAUGE - engine oil pressure

1шт.

D35091

PIPE FITTING

FITTING - compression, female, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - straight, female

1шт.

20

D37176

SLEEVE

- fitting

1шт.

21

D37362

TUBE NUT

COMPRESSION NUT - fitting

1шт.

22

D43836

TUBE

- nylon

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

FITTING - compression, male, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - straight, male

1шт.

24

D37176

SLEEVE

- fitting

1шт.

25

D37362

TUBE NUT

COMPRESSION NUT - fitting

1шт.

26

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, male

1шт.

27

D95117

HOSE

- engine oil pressure, 57" (1448 mm) long

1шт.

28

R12586

TAPE

SLEEVE - hose, engine oil pressure

1шт.

29

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degree

1шт.

30

R27126

TACHOMETER

- engine

1шт.

31

R29332

FLEXIBLE DRIVE SHAFT

CABLE - tachometer

1шт.

If tachometer cable, ref. 31, does not seat down tightly into its adapter on the engine, insert one ref. 60, flat washer into the adapter first.

1шт.

32

R43926

CLAMP

- tachometer cable, at muffler and air cleaner support bracket

1шт.

33

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange had, 3/8" - 16 NC x 3/4", grade 8, Teflon coated, replaces regular bolt and lock washer used on some models

1шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

35

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tachometer cable, use engine hardware

1шт.

36

R53929

GAUGE

- transmission oil pressure

1шт.

37

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER - straight

1шт.

38

R31108

HOSE

- transmission oil pressure, 111" (2819 mm) long

1шт.

39

R43926

CLAMP

- hose, transmisison oil pressure, on rear of firewall with front harness

1шт.

40

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

43

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- hose, transmission oil pressure, front, used 5/16" hardware, if used

1шт.

44

49838

CLAMP

- hose, transmission oil pressure, front, uses 3/8" hardware, if used

1шт.

45

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

2шт.

46

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

47

92-5

LOCK WASHER,5/16"

if used 5/16"

2шт.

48

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

49

49774

CLAMP

- hose, transmission oil pressure, rear

1шт.

50

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

51

R54145

GAUGE

- temperature, torque converter, includes cable

1шт.

52

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- tube, torque converter temperature, use torque converter mounting hardware

1шт.

53

R42035

CONTROL

- engine shutoff, fuel

1шт.

54

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- tube, engine shutoff cable, rear left-hand side of engine

1шт.

55

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated, replaces regular bolt and lock washer used on some models

1шт.

56

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tube, shutoff cable at fuel shutoff lever

1шт.

57

51200330

CLAMP

- hose, engine temperature

1шт.

58

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

1шт.

59

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16" ole size

1шт.

60

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

1шт.

If tachometer cable, ref. 31, does not seat down tightly into its adapter on the engine, insert one ref. 60, flat washer into the adapter first.

1шт.

61

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8", used on models without a cab, if used

1шт.
