Запчасти Case 1450B (4-116) - STARTER SOLENOID ASSEMBLY (04) - ELECTRICAL SYSTEMS

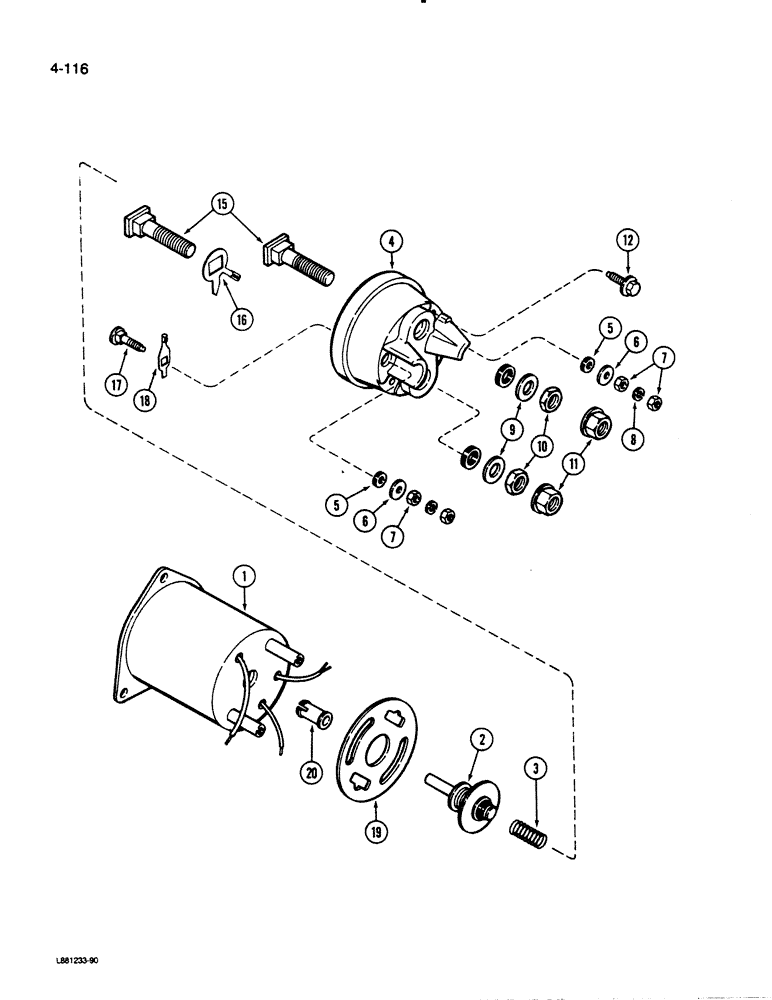

Схема запчастей Case 1450B - (4-116) - STARTER SOLENOID ASSEMBLY (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A49774

SWITCH

SOLENOID ASSEMBLY - starter, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - solenoid (Order A49774)

1шт.

2

A49566

CONTACTOR

- solenoid

1шт.

3

D32499

SPRING

- return, contact

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - solenoid (Order A49774)

1шт.

5

A42084

INSULATOR

- terminal, rubber

2шт.

6

A49560

WASHER

- flat, terminal

2шт.

7

129-667

NUT,#10-32, LH

3шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

9

195-2067

WASHER,33/64" x 7/8" x .065"

- flat, 1/2 x 7/8 x 1/16 inch

2шт.

10

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

11

A47890

NUT

NUT - hex flange special

2шт.

12

A49571

CAPTIVE WASHER SCREW,Hex, #10 - 32 x 0.62"

SCREW ASSEMBLY - retainer, cover

2шт.

15

NSS

NOT SOLD SEPARAT

STUD - terminal

2шт.

16

NSS

NOT SOLD SEPARAT

LOCK - terminal

1шт.

17

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

18

NSS

NOT SOLD SEPARAT

LOCK - terminal

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - insulator

1шт.

20

NSS

NOT SOLD SEPARAT

BUSHING - shaft, contact

1шт.

Выбрано товаров: 19
