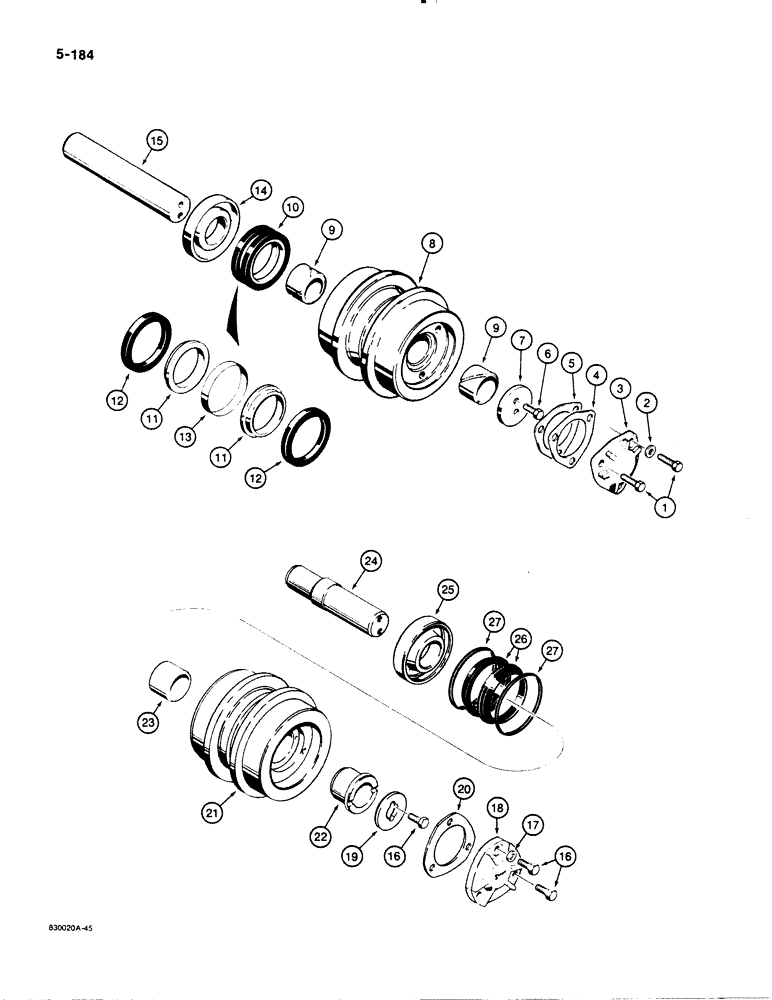

Запчасти Case 1450B (5-184) - CARRIER ROLLER, CASE-MADE CARRIER ROLLER - R28291, FOR ID: SEE ITEM 3 OF ILLUSTRATION (11) - TRACKS/STEERING

R28291

CARRIER

ROLLER ASSEMBLY - assembly no longer available, replace with R33608 roller assembly below (Requires 2 - 4), Includes: Ref. 1 - 15

2-4шт.

1

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

2

D35288

WASHER

copper

1шт.

3

R29288

COVER ASSY

roller

1шт.

4

D30383

SHIM,.005" Thk

(.127 mm), Blue .005" Thk

1шт.

5

D30384

SHIM,.010" Thk

(Brown) (0.254 mm) .010" Thk

1шт.

6

26-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex head, 1/2" - 13 NC x 1", grade 8

2шт.

7

R29259

WASHER

RETAINER - shaft

1шт.

8

R28292

HUB CARRIER

roller

1шт.

9

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

split

2шт.

10

R39273

SEAL

ASSEMBLY - face, Includes: Ref. 11 - 13 and kit

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - split

2шт.

D36826

SEAL KIT

repair

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

14

D35265

COLLAR

BUSHING - thrust

1шт.

15

R28294

SHAFT

roller

1шт.

R33608

ROLLER

ASSEMBLY - carrier (Requires 2 - 4), Includes: Ref. 16 - 27

2-4шт.

16

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 30 mm, thread to head, class 8.8, plated, Intertrac carrier roller-R33608 for ID: see Ref 18 of illustration

5шт.

17

D35288

WASHER

copper, intertrac carrier roller-R33608 for id: see ref. 18 of illustration

1шт.

18

R33602

CAP

COVER - intertrac carrier roller-R33608 for id: see ref. 18 of illustration

1шт.

19

R33601

RETAINER

shaft, intertrac carrier roller-R33608 for id: see ref. 18 of illustration

1шт.

20

R33606

GASKET

cover, intertrac carrier roller-R33608 for id: see ref. 18 of illustration

1шт.

R33610

HUB CARRIER

ASSEMBLY - intertrac carrier roller-R33608 for id: see ref. 18 of illustration, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

HUB - roller, intertrac carrier roller-R33608 for id: see ref. 18 of illustration

1шт.

22

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

flanged, hub, outer, intertrac carrier roller-R33608 for id: see ref. 18 of illustration

1шт.

23

R33597

BUSHING

hub, inner, intertrac carrier roller-R33608 for id: see ref. 18 of illustration

1шт.

R33612

SHAFT

ASSEMBLY - intertrac carrier roller-R33608 for id: see ref. 18 of illustration, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

SHAFT - roller, intertrac carrier roller-R33608 for id: see ref. 18 of illustration

1шт.

25

R33599

RETAINER

seal, intertrac carrier roller-R33608 for id: see ref. 18 of illustration

1шт.

R33607

SEAL

ASSEMBLY - face, intertrac carrier roller-R33608 for id: see ref. 18 of illustration, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - rubber, intertrac carrier roller-R33608 for id: see ref. 18 of illustration

2шт.

27

N6847

O-RING,75mm ID x 8mm Width

seal, intertrac carrier roller-R33608 for id: see ref. 18 of illustration

2шт.
