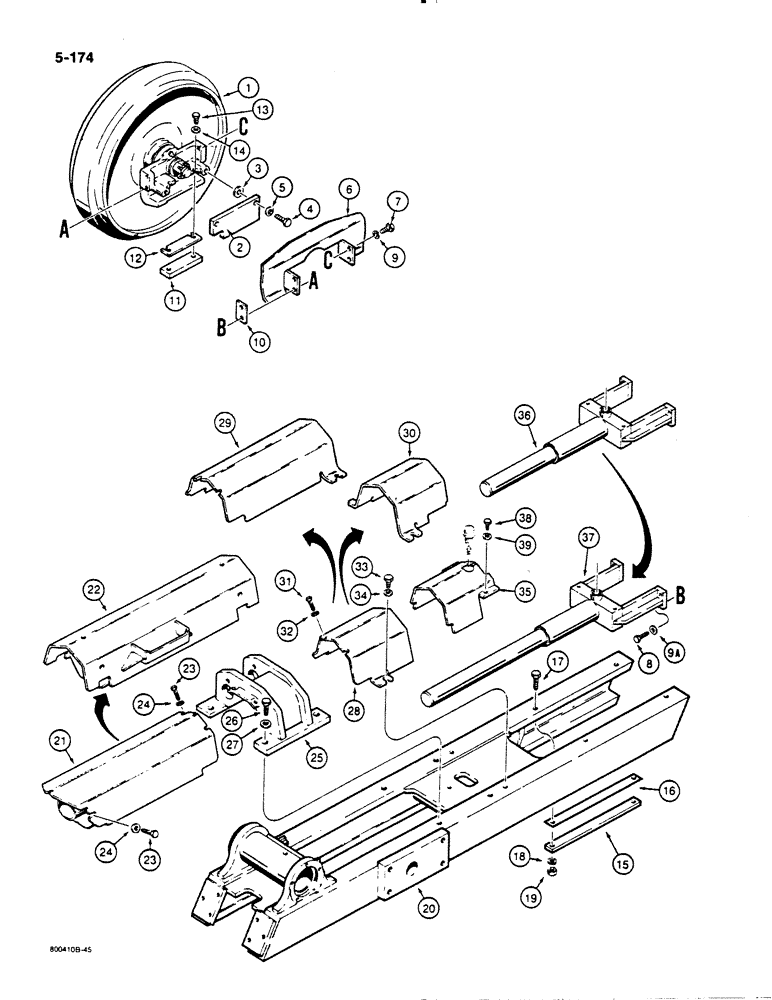

Запчасти Case 1450B (5-174) - IDLER AND RECOIL SYSTEM MOUNTING (11) - TRACKS/STEERING

1

REF

INSTRUCTION

IDLER ASSEMBLY - track, for correct assembly and components see Figs. 5-180 and 5-182

2шт.

2

R44516

PLATE

- thrust, idler

4шт.

3

D35268

SHIM,1/32" Thk

Idler thrust plate 1/32" Thk

1шт.

4

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex head, 3/4" - 10 NC x 1-3/4", grade 8

8шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

8шт.

6

R43739

GUARD

- idler, if used

1шт.

Ref. 6 guard shown on this figure is not required with R52486 idler assembly on Figure 5-182.

1шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

8

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex head, 1/2" - 13 NC x 1-3/4", grade 8, use with Loctite 242

8шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

8шт.

9a

R24323

WASHER

- flat, 1/2", hardened, replaces lock washer used on some models

8шт.

10

R37875

SHIM,0.813mm Thk

Track adjuster yoke 0.813mm Thk

1шт.

11

R52679

PLATE

- wear, idler, 1-9/16" (40 mm) wide, replaces R40793 wear plate, 2" (50 mm) wide, used on some models

4шт.

12

R40783

SHIM

- idler wear plate

1шт.

13

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

14

R24323

WASHER

- flat, 1/2", hardened

8шт.

15

R40782

PLATE

BAR - wear, idler

4шт.

16

R25691

SHIM

- wear bar, .030" (0.762 mm) thick

1шт.

17

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

18

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

19

129-107

NUT,5/8"-11, G5

8шт.

20

REF

INSTRUCTION

TRACK FRAME - see Figs. 5-166 - 5-170 for correct track frames

2шт.

21

R43616

HOUSING

- recoil, 74" (1880 mm) gauge dozer models

2шт.

21

R43617

HOUSING

- recoil, 78" (1981 mm) gauge LGP dozer models

2шт.

22

R43621

HOUSING

- recoil, left-hand, loader models, not shown

1шт.

22

R43622

HOUSING

- recoil, right-hand, loader models

1шт.

23

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex head, 5/8" - 11 NC x 1-3/4", grade 8, use with Loctite 242

8шт.

24

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

8шт.

25

R46216

GUARD

BRACKET - mounting, equalizer beam

2шт.

26

26-1632

BOLT,Hex, 1" - 8 x 2", Gr 8

- hex head, 1" - 8 NC x 2", grade 8

8шт.

27

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1", hardened

8шт.

28

R43679

COVER

- track adjuster, left-hand, 74" (1880 mm) gauge dozer models, not shown

1шт.

28

R43683

GUARD

COVER - track adjuster, right-hand, 74" (1880 mm) gauge dozer models

1шт.

29

R43613

COVER

- track adjuster, left-hand, 78" (1981 mm) gauge LGP dozer models, not shown

1шт.

29

R43614

COVER

- track adjuster, right-hand, 78" (1981 mm) gauge LGP dozer models

1шт.

30

R43618

COVER

- track adjuster, loader models, left-hand and right-hand

2шт.

31

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex head, 5/8" - 11 NC x 1-3/4", grade 8, dozer models only, use with Loctite 242

4шт.

32

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened, dozer models only

4шт.

33

113-700

BOLT,Hex, 3/4" - 10 x 1", Gr 5

4шт.

34

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4" hardened

4шт.

35

R43684

GUARD

COVER - track adjuster, if used

2шт.

36

R52132

ADJUSTER

TRACK ADJUSTER ASSEMBLY - loader and 74" (1880 mm) gauge dozer models, parts list Fig. 5-178

2шт.

37

R43673

STIRRUP

TRACK ADJUSTER ASSEMBLY - 78" (1981 mm) gauge LGP dozer models, parts list Fig. 5-178

2шт.

38

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

39

R24718

WASHER

- flat, 1/2", hardened

4шт.
