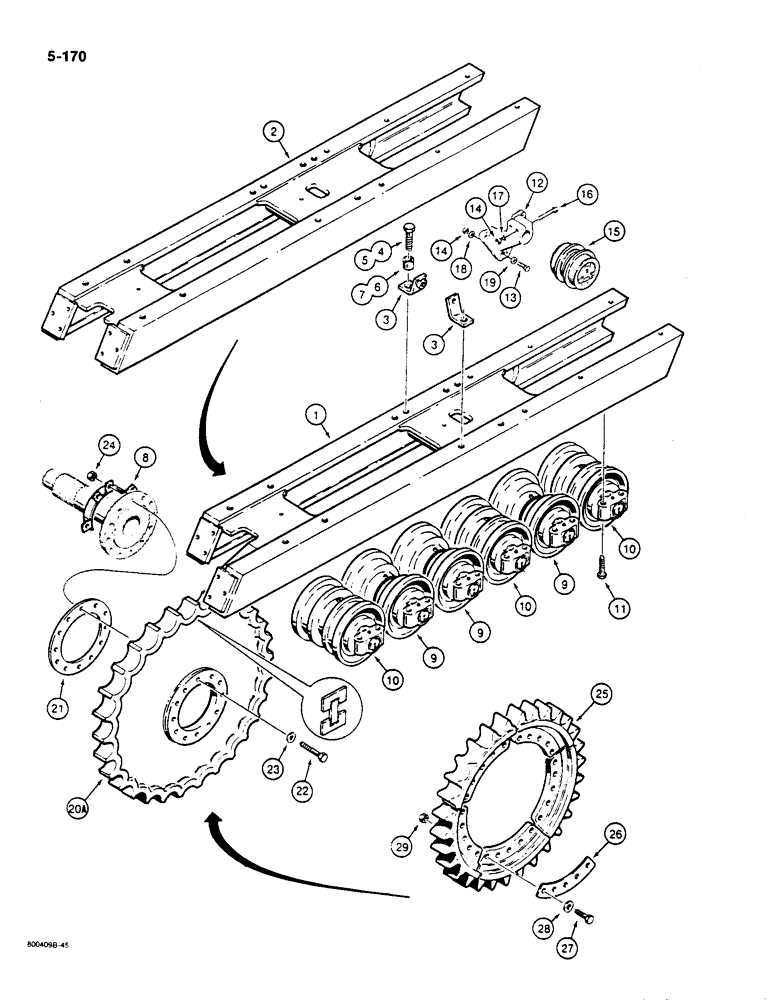

Запчасти Case 1450B (5-170) - TRACK FRAME, SPROCKET, AND ROLLERS, LOADER MODELS (11) - TRACKS/STEERING

1

R42004

FRAME

TRACK FRAME - right-hand, outer channel longer than inner, no longer available, order R46611 track frame (ref. 2) and correct rear track guards (if used) on Fig. 5-190

1шт.

1

R42003

FRAME

TRACK FRAME - left-hand, outer channel longer than inner, not shown, no longer available, order R46611 track frame (ref. 2) and correct rear track guards (if used) on Fig. 5-190

1шт.

2

R46611

FRAME

TRACK FRAME - right-hand and left-hand channels of equal length, if used

2шт.

3

R43602

BRACKET

- support, recoil housing

8шт.

4

13-1660

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

Used with R29162 spacer (ref. 6), if used Hex, 1"-8 x 3 3/4", G5

20шт.

5

26-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

- hex head, 1" - 8 NC x 3-1/2", grade 8, used with R46879 spacer (ref. 7), if used

20шт.

6

R29162

BUSHING

SPACER - mounting, 1-1/4" (32 mm) long, no longer available, replace with R46879 spacer (ref. 7) and 26-1656 bolt (ref. 5)

20шт.

7

R46879

SPACER

- mounting, 1" (25 mm) long

20шт.

8

R36703

GUARD

- sprocket seal, if used

4шт.

9

REF

INSTRUCTION

TRACK ROLLER - single flange, for correct assembly and components see Fig. 5-186 or 5-188

6шт.

10

REF

INSTRUCTION

TRACK ROLLER - double flange, for correct assembly and components see Fig. 5-186 or 5-188

6шт.

11

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

Use with Loctite 242 Hex, 3/4"-10 x 3 1/4", G5

48шт.

12

R43229

BRACKET

- carrier roller

2шт.

13

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8" - 11 NC x 2-1/2", grade 8, use with Loctite 242

6шт.

14

25-1010

NUT,5/8"-11, G5

10шт.

15

REF

INSTRUCTION

CARRIER ROLLER - track, for correct assembly and components see Fig. 5-184

2шт.

16

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex head, 5/8" - 11 NC x 3-1/2"

4шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

D35268

SHIM,1/32" Thk

Carrier roller bracket, No longer used 1/32" Thk

1шт.

19

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

6шт.

20

R42788

DRIVE SPROCKET

SPROCKET - one-piece, Case-made, use with standard sealed track chain only (see Fig. 5-192 or 5-194), if used, not shown

2шт.

20a

R52261

DRIVE SPROCKET

SPROCKET - one-piece, Intertrac (identify by "I" on sprocket surface, see illustration), may be used with standard sealed track chain (see Fig. 5-192 or 5-194) or Case Lubricated Track chain with split master links (see Fig. 5-196), if used

2шт.

21

R27241

SHIM,1/32" Thk

Sprocket 1/32" Thk

1шт.

22

R31277

BOLT

- hex head, 3/4" - 10 NC x 4"

24шт.

23

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

24шт.

24

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

24шт.

25

R48199

SEGMENT

SECTION - sprocket, may be used with standard sealed or Case Lubricated Track chain (see Figs. 5-192 - 5-196)

10шт.

26

R43355

SHIM

- section, sprocket

1шт.

27

R39270

BOLT

- hex head, 3/4" - 10 NC x 3-1/4", grade 8, special

50шт.

28

R44685

WASHER,19.84mm ID x 41.148mm OD x 8.13mm Thk

- hardened

50шт.

29

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

50шт.

R2082-55

FRAMES track, special, with tie downs

1шт.

R48615

FRAME

right-hand

1шт.

R48616

FRAME

left-hand

1шт.

R48614

PLATE

TIE DOWN

1шт.
