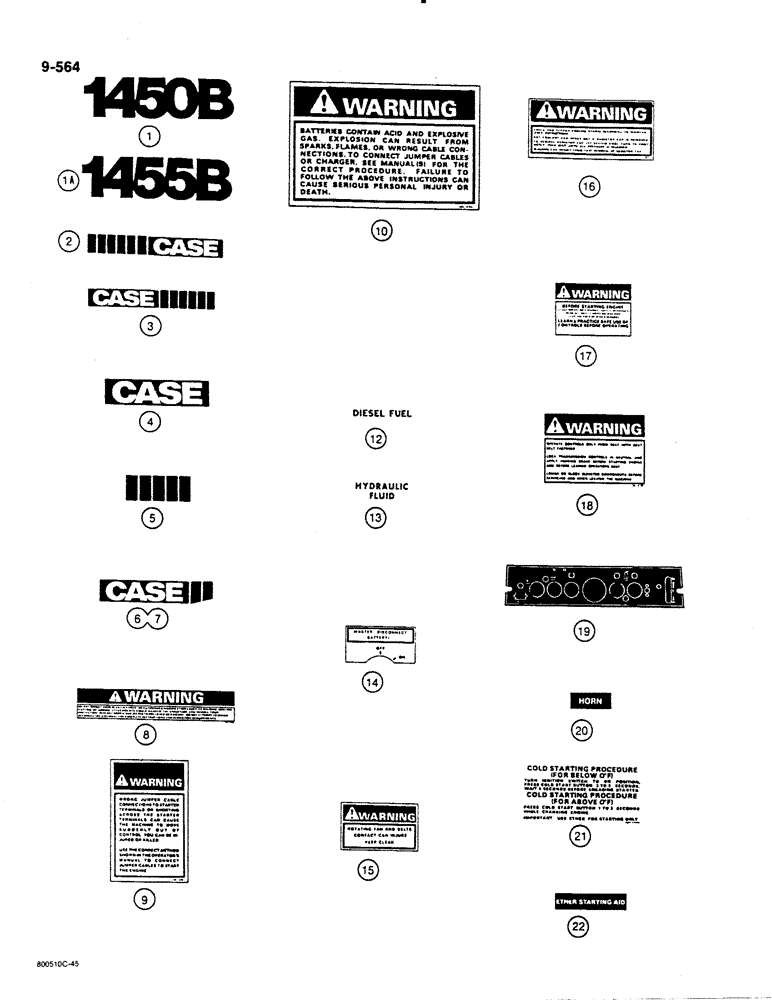

Запчасти Case 1450B (9-564) - DECALS (09) - CHASSIS/ATTACHMENTS

R43692

DECAL

KIT - includes black decals, also includes refs. on Fig. 9-566, if used, Includes: Ref. 1 - 19

1шт.

R48609

DECAL

KIT - includes brown decals, also includes refs. on Fig. 9-566, if used, Includes: Ref. 1 - 19

1шт.

1

321-5272

DECAL

- 1450B, black, if used

2шт.

1

R48491

DECAL

- 1450B, brown, if used

2шт.

1a

R49131

DECAL

- 1455B, loader models, brown, if used

2шт.

2

321-5276

DECAL

- Case, right-hand, black, if used

1шт.

2

R48429

DECAL

- Case, right-hand, brown, if used

1шт.

3

321-5277

DECAL

- Case, left-hand, black, if used

1шт.

3

R48430

DECAL

- Case, left-hand, brown, if used

1шт.

4

321-5273

DECAL

- Case, rear, black, if used

1шт.

4

R48428

DECAL

- Case, rear, brown, if used

1шт.

5

321-3123

DECAL

- treads, rear, black, if used

2шт.

5

R48488

DECAL

- treads, rear, brown, if used

2шт.

6

321-5274

DECAL

- Case, loader arm, right-hand, black, if used

1шт.

6

R48492

DECAL

- Case, loader arm, right-hand, brown, if used

1шт.

7

321-5275

DECAL

- Case, loader arm, left-hand, black, if used

1шт.

7

R48493

DECAL

- Case, loader arm, left-hand, brown, if used

1шт.

8

321-4192

DECAL

- Warning, ROPS modification

1шт.

9

321-6718

DECAL

- Warning, wrong jumper cable connections, at starter, replaces all previous jump start decals

1шт.

10

321-6714

DECAL

- Warning, batteries contain acid and explosive gas, replaces all previous battery warning decals

2шт.

12

321-230

DECAL

- Diesel Fuel, used on models with top fill tank, if used

1шт.

13

321-229

DECAL

- Hydraulic Fluid, used on models with top fill tank, if used

1шт.

14

321-2392

DECAL

- Master Disconnect

1шт.

15

321-3596

DECAL

- Warning, Rotating Fan and Belts

3шт.

16

321-6672

DECAL

- Warning, check and service cooling system

1шт.

17

321-3705

DECAL

- Warning, Before Starting Engine

1шт.

18

321-4188

DECAL

- Warning, operate controls only from seat

1шт.

19

R47220

DECAL

- instrument panel, black, if used

1шт.

19

R51640

DECAL

- instrument panel, brown, if used

1шт.

20

321-3294

DECAL

- horn, if used, may be part of ref. 19

1шт.

21

321-2946

DECAL

- ether starting aid, instructions, if used, may be part of ref. 19

1шт.

22

321-2435

DECAL

- Ether Starting Aid, if used, may be part of ref. 19

1шт.
