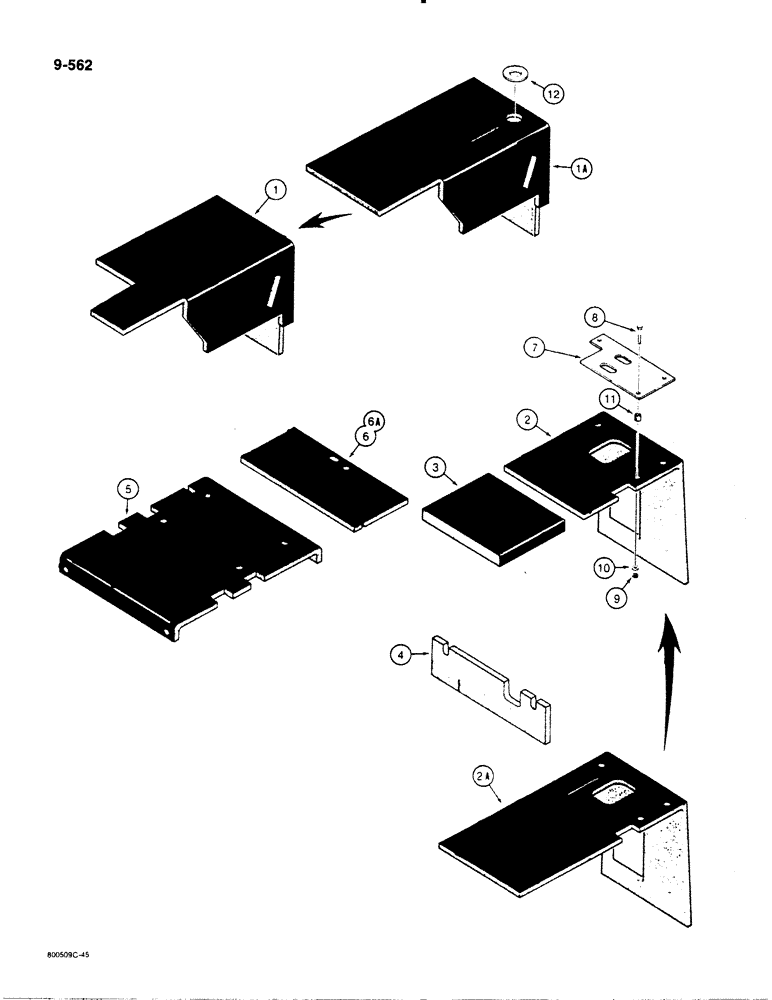

Запчасти Case 1450B (9-562) - CAB, NOISE REDUCTION PADS (09) - CHASSIS/ATTACHMENTS

1

R43803

PAD

- fuel tank, black, if used

1шт.

1

R48446

PAD

- fuel tank, brown, used on models with top fill fuel tank, if used

1шт.

1a

R51071

PAD

- fuel tank, brown, used on models with rear fill fuel tank, if used

1шт.

2

R43804

PAD

- hydraulic reservoir, black, front, if used

1шт.

2

R48447

PAD

- hydraulic reservoir, brown, front, used on models with top fill fuel tank, if used

1шт.

2a

R51072

PAD

- hydraulic reservoir, brown, one-piece, used on models with rear fill fuel tank, if used

1шт.

3

R43805

LADDER

PAD - cover, hydraulic reservoir, black, rear, if used

1шт.

3

R48442

PAD

- cover, hydraulic reservoir, brown, rear, if used

1шт.

4

R44808

PAD

- heel plate, black, if used

1шт.

4

R48458

PAD

- heel plate, brown, if used

1шт.

5

R44807

PAD

- seat plate, black, if used

1шт.

5

R48457

PAD

- seat plate, brown, if used

1шт.

6

R44809

PAD

- cover, battery, black, if used

1шт.

6

R48459

PAD

- cover, battery, brown, used on models with top fill tanks, if used

1шт.

6a

R52471

PAD

- cover, battery, brown, used on models with rear fill tanks, if used

1шт.

7

R48950

PLATE

- mounting, control decals

1шт.

8

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

3шт.

11

F21028

BUSHING

SPACER - mounting plate

3шт.

12

R52469

WASHER

- gasket, under fuel gauge, used on models with rear fill fuel tank

1шт.

345-44

ADHESIVE

- for attaching pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
