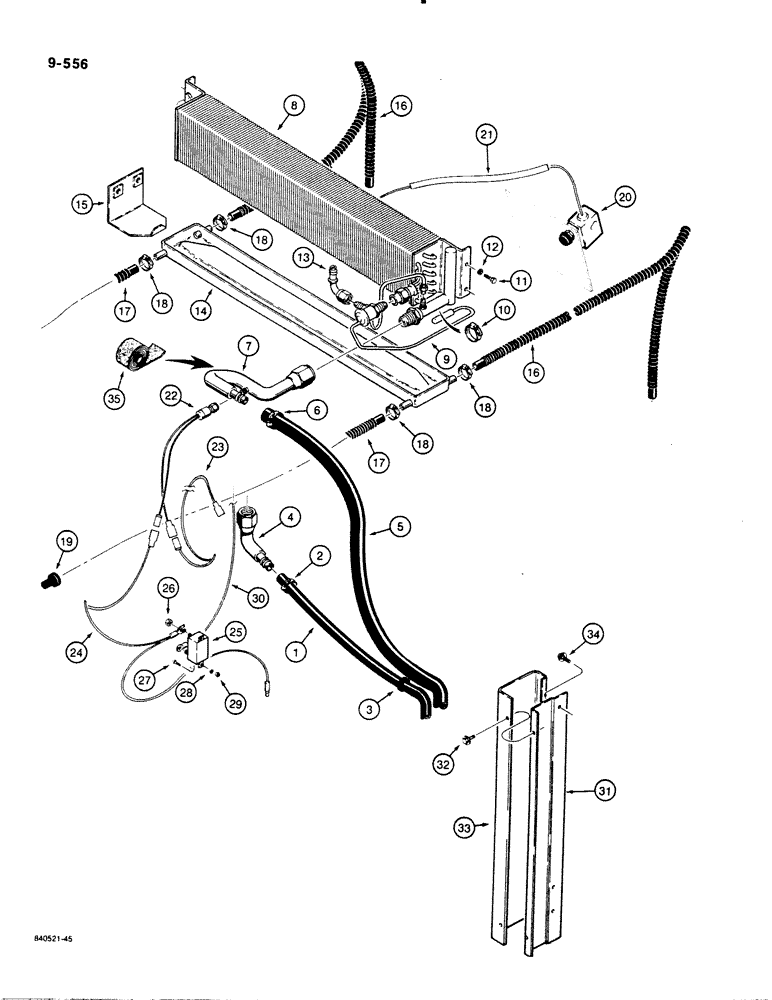

Запчасти Case 1450B (9-556) - PRESSURIZED CAB, AIR CONDITIONING SYSTEM - INSIDE CAB ROOF EVAPORATOR CORE & CONNECTIONS (09) - CHASSIS/ATTACHMENTS

1

R48820

HOSE

- 240-5/16" (6100 mm) long, supply, compressor to condenser, cut from S118832 hose, see below

1шт.

2

A65795

COLLAR CLAMP

CLAMP - hose

1шт.

3

353-482

PLUG

GROMMET - supply hose, 15/16"

1шт.

4

R45088

ELBOW

BARB FITTING -, Serial Range: elbow,-condenser

1шт.

5

R48824

A/C HOSE,15.88 mm ID x 5500.00 mm, SAE J51 Type A

Return, Evaporator core to compressor 15.88 mm ID x 5500.00 mm, SAE J51 Type A

1шт.

6

A65791

COLLAR CLAMP

CLAMP - return hose

1шт.

7

R49688

FITTING

TUBE - barb fitting, from evaporator core

1шт.

8

F44712

CORE

- evaporator

1шт.

9

F64389

VALVE

- expansion

1шт.

10

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - valve sensor to core

1шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

13

R45091

ELBOW

TUBE - barb fitting

1шт.

14

F44731

PAN

- condensation

1шт.

15

R44085

SUPPORT

- condensation pan

2шт.

16

REF

INSTRUCTION

HOSE - drain, front, 50" (1270 mm) long, cut from F64508, see below

2шт.

17

REF

INSTRUCTION

HOSE - drain, rear, 40" (1016 mm) long, cut from F64508, see below

2шт.

18

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- drain hose #4, 0.25/0.62 Type F Worm

4шт.

19

F44790

VALVE

END - rear drain hose, rubber

2шт.

20

L73646

SWITCH

- air conditioning control, see Fig. 4-152 for cab control panel and related parts

1шт.

21

F63719

TUBE

- cover, switch connector

1шт.

22

R48819

IGNITION SWITCH

SWITCH - low pressure

1шт.

23

R49637

ELECTRICAL WIRE

WIRE -, Serial Range: evaporator-compressor

1шт.

24

R50416

ELECTRICAL WIRE

WIRE - low pressure switch to circuit breaker and cab accessory wiring harness

1шт.

25

L105329

CIRCUIT BREAKER - 15 amp

1шт.

26

129-37

NUT,#10-32

2шт.

27

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

MACHINE SCREW - Phillips head, No. 8 - 32 NC x 3/8", plated

2шт.

28

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

29

129-16

NUT,#8-32

2шт.

30

R48838

ELECTRICAL WIRE

WIRE - circuit breaker to condenser blower motors

1шт.

31

R49735

SUPPORT

- hose cover

1шт.

32

121-20

BOLT,Hex Flg, 1/4"-20 x 1/2", Serr

2шт.

33

R49707

COVER

- heating and air conditioning hoses

1шт.

34

187-1061

SELF-TAP SCREW

- self-tapping, hex washer head, 1/4" - 20 x 3/8", plated

2шт.

35

A42902

SEALING STRIP

TAPE - cork, insulating, bulk roll, 2-1/2" (63 mm) wide x 1/8" (3 mm thick) x 30 ft (9144 mm) long, use on ref. 7 tube and on all exposed metal tubing around the core

1шт.

F64508

HOSE,0.43" ID x 100' Bulk

- drain 0.43" ID x 100' Bulk

1шт.

S118832

HOSE,0.41" ID

- Air Conditioning 0.41" ID

1шт.
