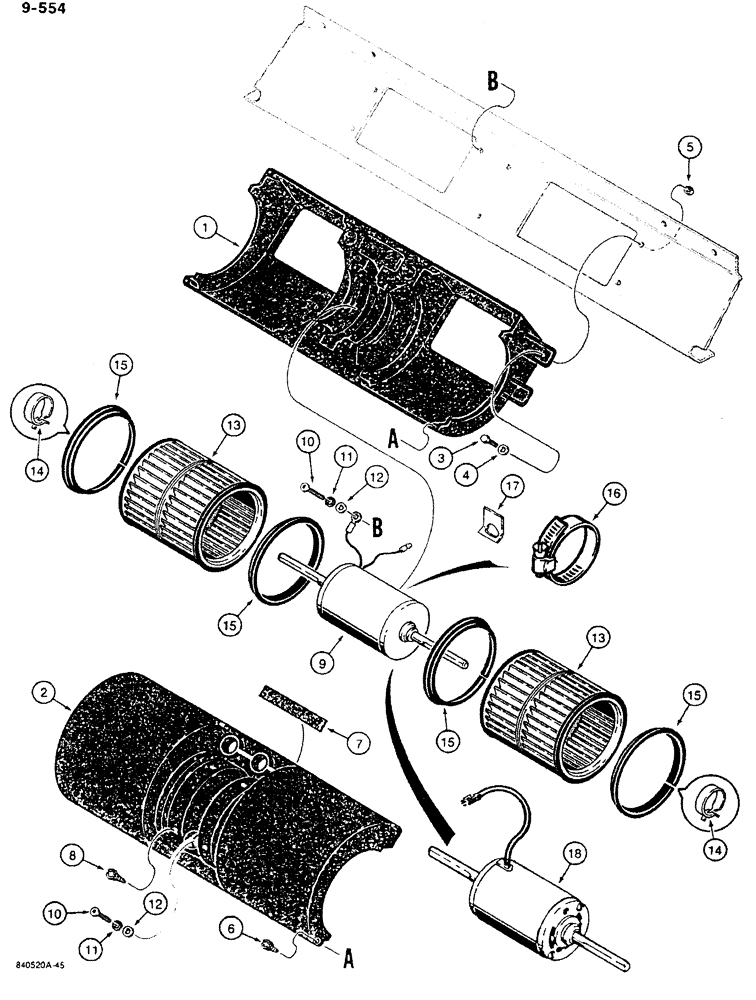

Запчасти Case 1450B (9-554) - PRESSURIZED CAB AIR CONDITIONING CONDENSER BLOWER ABOVE CAB ROOF (09) - CHASSIS/ATTACHMENTS

1

F64740

HOUSING

HOUSING - fans, lower

2шт.

2

F64741

HOUSING

HOUSING - fans, upper

2шт.

3

163-13

SCREW,Hex, #10 - 24 x 3/4"

MACHINE SCREW - hex head, No. 10 - 24 NC x 3/4", plated

8шт.

4

195-513

WASHER,#10

WASHER - flat, No. 10

8шт.

5

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

8шт.

6

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - pan head, self-tapping, No. 8 x 3/4", plated

16шт.

7

REF

INSTRUCTION

SEAL - foam, upper fan housing, 4" (102 mm) long, cut from F64119, see below, no longer used, replace with refs. 16 and 17

2шт.

For motor wiring connection see Figure 9-553

1шт.

8

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW - pan head, self-tapping, No.8 x 1", plated, motor mounting

8шт.

9

F96902

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with bullet type connector, no longer available, order A187600 motor (ref. 18) and A187699 adapter wire (see figure 9-553, ref. 11B)

2шт.

10

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - Phillips oval head, No. 10 - 16 x 3/4", zinc plated

6шт.

11

193-6

LOCK WASHER,Ext Tooth, #10

6шт.

12

195-513

WASHER,#10

WASHER - flat, No. 10, plated

6шт.

13

F64935

BLOWER,Fan

FAN - condenser blower

4шт.

14

F64936

CLAMP

CLAMP - steel spring, fan retaining

4шт.

15

F64739

RING

RING - plastic, fan retaining

8шт.

16

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adjustable, motor retaining

2шт.

17

R51563

CLIP,ELECTRICAL

CLIP - motor retaining clamp

2шт.

18

A187600

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal

2шт.

F64119

SEALING STRIP

SEAL - foam, bulk roll, 100 ft (3048 cm) long

1шт.

For motor wiring connection see Figure 9-553

1шт.
