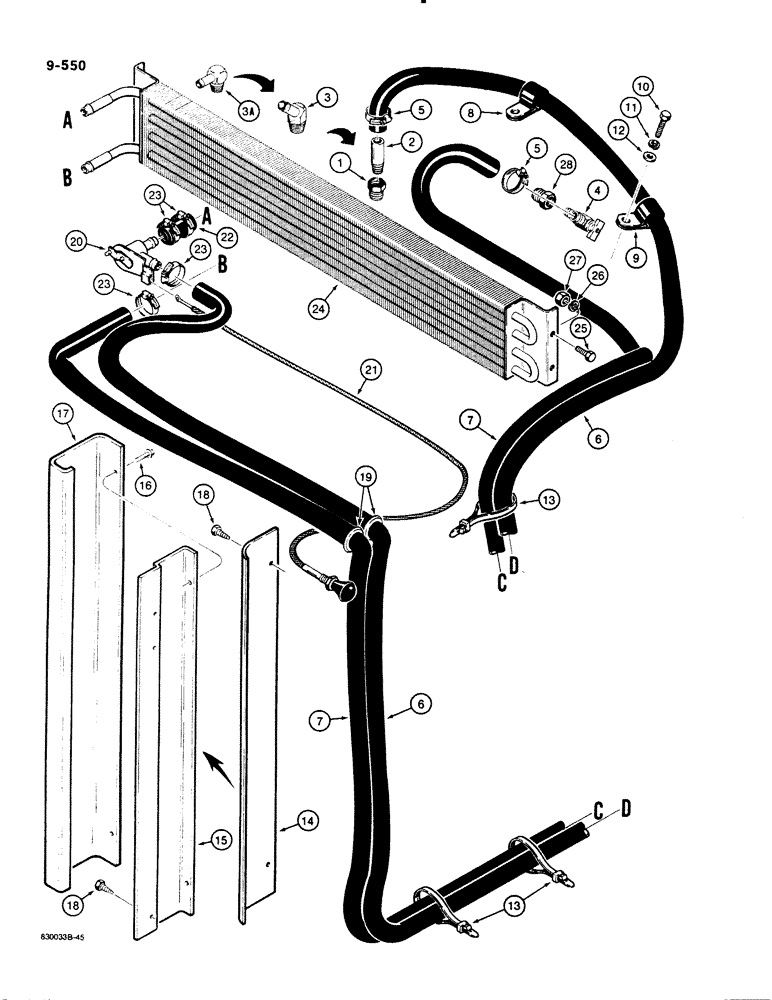

Запчасти Case 1450B (9-550) - PRESSURIZED CAB, HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" x 3/8", at water pump, used with ref. 2 nipple, no longer used, replace with ref. 3A fitting

1шт.

2

A19940

PIPE

NIPPLE - straight, 3/8" NPT, used with ref. 1 reducer, no longer used, replace with ref. 3A fitting

1шт.

3

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

at water pump, no longer used, Replace with ref. 3A fitting 45º, 5/8" Hose x 1/2" NPTF Beaded

1шт.

3a

R50454

FITTING

STEM FITTING - 90 degree, at water pump

1шт.

4

301803R1

SHUT-OFF VALVE

SHUTOFF VALVE - at manifold

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adjustable

2шт.

6

REF

INSTRUCTION

HOSE - 260" (6600 mm) long, heater return from flow control valve, cut from 97252C1

1шт.

7

REF

INSTRUCTION

HOSE - 232" (5900 mm) long, heater supply, cut from 97252C1

1шт.

8

49831

CLAMP

- hose, use hardware on right-hand side of muffler support

1шт.

9

49831

CLAMP

- on intake manifold

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

N7761

GUARD

COVER - heating hoses, used on models without air conditioning, if used

1шт.

15

R49735

SUPPORT

- hose cover, used on models with heating and air conditioning, if used

1шт.

16

121-20

BOLT,Hex Flg, 1/4"-20 x 1/2", Serr

2шт.

17

R49707

COVER

- heating and air conditioning hoses, if used

1шт.

18

187-1061

SELF-TAP SCREW

- self-tapping, hex washer head, 1/4" - 20 x 3/8", plated, used with either hose cover ref. 14 or 17

2шт.

19

353-482

PLUG

GROMMET - 1-3/16" (30 mm) diameter

2шт.

20

F63865

VALVE

FLOW CONTROL VALVE - heater ( replaced R63865 )

1шт.

21

F44755

CABLE

- heater control

1шт.

22

REF

INSTRUCTION

HOSE - flow control valve to heater core, 2" (51 mm) long, cut from 97252C1

1шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adjustable, hoses

4шт.

24

F45204

HEAT-EXCHANGER

CORE - heater, interchangeable with F45210 heater core

1шт.

25

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

28

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" x 3/8", at shutoff valve at manifold

1шт.

29

R46826

DECAL

- Heater Valve Control, on hose cover, see Fig. 9-566 for decal, not shown

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
