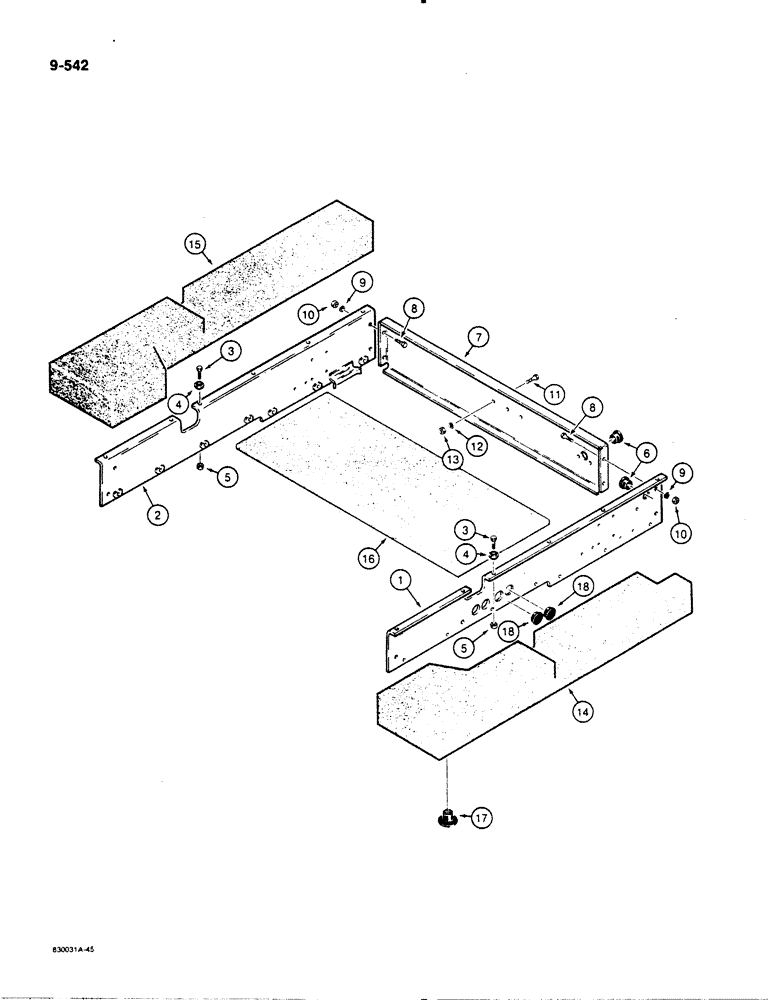

Запчасти Case 1450B (9-542) - PRESSURIZED CAB, ROOF PADS AND ACCESSORY MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

R44073

PANEL

BRACKET - mounting, right-hand

1шт.

2

R44075

PANEL

BRACKET - mounting, left-hand

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

4

F42778

WASHER

- special

12шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

12шт.

6

353-478

PLUG

GROMMET - 1" (25 mm) diameter hole

2шт.

7

R44077

D PANEL

BRACKET - front

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

14

R44204

INSULATOR

PAD - vinyl covered, right-hand, black, if used

1шт.

14

R48455

PAD

- vinyl covered, right-hand, brown, if used

1шт.

15

R44205

INSULATOR

PAD - vinyl covered, left-hand, black, if used

1шт.

15

R48456

PAD

- vinyl covered, left-hand, brown, if used

1шт.

16

R44171

NOISE PROTECTION

PAD - foam, heat barrier, attaches to cab roof above heater and/ or air conditioning cores

1шт.

17

R37161

RETAINER

- vinyl covered pads, black, if used

8шт.

17

N9901

RETAINER

- vinyl covered pads, brown, if used

8шт.

18

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16" hole size, used on models without air conditioning, if used

2шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
