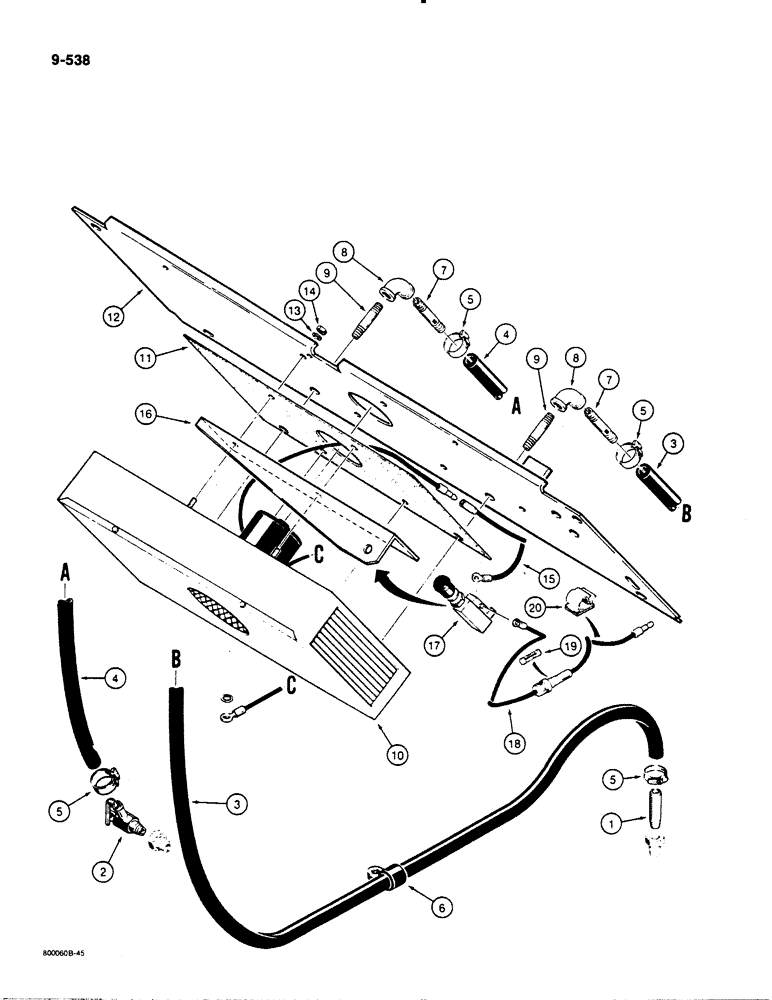

Запчасти Case 1450B (9-538) - NON-PRESSURIZED CAB, HEATER CIRCUIT (09) - CHASSIS/ATTACHMENTS

1

A19940

PIPE

NIPPLE - straight, 3/8"

1шт.

2

301803R1

SHUT-OFF VALVE

SHUTOFF VALVE - hose, at water pump

1шт.

3

REF

INSTRUCTION

HOSE - water pump to heater, 51" (1295 mm) long, cut from 97252C1

1шт.

4

REF

INSTRUCTION

HOSE - heater to manifold, 66" (1676 mm) long, cut from 97252C1

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

4шт.

6

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose, use muffler support mounting hardware

1шт.

7

D65132

FITTING

NIPPLE - special, part of R40468 heater assembly, Fig. 9-540

2шт.

8

221-1376

ELBOW,90 Degree, 3/8" NPT

- 90 degree

2шт.

9

221-116

NUT

NIPPLE - pipe, 3/8" x 2"

2шт.

10

R40468

HEATER

ASSEMBLY - cab, parts list Fig. 9-540, mounts below instrument panel

1шт.

11

D63394

GASKET

- heater, part of R40468 heater assembly, Fig. 9-540

1шт.

12

R43578

PLATE

- mounting, below instrument panel

1шт.

13

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

14

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

15

R40429

CABLE

-, Serial Range: heater-switch

1шт.

16

R43128

BRACKET

- mounting, heater switch

1шт.

17

L33827

SWITCH

- heater, part of R40468 heater assembly, Fig. 9-540

1шт.

18

R40435

CABLE

- with fuse, from switch, Includes: Ref. 19

1шт.

19

223-10

FUSE,10 Amp, Type 3AG

- AGC-10

1шт.

20

F43611

CLIP

- adhesive, cable

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
