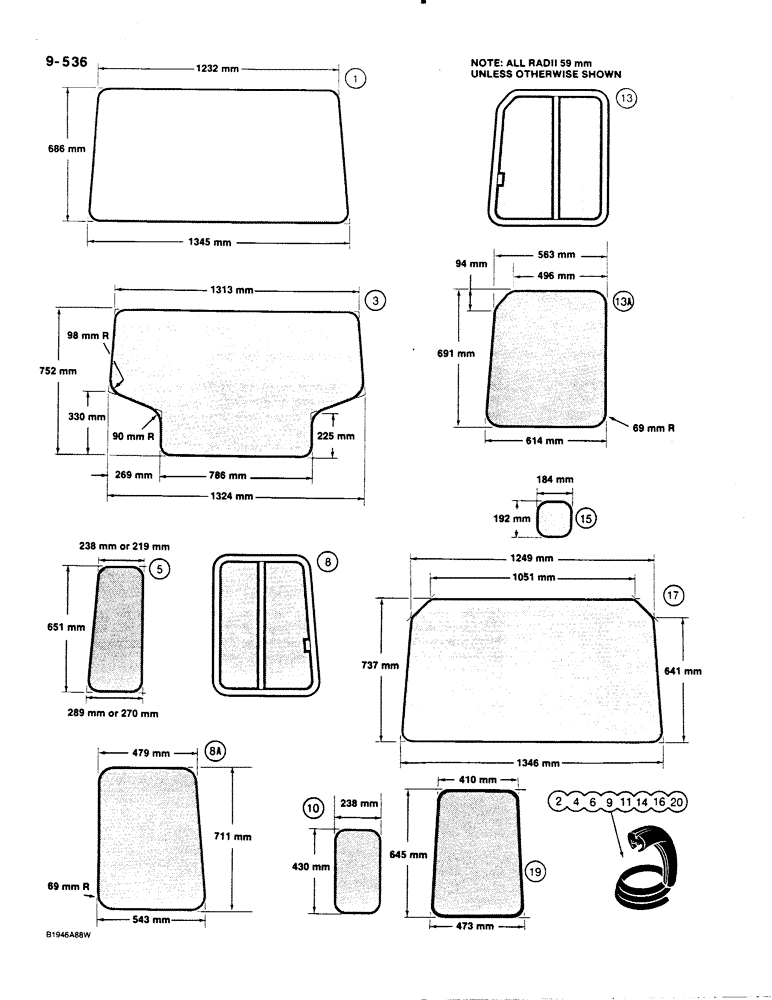

Запчасти Case 1450B (9-536) - ROPS CAB GLASS, METRIC DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

GLASS - windshield, loader models only

1шт.

2

REF

INSTRUCTION

SEAL - windshield, loader models only, 3823 mm long, cut from N6492

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - windshield, dozer models only

1шт.

4

REF

INSTRUCTION

SEAL - windshield, dozer models only, 3740 mm long, cut from N6492

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - front window, lower, dozer models only

2шт.

6

REF

INSTRUCTION

SEAL - lower front window, dozer models only, 1765 mm long, cut from N6492

2шт.

7

N6484

WINDOW

ASSEMBLY - two-piece, sliding, upper door, left-hand, used on doors without a hinged window, if used, not shown

1шт.

8

N6485

WINDOW

ASSEMBLY - two-piece, sliding, upper door, right-hand, used on doors without a hinged window, if used

1шт.

8a

NSS

NOT SOLD SEPARAT

GLASS - one-piece, upper door, used on doors without a hinged window, if used

2шт.

9

REF

INSTRUCTION

SEAL - upper window, door, 2235 mm long, cut from N6492

2шт.

10

NSS

NOT SOLD SEPARAT

GLASS - door, lower

2шт.

11

REF

INSTRUCTION

SEAL - lower glass, door, 1187 mm long, cut from N6492

2шт.

12

N6482

WINDOW

ASSEMBLY - two-piece, sliding, rear, left-hand, not shown, if used

1шт.

13

N6483

WINDOW

ASSEMBLY - two-piece, sliding, rear, right-hand, if used

1шт.

13a

NSS

NOT SOLD SEPARAT

GLASS - one-piece, rear, side, if used

2шт.

14

REF

INSTRUCTION

SEAL - rear side windows, 2292 mm long, cut from N6492

2шт.

15

NSS

NOT SOLD SEPARAT

GLASS - fuel access, used on models with top fill tank only, if used

1шт.

16

REF

INSTRUCTION

SEAL - fuel access glass, 660 mm long, cut from N6492, if used

1шт.

17

NSS

NOT SOLD SEPARAT

GLASS - rear window

1шт.

18

REF

INSTRUCTION

SEAL - rear window, 3848 mm long, cut from N6492

1шт.

19

NSS

NOT SOLD SEPARAT

GLASS - upper door, used on doors with a hinged window, if used

1шт.

20

REF

INSTRUCTION

SEAL - upper door glass, doors with a hinged window, 2178 mm long, cut from N6492

2шт.

N6492

GASKET

- roll, 15.2 m long

1шт.
