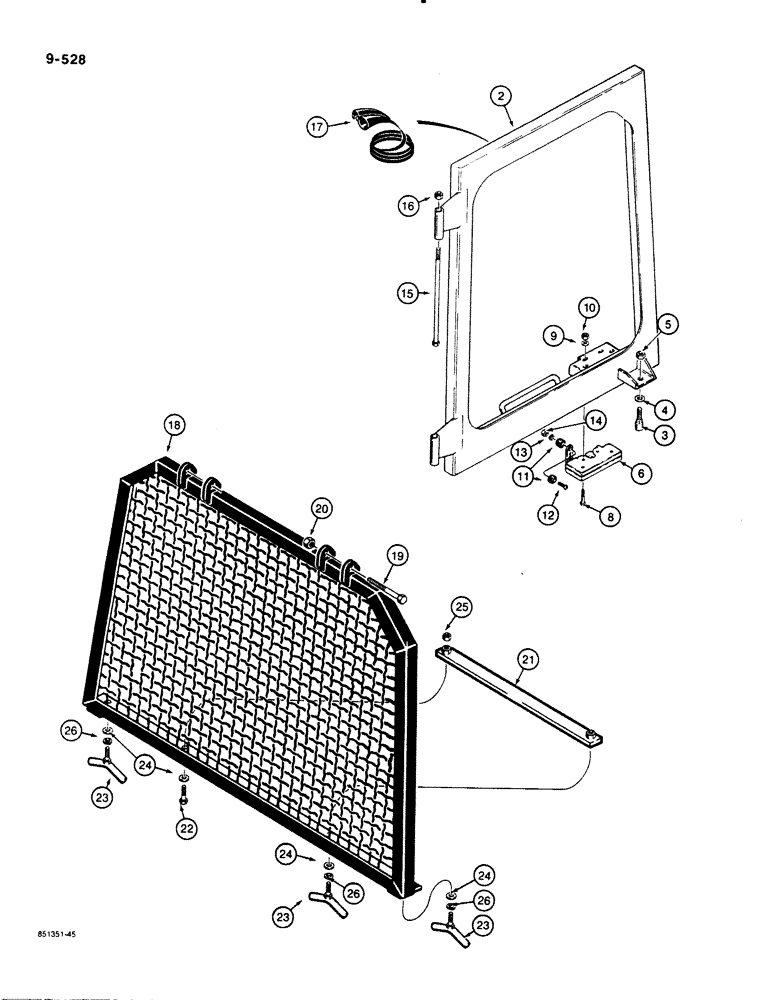

Запчасти Case 1450B (9-528) - CAB HINGED WINDOW & REAR SCREEN, HINGED WINDOW, IF USED (09) - CHASSIS/ATTACHMENTS

1

N13158

FRAME ASSY

FRAME - hinged window, left-hand, not shown

1шт.

2

N13159

FRAME ASSY

FRAME - hinged window, right-hand

1шт.

3

R51754

STRIKER

STRIKER - on window frame, outer, replaces any previous striker

2шт.

4

N6499

WASHER

- special, striker retaining

2шт.

5

131-926

NUT,Flg, USR, 7/16"-14

- hex flange, self-locking, 7/16" - 14 NC, plated

2шт.

6

R55003

LATCH ASSY.

LATCH - window, right-hand

1шт.

7

R55002

LATCH

- window, left-hand, not shown

1шт.

8

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.

9

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

8шт.

10

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

8шт.

11

L35871

FENDER

BUMPER - window latch release

4шт.

12

182-538

SCREW,Slotted Pan Hd, #10-32 x 1"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1", plated

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

129-37

NUT,#10-32

2шт.

15

113-532

BOLT,Hex, 3/8" - 16 x 10-1/2", Gr 5

- hex head, 3/8" - 16 NC x 10-1/2", plated

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

17

REF

INSTRUCTION

SEAL - around window, each 101-3/4" (2584 mm) long, cut from D80645, see below

2шт.

For rear screen used on models with top fill fuel and hydraulic tanks see Fig. 9-526.

1шт.

18

N9899

SCREEN

- rear

1шт.

19

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

20

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

21

N7237

BAR

- retaining, open screen

1шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

23

N13155

BOLT

BOLT - wing-type, special, 1/2" threads

3шт.

24

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

D80645

SEAL

- bulk roll, 50 ft (15.2 m) long

1шт.

For rear screen used on models with top fill fuel and hydraulic tanks see Fig. 9-526.

1шт.
