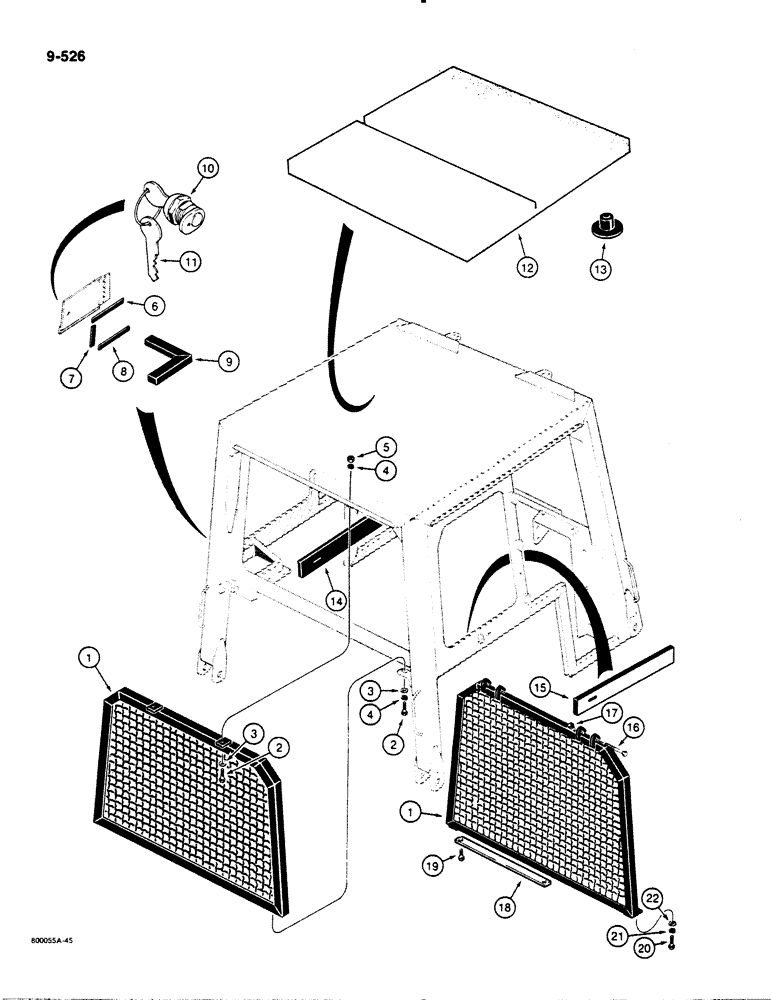

Запчасти Case 1450B (9-526) - CAB, REAR SCREEN AND FUEL ACCESS, MODELS WITH TOP FILL FUEL & HYD. TANKS, IF USED (09) - CHASSIS/ATTACHMENTS

1

N6480

SCREEN

- rear, may be bolted-on type or hinged type

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

3

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, if used

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

4шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

If used 1/2"-13, G5

2шт.

6

REF

INSTRUCTION

SEAL - rubber strip, top of fuel access door, 8-1/4" (210 mm) long, cut from L35819

1шт.

For rear screen and hinged window used on models with rear fill fuel and hydraulic tanks see Fig. 9-528. For cab noise reduction pads see Fig. 9-562.

1шт.

7

REF

INSTRUCTION

SEAL - rubber strip, side of fuel access door, 4-1/2" (114 mm) long, cut from L35819

1шт.

For rear screen and hinged window used on models with rear fill fuel and hydraulic tanks see Fig. 9-528. For cab noise reduction pads see Fig. 9-562.

1шт.

8

REF

INSTRUCTION

SEAL - rubber strip, bottom of fuel access door, 7-3/4" (197 mm) long, cut from L35819

1шт.

For rear screen and hinged window used on models with rear fill fuel and hydraulic tanks see Fig. 9-528. For cab noise reduction pads see Fig. 9-562.

1шт.

9

REF

INSTRUCTION

SEAL - strip, fuel access, 19-3/4" (502 mm) long, cut from N6494

1шт.

For rear screen and hinged window used on models with rear fill fuel and hydraulic tanks see Fig. 9-528. For cab noise reduction pads see Fig. 9-562.

1шт.

10

T42579

LOCK ASSY

LOCK ASSEMBLY - fuel access door, includes key, Includes: Ref. 11

1шт.

11

T42580

KEY

- lock

1шт.

12

N6490

ROOF LINING

HEADLINER - cab, used on non-pressurized cab models only, if used

1шт.

13

R37161

RETAINER

- headliner, if used

14шт.

14

REF

INSTRUCTION

PAD - cab frame, left-hand, 3-15/16" (100 mm) x 17-5/16" (440 mm), cut from ref. 15

1шт.

15

N6504

FOAM

PAD - cab frame, right-hand, 3-15/16" (100 mm) x 29" (737 mm)

1шт.

16

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Screen hinge mounting, if used Hex, 3/8"-16 x 3 1/2", G5

2шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated, if used

2шт.

18

N7237

BAR

- screen retaining, use with hinged screen, if used

1шт.

19

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

L35819

RUBBER SEAL

SEAL - strip, rubber, 50 ft (15.2 mm) long

1шт.

For rear screen and hinged window used on models with rear fill fuel and hydraulic tanks see Fig. 9-528. For cab noise reduction pads see Fig. 9-562.

1шт.

N6494

SEAL

- strip, 6 ft. (1.8 m) long

1шт.

For rear screen and hinged window used on models with rear fill fuel and hydraulic tanks see Fig. 9-528. For cab noise reduction pads see Fig. 9-562.

1шт.
