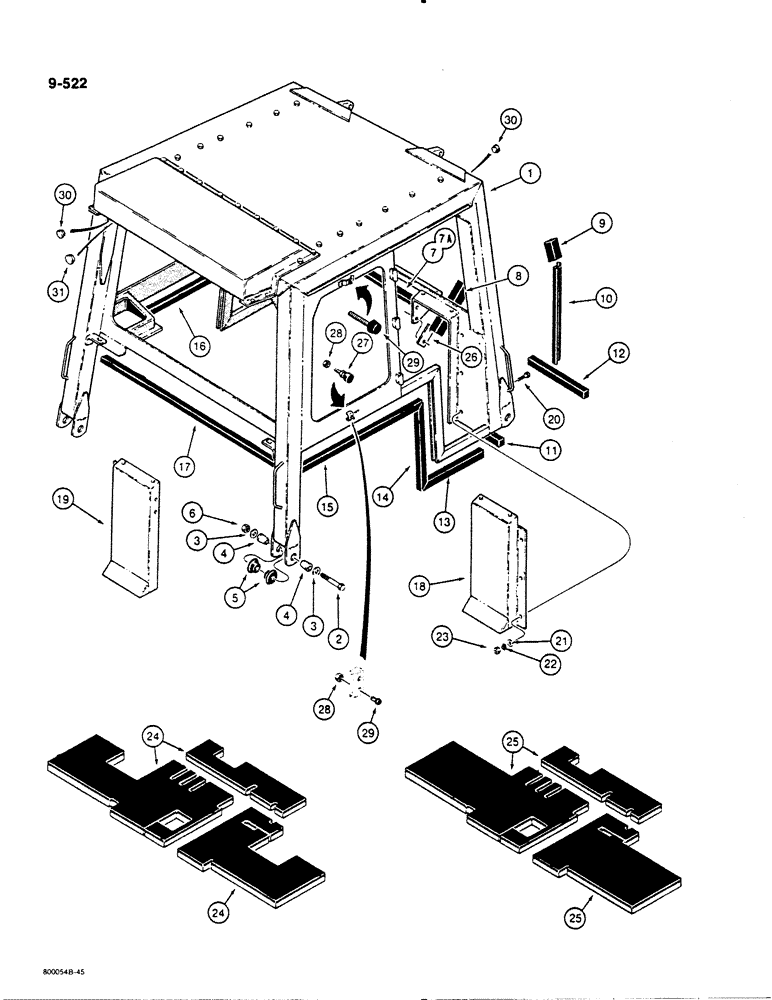

Запчасти Case 1450B (9-522) - CAB, MOUNTING, SEALS, AND FLOORMAT (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - complete, machinery item, order from Machinery Price List

1шт.

2

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened, 3/4"

8шт.

4

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

- steel

8шт.

5

F44214

MOUNTING PARTS

INSULATOR - rubber, mounting

8шт.

6

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

7

REF

INSTRUCTION

SEAL - rubber, non-pressurized cabs, loader and dozer models, 27" (686 mm) long, cut from N7239, replaces foam seal on some models

1шт.

7a

REF

INSTRUCTION

SEAL - rubber, pressureized cabs, 27" (686 mm) long on loader models, 24-1/2" (622 mm) long on dozer models, cut from N7239

1шт.

8

REF

INSTRUCTION

SEAL - foam, loader, sides of cowl, 15" (381 mm) long, cut from N6501

2шт.

9

REF

INSTRUCTION

SEAL - foam, dozer, sides of cowl, top, 6" (152 mm) long, cut from N6501

2шт.

10

REF

INSTRUCTION

SEAL - rubber, dozer, sides of cowl, bottom, 24-1/4" (616 mm) long, cut from N7239

2шт.

11

REF

INSTRUCTION

SEAL - foam, loader, main frame, 7-1/2" (191 mm) long, cut from N6494

2шт.

12

REF

INSTRUCTION

SEAL - strip, dozer, main frame, 17-1/4" (438 mm) long, cut from N6494

2шт.

13

REF

INSTRUCTION

SEAL - strip, below door, 16-3/4" (425 mm) long, cut from N6494

2шт.

14

N6486

STRIP

SEAL - strip, side of hydraulic and fuel tanks, 23-5/16" (592 mm) long

2шт.

15

REF

INSTRUCTION

SEAL - strip, top of hydraulic tank, right-hand side, 38-1/4" (971.5 mm) long on models with top fill tank, 34" (864 mm) long on models with rear fill tank, cut from N6494

1шт.

16

REF

INSTRUCTION

SEAL - strip, top of fuel tank, left-hand side, 28" (711 mm) long on models with top fill tank, 34" (864 mm) long on models with rear fill tank, cut from N6494

1шт.

17

REF

INSTRUCTION

SEAL - strip, under rear window, 53-1/2" (1359 mm) long on models with top fill tanks, 65" (1651 mm) long on models with rear fill tanks, cut from N6494

1шт.

N6494

SEAL

- strip, roll, 6 ft. (1.8 m) long

1шт.

N7239

SEALING STRIP

- rubber, roll, 6 ft. (1.8 m) long

1шт.

N6501

FOAM

SEAL - foam, roll, 6 ft. (1.8 m) long

1шт.

18

N6544

BOX

PANEL - filler, includes foam, right-hand, loader models only

1шт.

19

N6509

BOX

PANEL - filler, includes foam, left-hand, loader models only

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

21

195-104

WASHER,3/8"

- flat, , plated 3/8"

14шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

24

R46592

FLOOR MAT

FLOORMAT - loader, black, if used

1шт.

24

R48439

MAT

FLOORMAT - loader, brown, if used

1шт.

25

R46593

FLOOR MAT

FLOORMAT - dozer, black, if used

1шт.

25

R48440

MAT

FLOORMAT - dozer, brown, if used

1шт.

26

N7238

PLATE

SPACER - mounting, filler panel, loader models only

2шт.

27

N6500

STOP LOCK

BUMPER - rubber, below rear side window, used on models without hinged window in door, if used

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

2-4шт.

29

N7673

BUMPER

- rubber, one used above rear side window on models without hinged window in door, two used below rear side window on models with hinged window in door

2-4шт.

30

353-402

PLUG,Dome, .375" hole, Nylon

(10 mm), Used on models without roof-mounted lamps, front and rear, If used Dome, .375" hole, Nylon

4шт.

31

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16" (17 mm) hole size, used on models without roof-mounted lamps, rear, if used

2шт.
