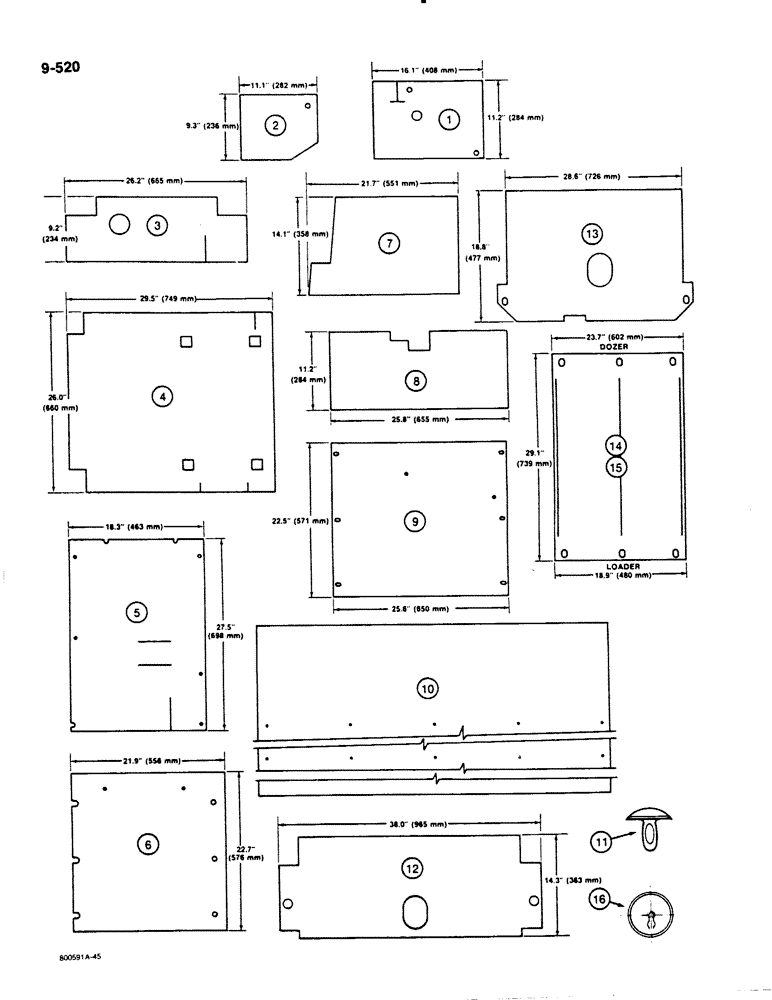

Запчасти Case 1450B (9-520) - NOISE REDUCTION PADS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PAD - floor, center, right-hand front, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

2

REF

INSTRUCTION

PAD - floor, center, right-hand rear, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

3

REF

INSTRUCTION

PAD - heel plate, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

4

REF

INSTRUCTION

PAD - seat mounting plate, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

5

REF

INSTRUCTION

PAD - hydraulic tank, top cover, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

6

REF

INSTRUCTION

PAD - hydraulic tank, right-hand side, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

7

REF

INSTRUCTION

PAD - hydraulic tank, front side, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

8

REF

INSTRUCTION

PAD - tool box cover, if used, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

9

REF

INSTRUCTION

PAD - rear cover plate, between tanks, cut from R30870, used on models with top fill fuel and hydraulic tanks, if used

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

10

R42048

PAD

HEADLINER - ROPS, black, if used

1шт.

10

R48859

PAD

HEADLINER - ROPS, brown, if used

1шт.

11

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

RETAINER - headliner

10шт.

12

REF

INSTRUCTION

PAD - rear transmission guard, dozer models with no rear equipment only, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

13

REF

INSTRUCTION

PAD - rear transmission guard, loader or dozer models with ripper only, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

14

REF

INSTRUCTION

PAD - front engine guard, dozer models, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

15

REF

INSTRUCTION

PAD - front engine guard, loader models, cut from R30870

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

16

R37160

RETAINER

- pad

1шт.

R30870

PAD

- bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm)

1шт.

For other noise reduction pads, see Figs. 9-518 and 9-562.

1шт.

345-44

ADHESIVE

- for attaching pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
