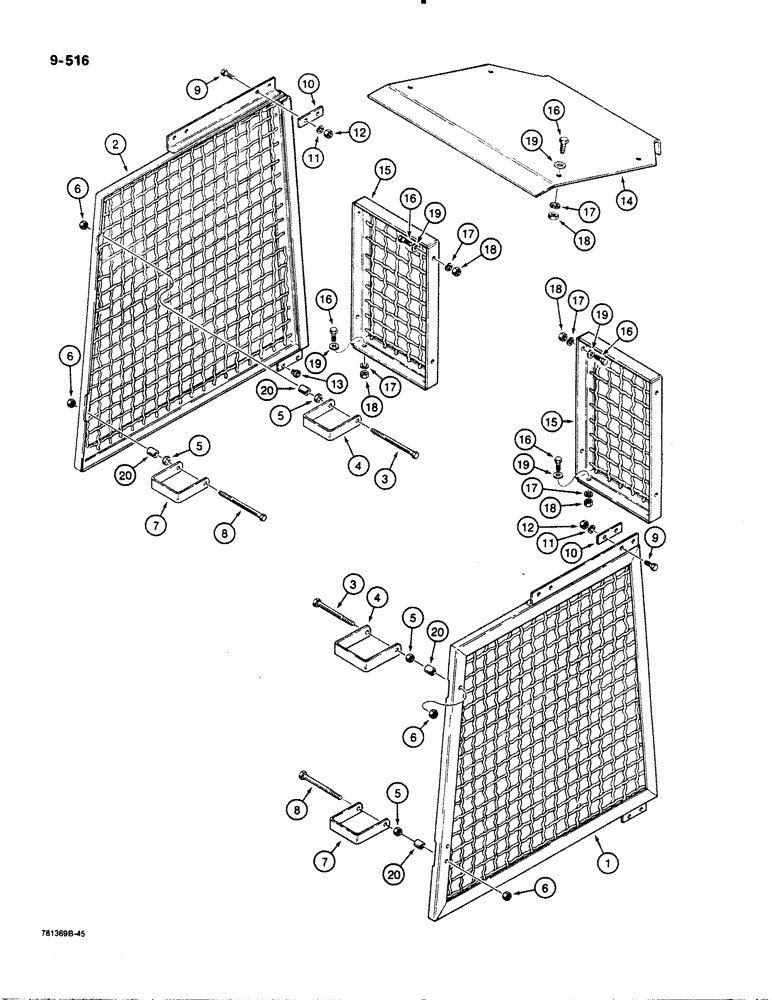

Запчасти Case 1450B (9-516) - ROPS CANOPY BRUSH SCREENS AND EXTENSION (09) - CHASSIS/ATTACHMENTS

1

R41012

SCREEN

- right-hand side

1шт.

2

R41013

SCREEN

- left-hand side

1шт.

3

113-423

BOLT,Hex, 1/2" - 13 x 7", Gr 5

- hex head, 1/2" - 13 NC x 7", plated

2шт.

4

F43766

SUPPORT

CLAMP - side screen mounting, upper

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

6

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

7

F43767

SUPPORT

CLAMP - side screen mounting, lower

2шт.

8

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

2шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

10

F44446

NOZZLE HOLDER

SPACER - side screen

4шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

13

R38089

CUSHION ASSY.

BUMPER - rubber

4шт.

14

R41019

COVER

CANOPY EXTENSION - dozer models only

1шт.

15

R41020

SCREEN

- front, dozer models only

2шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

10шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

19

195-106

WASHER,1/2"

- flat, , plated, dozer models only 1/2"

10шт.

20

T53868

BUSHING

SPACER - screen mounting

4шт.
