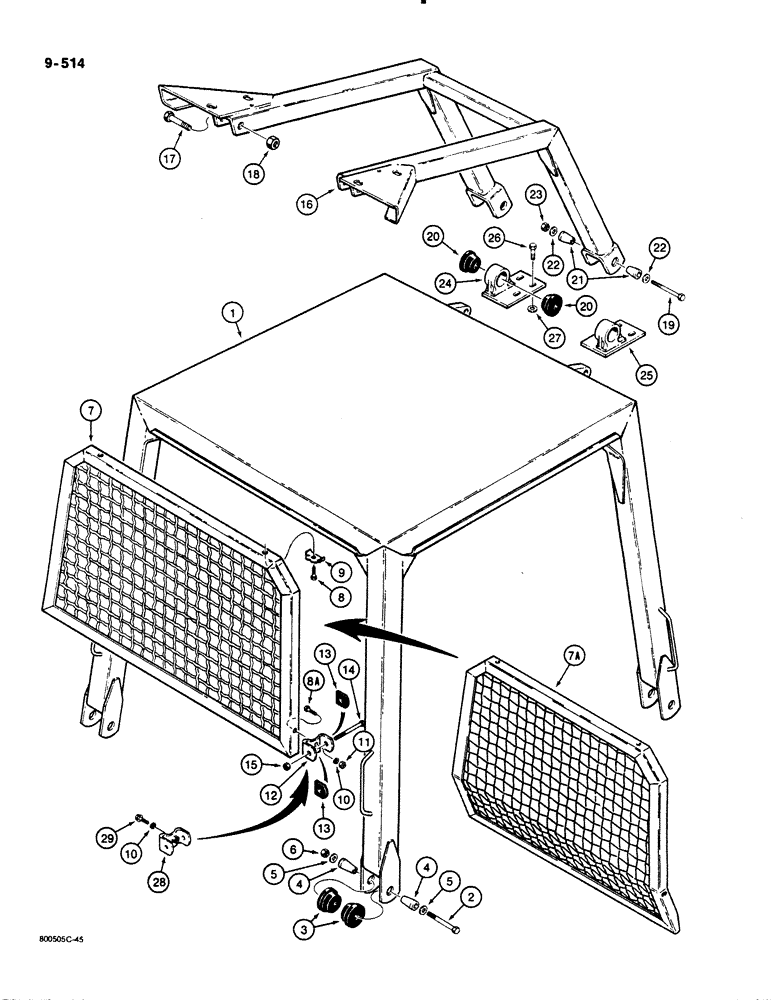

Запчасти Case 1450B (9-514) - ROLL OVER PROTECTIVE STRUCTURE, CANOPY AND BRUSH GUARDS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, machinery item, order from Machinery Price List

1шт.

2

1113-728

BOLT - hex head, 3/4" - 10 NC x 6-1/2", plated

4шт.

3

F44214

MOUNTING PARTS

INSULATOR - rubber

8шт.

4

R44228

BUSHING - rubber

8шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 3/4", hardened

8шт.

6

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

7

R40097

SCREEN

- rear, straight, if used

1шт.

7a

R49815

SCREEN

- rear, curved, if used

1шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

8a

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used with ref. 12 clamp only, if used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

9

R38226

LOCK WASHER

RETAINER - screen, upper

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Use with ref. 12 or 28 clamp 1/2"

2шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

Use with ref. 12 clamp only if used 1/2"-13, G5

2шт.

12

R40073

CLAMP

- rear screen mounting, without weldnut, no longer used, order refs. 28 and 29

2шт.

13

R40074

CUSHION ASSY.

SPACER - rubber

4шт.

14

113-2429

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex head, 1/2" - 13 NC x 5-3/4", plated

2шт.

15

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

16

R41199

GUARD

- brush sweep

1шт.

17

113-903

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

2шт.

18

131-380

LOCK NUT,1"-8, GA

NUT - hex, self-locking, 1" - 8 NC, plated

2шт.

19

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

2шт.

20

F44212

MOUNTING PARTS

INSULATOR - rubber

4шт.

21

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- rubber

4шт.

22

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 3/4", hardened

4шт.

23

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4" - 10 NC, plated

2шт.

24

R41175

BASE

BRACKET - left-hand on dozer models, right-hand on loader models

1шт.

25

R41176

BASE

BRACKET - right-hand on dozer models, left-hand on loader models

1шт.

26

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

27

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

6шт.

28

R46663

ANCHOR

CLAMP - rear screen mounting, with weldnut

2шт.

29

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Use with ref. 28 clamp Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.
