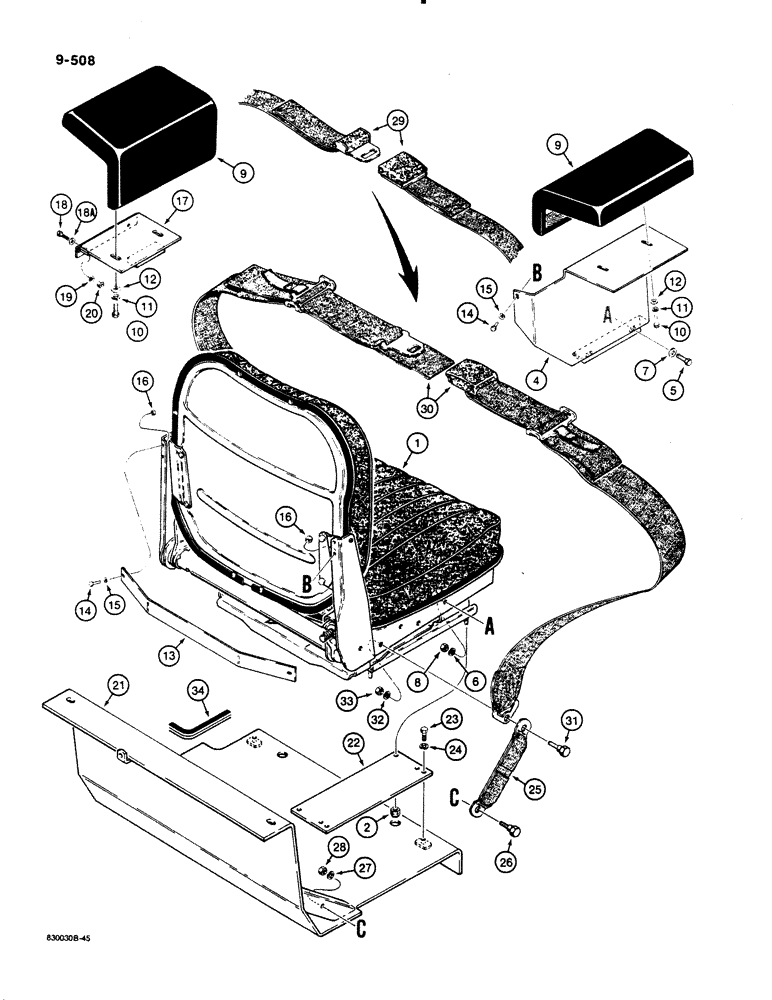

Запчасти Case 1450B (9-508) - SUSPENSION SEAT, SEAT BELT, AND ARMRESTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SUSPENSION SEAT - for correct assembly and components see Fig. 9-510, if used

1шт.

2

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

3

R46540

SUPPORT

- armrest, left-hand, not shown, use with ref. 13 bracket, bolt to seat assembly frame, if used

1шт.

4

R46541

SUPPORT

- armrest, right-hand, use with ref. 13 bracket, bolt to seat assembly frame, if used

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

9

R39322

CUSHION

ARMREST - suspension seat, black, no longer available, order R48420 brown armrest

2шт.

9

R48420

ARMREST

- suspension seat, brown, if used

2шт.

10

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

13

R46542

STRAP

BRACKET - armrest supports, use with ref. 3 and 4 supports, if used

1шт.

14

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

17

R34710

SUPPORT

- armrest, bolt to bracket on fuel and hydraulic tanks, if used

2шт.

18

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

18a

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

21

R50516

PLATE ASSY.

SUPPORT - seat mounting, see Fig. 9-502 for additional attaching hardware

1шт.

22

R50967

LARGE PLATE

PLATE - seat mounting, if used

2шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

25

R45816

SAFETY BELT ,1.80" W

Extension 1.80" W

2шт.

26

R42236

SHOULDER BOLT - 7/16" - 20 NF x 1-1/4"

2шт.

27

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

28

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF

2шт.

29

R51095

SAFETY BELT ,1.94" W

If used 1.94" W

1шт.

30

D85816

SAFETY BELT

SEAT BELT - 3" (76 mm) wide, if used

1шт.

31

R45855

BOLT

SHOULDER BOLT - 7/16" - 20 NF x 1-1/2"

2шт.

32

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

33

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF

2шт.

34

D43403

LINING

TRIM - edge guard, seat support at parking brake cable, 5" (127 mm) long, cut from F42827, see below

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116" (2946 mm) long

1шт.
