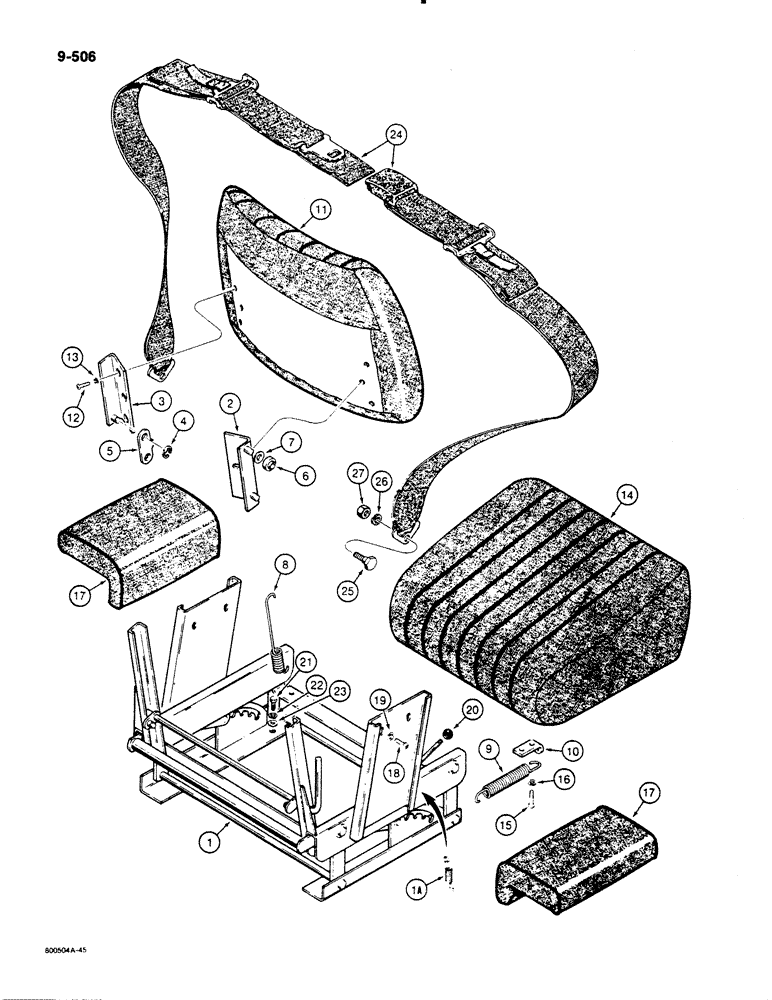

Запчасти Case 1450B (9-506) - NON-SUSPENSION SEAT AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

R31429

SEAT

ASSEMBLY - non-suspension, black, no longer available, order R48584 brown seat assembly, Includes: Ref. 1 - 20

1шт.

R48584

SEAT ASSY.

SEAT ASSEMBLY - non-suspension, brown, Includes: Ref. 1 - 20

1шт.

1

R31666

FRAME

- seat, Includes: Ref. 1A

1шт.

1a

D64839

SPRING

- frame

1шт.

2

R31671

BRACKET

- backrest, right-hand, brown, black bracket is no longer available

1шт.

3

R31672

BRACKET

- backrest, left-hand, brown, black bracket is no longer available

1шт.

4

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

4шт.

5

R31674

LINK

- back adjustment

2шт.

6

R31673

ROLLER

- back adjustment

4шт.

7

R31939

HYDRAULIC HOSE

WASHER - special, 1/2", plated

2шт.

Ref. 7 in the listing should be R31739.

1шт.

8

R31675

VALVE SPRING

SPRING - back adjusting

2шт.

9

R31670

VALVE SPRING

SPRING - seat adjusting

1шт.

10

R31669

BRACKET

- seat spring, brown, black bracket is no longer available

1шт.

11

R31668

CUSHION

BACKREST - seat assembly, black, if used

1шт.

11

N8816

CUSHION

BACKREST - seat assembly, brown, if used

1шт.

12

182-501

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

MACHINE SCREW - Phillips head, 5/16" - 18 NC x 3/4", plated

6шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

14

R31667

CUSHION

- seat, black, if used

1шт.

14

N8815

CUSHION

- seat, brown, if used

1шт.

15

182-501

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

MACHINE SCREW - Phillips head, 5/16' - 18 NC x 3/4", plated

6шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

17

R31677

CUSHION

ARMREST - seat assembly, black, if used

2шт.

17

N8817

ARMREST

- seat assembly, brown, if used

1шт.

18

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

20

R31676

BALL

KNOB - handle

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

D41740

WASHER

- hardened, 3/8"

4шт.

24

D85816

SAFETY BELT

SEAT BELT - 3" (76 mm) wide, if used

1шт.

24

R51095

SAFETY BELT ,1.94" W

If used 1.94" W

1шт.

25

F42236

STEP BOLT

SHOULDER BOLT - special

2шт.

26

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF

2шт.
