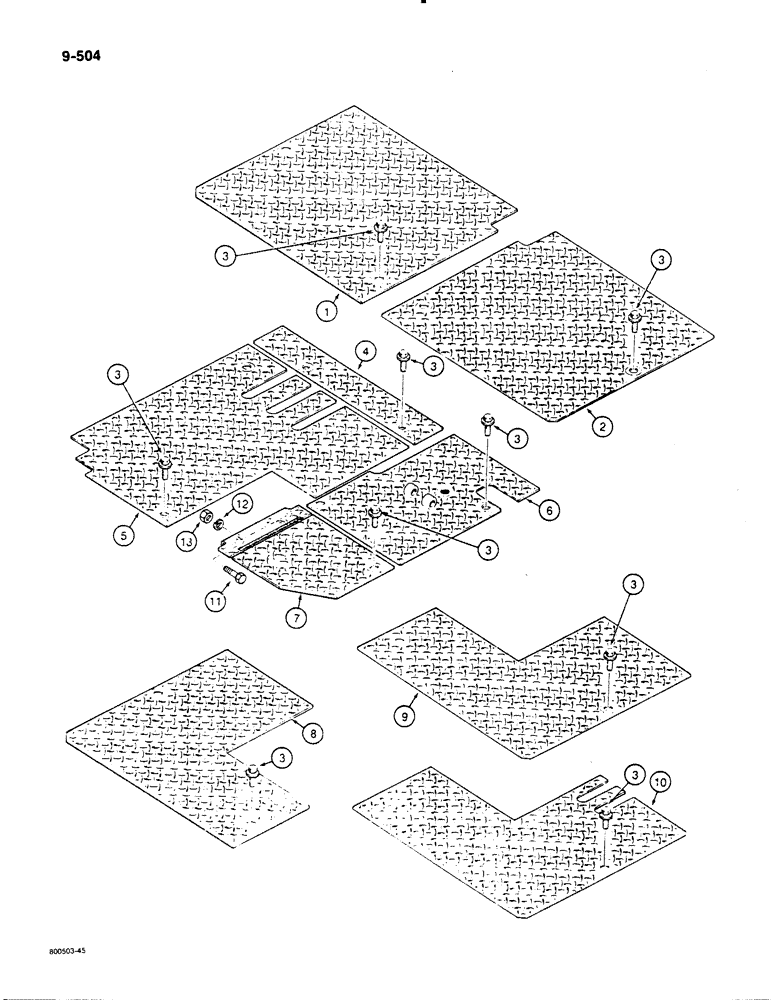

Запчасти Case 1450B (9-504) - FLOOR PLATES (09) - CHASSIS/ATTACHMENTS

1

R28563

PLATE

- floor, left-hand, outer, dozer and drawbar models only

1шт.

2

R28564

PLATE

- floor, right-hand, outer, dozer and drawbar models only

1шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

11шт.

4

R28554

PLATE

- floor, center, left-hand front

1шт.

5

R41985

PLATE

- floor, center, left-hand rear

1шт.

6

R28556

PLATE

- floor, center, right-hand front

1шт.

7

R34213

PLATE

- floor, center, right-hand rear

1шт.

8

R28565

PLATE

- floor, left-hand outer, loader models only

1шт.

9

R28566

PLATE

- floor, right-hand outer, loader models only

1шт.

10

R29413

PLATE

- floor, right-hand outer, loader models with clam bucket

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.
