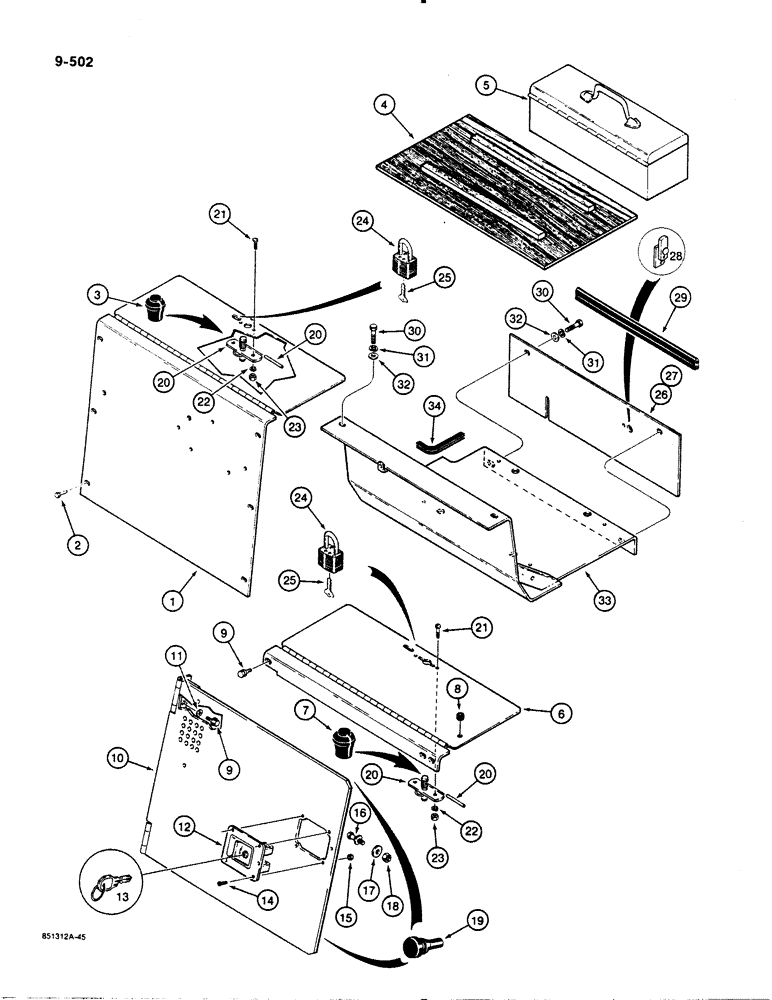

Запчасти Case 1450B (9-502) - BTTRY COMPARTMENT COVERS, SEAT SUPPORT, & HEEL PLATE MODEL W/TOP OR REAR FILL TANKS, ALL MODELS (09) - CHASSIS/ATTACHMENTS

1

R42025

COVER ASSY

battery, top-hinged

1шт.

2

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

6шт.

3

R46182

COVER

rubber, latch, used on cab models only

1шт.

4

R42028

SUPPORT

tool box, wood, if used, no longer available, make locally

1шт.

5

R29693

BOX, TOOL

if used

1шт.

6

R49810

COVER ASSY

battery, latches to seat support, models w/ rear fuel tanks

1шт.

7

R46182

COVER

rubber, latch, used on cab models only, models w/ rear fuel tanks

1шт.

8

A23870

GROMMET

lamp wiring harness, if used, models w/ rear fuel tanks

1шт.

9

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", Teflon coated, models w/ rear fuel tanks

6шт.

10

R50550

DECAL

COVER - , side-hinged, includes , models w/ rear fuel tanks

1шт.

11

D41740

WASHER

flat, 3/8", hardened, models w/ rear fuel tanks

4шт.

12

R49213

LATCH ASSY.

cover, models w/ rear fuel tanks

1шт.

13

R49215

KEY

latch, models w/ rear fuel tanks

1шт.

14

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE - pan head slotted, No. 10 - 24 NC x 1/2", plated, models w/ rear fuel tanks

4шт.

15

F45165

SPECIAL NUT,#10-24

hex, self-locking, No. 10 - 24 NC, Teflon coated, special, models w/ rear fuel tanks

4шт.

16

R49214

BOLT

STRIKER - latch, models w/ rear fuel tanks

1шт.

17

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, special, models w/ rear fuel tanks

1шт.

18

131-203

LOCK NUT,3/8"-16, GB, LH

hex, self-locking, 3/8" - 16 NC, plated, models w/ rear fuel tanks

1шт.

19

A161780

BUMPER

rubber, on hydraulic tank flange, models w/ rear fuel tanks

3шт.

20

L102515

LATCH

battery cover, parts used on all models

1шт.

21

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE - pan head slotted, No. 10 - 24 NC x 1/2", plated, parts used on all models

2шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Parts used on all models #10

2шт.

23

129-17

NUT,Hex, #10 - 24

hex, No. 10 - 24 NC, plated, parts used on all models

2шт.

24

D93753

PADLOCK

battery access and master disconnect switch, if used, parts used on all models, Includes: Ref. 25

1-2шт.

25

R29555

KEY

for Master padlock only, parts used on all models

2шт.

25

D93751

SET OF 2 KEYS

for Yale padlock only, parts used on all models

2шт.

26

R54245

PLATE ASSY.

heel, with locking tab for master disconnect switch, if used, parts used on all models, Includes: Ref. 27 and 28

1шт.

27

R42030

PLATE

heel, without locking tab for master disconnect switch, if used, parts used on all models

1шт.

28

R46704

BRACKET

TAB - locking, for master disconnect switch, if used, see instruction sheet no. 8-61640 for welding instructions, parts used on all models

1шт.

29

R49253

SEAL

heel plate, 18-1/8" (460 mm) long, cut from F43117, see below, parts used on all models

1шт.

30

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Parts used on all models Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Parts used on all models 1/2"

6шт.

32

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, parts used on all models

6шт.

33

R50516

PLATE ASSY.

SUPPORT - seat mounting, parts used on all models

1шт.

34

D43403

LINING

TRIM - edge guard, seat support at parking brake cable, 5" (127 mm) long, cut from F42827, see below, parts used on all models

1шт.

F43117

SEAL

bulk roll, 100 ft (3048 cm) long, parts used on all models

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116" (2946 mm) long, parts used on all models

1шт.
