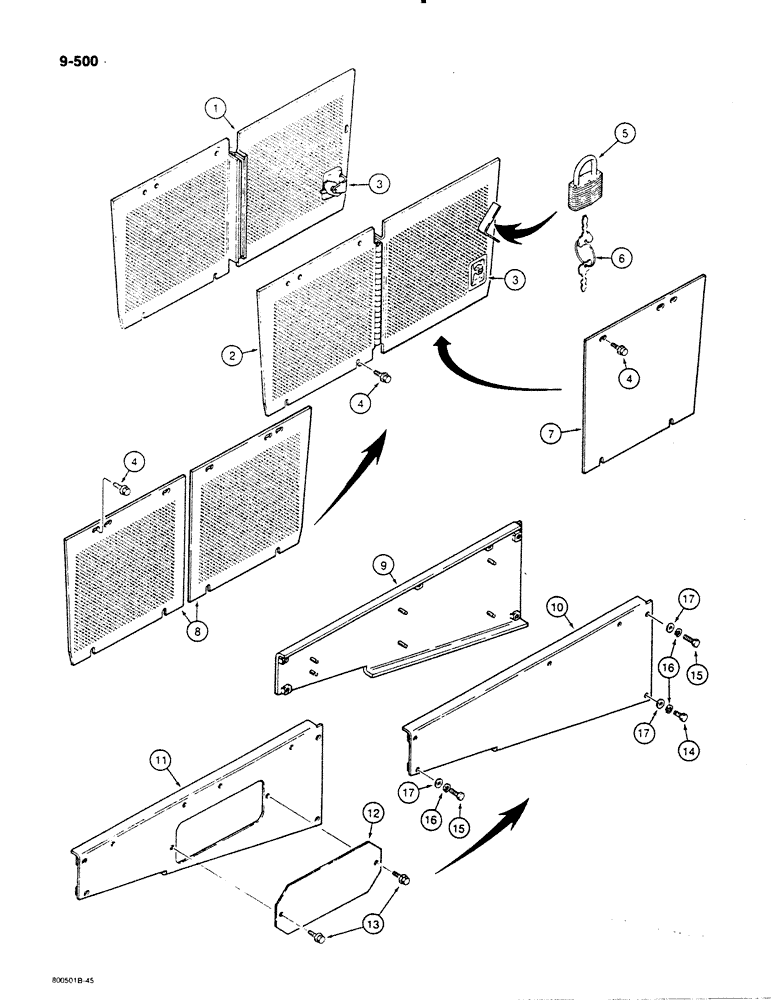

Запчасти Case 1450B (9-500) - SIDE SHIELDS, LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R42244

GUARD

SHIELD - side, hinged, without pad, left-hand, no longer used, replace with two R50537 side shields (ref. 8)

1шт.

2

R42247

GUARD

SHIELD - side, hinged, without pad, right-hand, no longer used, replace with two R50537 side shields (ref. 8)

1шт.

1

R46277

GUARD

SHIELD - side, hinged, includes pad, left-hand, not shown, no longer used, replace with two R50537 side shields (ref. 8)

1шт.

2

R46276

GUARD

SHIELD - side, hinged, includes pad, right-hand, not shown, no longer used, replace with two R50537 side shields (ref. 8), Includes: Ref. 3

1шт.

3

S225099

LATCH

- used on all side shields above

1шт.

4

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

16шт.

5

D93753

PADLOCK

- hinged side shields, if used, Includes: Ref. 6

2шт.

6

R29555

KEY

- for Master padlock only

2шт.

6

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

7

R42080

GUARD

SHIELD - side, single panel on both sides in front postition (without perforations), no longer available, replace with R50537 side shield(s) (ref. 8)

2шт.

8

R50537

SHIELD

- side, two panels on each side (with perforations), if used

4шт.

9

R44184

GUARD

SHIELD - lower side, left-hand

1шт.

10

R44185

SHIELD

- lower side, right-hand, without engine oil filter access, if used

1шт.

11

R50540

SHIELD

- lower side, right-hand, with engine oil filter access, if used

1шт.

12

R50538

LARGE PLATE

COVER - engine oil filter, lower side shield, right-hand, if used

1шт.

13

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , If used Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

14

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

15

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

17

95-8

WASHER,1/2"

flat 1/2"

8шт.
