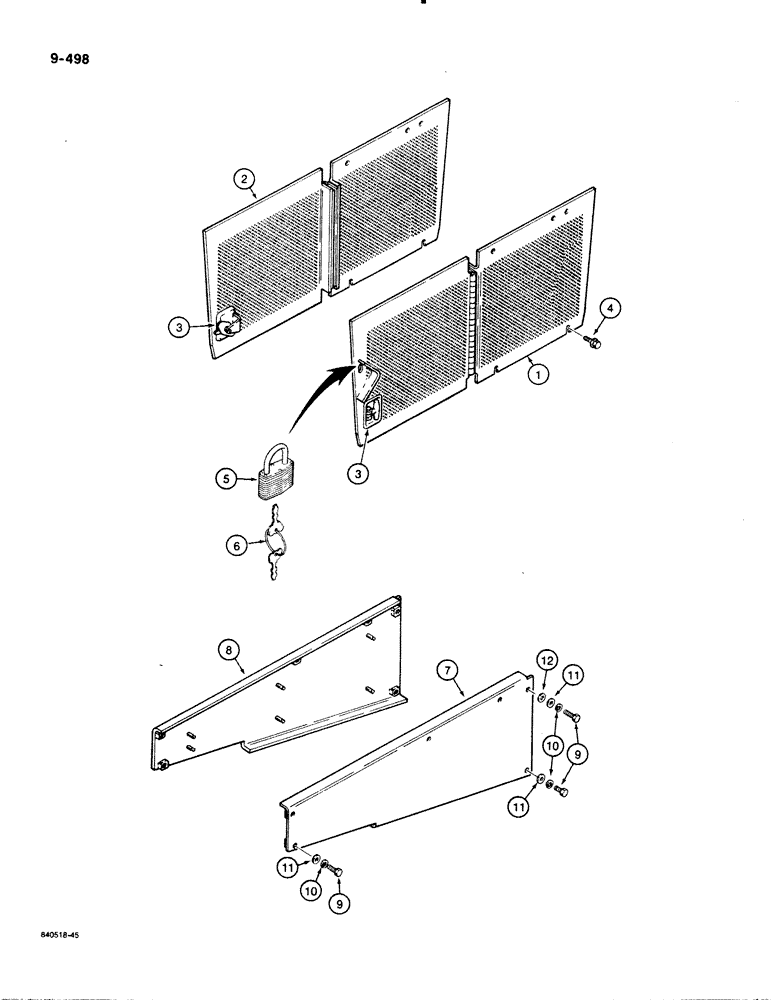

Запчасти Case 1450B (9-498) - SIDE SHIELDS, DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R42244

GUARD

SHIELD - side, without noise reduction pads, right-hand

1шт.

2

R42247

GUARD

SHIELD - side, without noise reduction pads, left-hand

1шт.

1

R46277

GUARD

SHIELD - side, includes noise reduction pads, right-hand, not shown, for pads and retainers see Fig. 9-518

1шт.

2

R46276

GUARD

SHIELD - side, includes noise reduction pads, left-hand, not shown, for pads and retainers see Fig. 9-518, Includes: Ref. 3

1шт.

3

S225099

LATCH

- used on all side shields above

1шт.

4

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

8шт.

5

D93753

PADLOCK

- side shields, if used, Includes: Ref. 6

2шт.

6

R29555

KEY

- for Master padlock only

2шт.

6

R93751

KEY - for Yale padlock only

2шт.

7

R44183

SHIELD

- lower side, right-hand

1шт.

8

R44182

GUARD

SHIELD - lower side, left-hand

1шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

11

95-8

WASHER,1/2"

flat 1/2"

8шт.

12

V13381

SPACER

- lower side shield

2шт.
