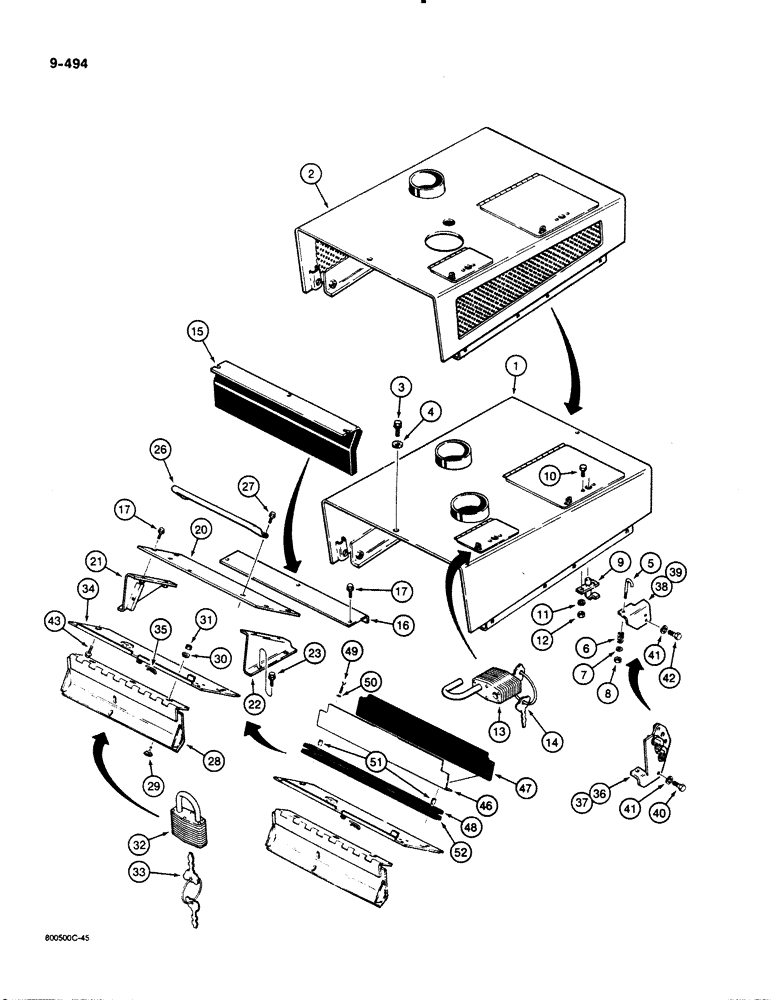

Запчасти Case 1450B (9-494) - HOOD AND INSTRUMENT PANEL COVERS (09) - CHASSIS/ATTACHMENTS

1

R43110

HOOD

- with solid sides, use with standard air cleaner, includes decals, if used

1шт.

For noise reduction pads, see Figure 9-518. Noise reduction pads cannot be used on forestry hoods, Ref. 2

1шт.

1

R43111

HOOD

- with solid sides, use with extra capacity air cleaner, includes decals, if used, not shown

1шт.

For noise reduction pads, see Figure 9-518. Noise reduction pads cannot be used on forestry hoods, Ref. 2

1шт.

2

R43112

HOOD

- forestry, with holes, use with standard air cleaner, includes decals, not shown

1шт.

2

R51147

HOOD

- forestry, with holes, use with extra capacity air cleaner, includes decals

1шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

1шт.

4

195-2066

WASHER,33/64" x 7/8" x .180"

- flat, 1/2" bolt size, 7/32" thick, plated

1шт.

5

D33958

BOLT

- J, hood retaining

4шт.

6

F60482

SPRING

- J-bolt

4шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

9

L102515

LATCH

- hood, access covers

2шт.

10

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1/2", plated

4шт.

11

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

12

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

13

D93753

PADLOCK

- hood, air cleaner and engine oil access covers, if used, Includes: Ref. 14

2шт.

14

R29555

KEY

- for Master padlock only

2шт.

14

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

15

R37527

SUPPORT

- hood, includes noise reduction pad, used in place of ref. 16 on some models, no longer available, replace with ref. 16 support and add refs. 46 - 52 shown below, if needed

1шт.

For noise reduction pads, see Figure 9-518. Noise reduction pads cannot be used on forestry hoods, Ref. 2

1шт.

16

R29340

EXTENSION

SUPPORT - hood

1шт.

17

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

Replaces regular bolt, lock washer and flat washer used on some models Hex Flg, 3/8"-16 x 1", G8, Full Thd

6шт.

20

R44437

COVER

PLATE - instrument panel, over back side of gauges

1шт.

21

R44443

BRACKET

- instrument panel cover, left-hand

1шт.

22

R44444

BRACKET

- instrument panel cover, right-hand

1шт.

23

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated, replaces regular bolt, lock washer, and flat washer used on some models

4шт.

26

R43914

RAIL

HANDRAIL - hood

1шт.

27

121-235

FLANGE BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 1-1/4", grade 8, Teflon coated, replaces regular bolt, lock washer, and flat washer used on some models

2шт.

28

R42046

COVER ASSY

COVER - instrument panel, hinged

1шт.

29

A42923

CARRIAGE BOLT

BOLT - special

3шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

31

9635082

NUT,5/16" - 18, Gr 5

3шт.

32

D93753

PADLOCK

- instrument panel cover, if used, Includes: Ref. 33

1шт.

33

R29555

KEY

- for Master padlock only

2шт.

33

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

34

R38661

PLATE

- instrument panel, lower

1шт.

35

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), , Instrument panel cover, retainer for open position Int, 3/16 x .080"

1шт.

36

R47949

SUPPORT

BRACKET - J-bolt, hood, left-hand, dozer models only

1шт.

37

R43401

BRACKET

- J-bolt, hood, right-hand, dozer models only

1шт.

38

R27284

ANGLE

BRACKET - J-bolt, hood, left-hand, loader models only

1шт.

39

R27285

ANGLE

BRACKET - J-bolt, hood, right-hand, loader models only

1шт.

40

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Dozer models only Hex, 1/2"-13 x 1 3/4", G5

4шт.

41

92-8

LOCK WASHER,1/2"

4шт.

42

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Loader models only Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

43

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8' - 16 NC x 3/4", grade 8, Teflon coated, replaces regular bolt, lock washer, and flat washer used on some models

4шт.

R49287

BAFFLE

ASSEMBLY - noise reduction and cab pressurization, if used, Includes: Ref. 46 - 48

1шт.

46

R49289

BAFFLE

- noise reduction and cab pressurization

1шт.

47

R49288

SEAL

PAD - baffle

1шт.

48

R49290

SEAL

- adhesive-backed, baffle

1шт.

49

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

50

92-6

LOCK WASHER,3/8"

2шт.

51

38195

SPACER

- baffle mounting

2шт.

52

R49290

SEAL

- adhesive-backed, instrument panel lower plate

1шт.
