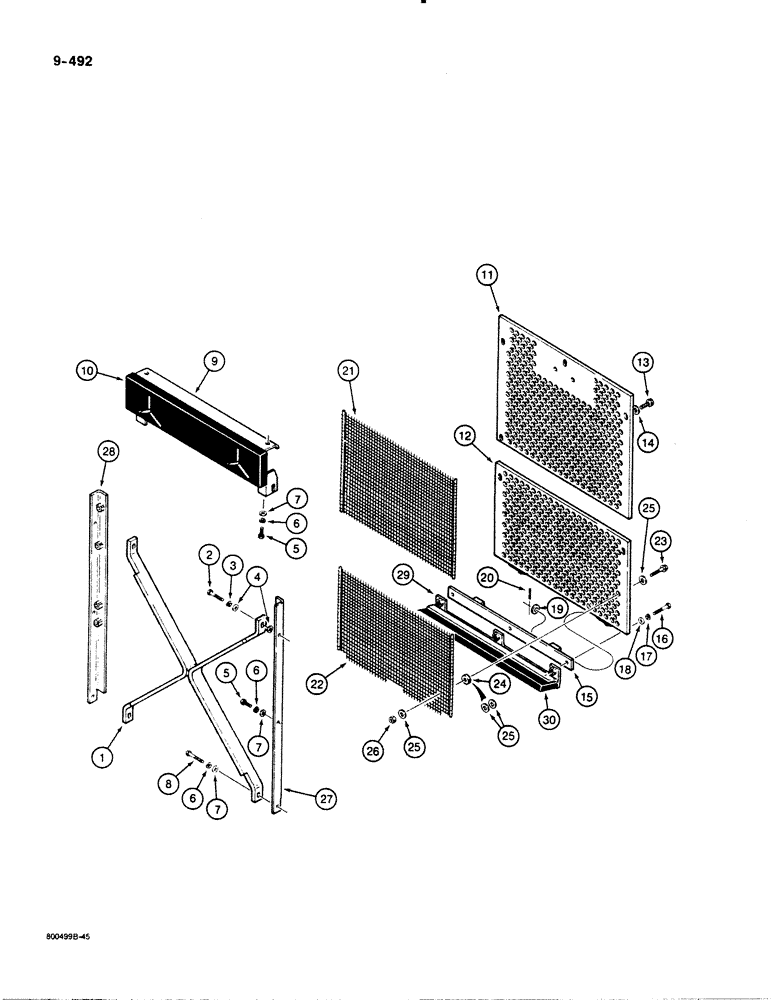

Запчасти Case 1450B (9-492) - HEAVY DUTY (HINGED) GRILLE AND RADIATOR BRUSH SCREEN (09) - CHASSIS/ATTACHMENTS

1

R42156

BRACE

- X, grille support

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, loader models use two per side, dozer models use one per side

2-4шт.

5

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

7

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

6шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

R43573

BRACKET

- headlamp mounting, includes pad, Includes: Ref. 10

1шт.

10

R43570

PAD

- upper radiator baffle, attach with adhesive, see below

1шт.

11

R43567

GRILLE

- upper, bolt-on

1шт.

12

R43568

GRILLE

- lower, hinged at bottom

1шт.

13

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated, Replaces regular bolt and lock washer used on some models

7шт.

14

95-8

WASHER,1/2"

flat 1/2"

7шт.

15

R42200

PLATE ASSY.

PLATE - hinge, grille

1шт.

16

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

3шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

18

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

3шт.

19

195-2072

WASHER,11/16" x 1 1/8" x 109"

- flat, 5/8" bolt size, 1/8" thick

2шт.

20

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

21

R46032

SCREEN

- brush, inside of grille, upper, if used

1шт.

22

R43550

SCREEN

- brush, inside of grille, lower, if used

1шт.

23

121-238

FLANGE BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

BOLT, Hex Flg, 3/8"-16 x 1 3/4", G8

20шт.

24

R20553

WASHER

SPACER - brush screen, no longer used, service each spacer with two 39519 washers (ref. 25)

20шт.

25

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 3/8"

80шт.

26

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

20шт.

27

R28520

ANGLE

BRACKET - grille support, right-hand

1шт.

28

R28521

ANGLE

BRACKET - grille support, left-hand

1шт.

29

R43218

BRACKET

- grille mounting and radiator support, lower, includes pad, Includes: Ref. 30

1шт.

30

R43395

PAD - lower radiator baffle, 28-13/16" (732 mm) x 3" (76 mm) x 1" (25 mm), cut from R53694, see below

1шт.

For standard grille and radiator shroud, see Fig. 9-488 or 9-490.

1шт.

R53694

PAD

- 38" (990 mm) x 3" (76 mm) x 1" (25 mm), adhesive-backed

1шт.

For standard grille and radiator shroud, see Fig. 9-488 or 9-490.

1шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
