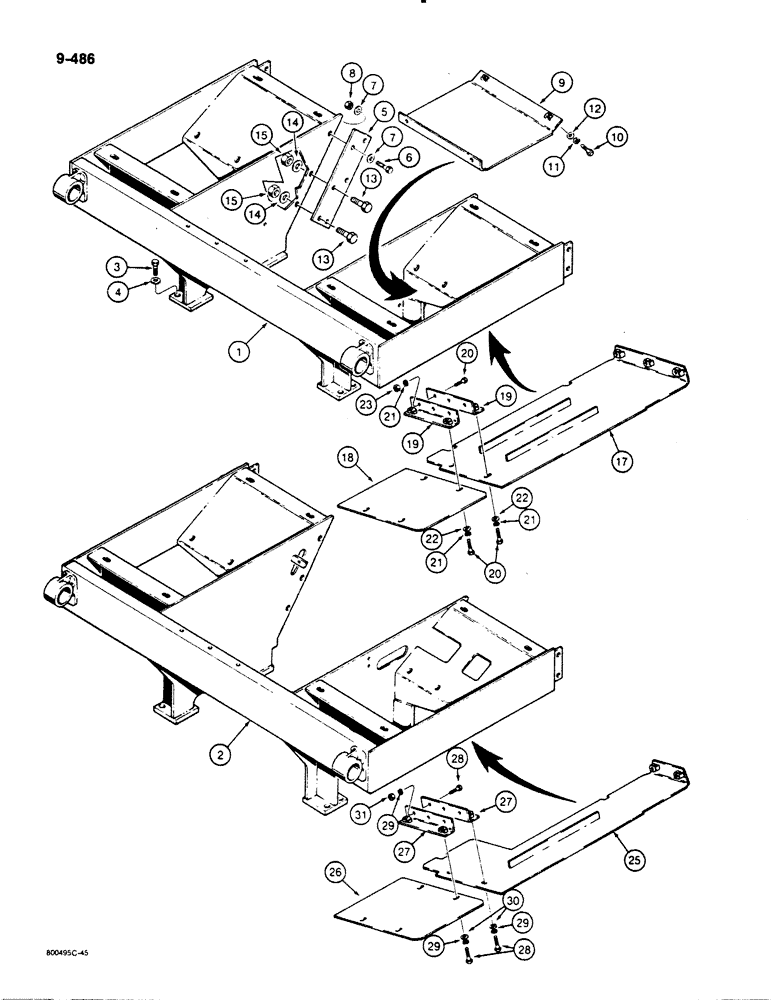

Запчасти Case 1450B (9-486) - SEAT AND RESERVOIRS FRAME AND GUARDS (09) - CHASSIS/ATTACHMENTS

1

R50727

FRAME ASSY

FRAME - seat and reservoirs, dozer and drawbar models

1шт.

2

R43725

FRAME

- seat and reservoirs, 1450B loader

1шт.

2

R50728

FRAME ASSY

FRAME - seat and reservoirs, 1455B loader models

1шт.

3

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite 242 Hex, 3/4"-10 x 2", G8

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

8шт.

5

R36471

LARGE PLATE

PLATE - mounting, main frame to seat and reservoirs frame

2шт.

6

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2", use with Loctite 242

12шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

24шт.

8

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

12шт.

9

R29273

GUARD

- hydraulic tank, all models

1шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

12

R24718

WASHER

- hardened, 1/2"

4шт.

13

D30593

BOLT

- hex head, 7/8" - 9 NC x 2", models with a winch only

8шт.

14

A57033

WASHER

- flat, models with a winch only

8шт.

15

129-109

NUT,7/8"-9, G5

Models with a winch only 7/8"-9, G5

8шт.

16

R46494

GUARD

- left-hand, front, dozer models only

1шт.

17

R46496

GUARD

- righ-hand, front, dozer models only

1шт.

18

R46504

GUARD

- rear, dozer models only

2шт.

19

R46502

ANGLE

BRACKET - guard mounting

6шт.

20

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

30шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

30шт.

22

R24718

WASHER

- hardened, 1/2"

22шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

24

R46498

GUARD

- left-hand, front, loader models only, not shown

1шт.

25

R46500

GUARD

- right-hand, front, loader models only

1шт.

26

R46504

GUARD

- rear, loader models only

1шт.

27

R46502

ANGLE

BRACKET - guard mounting

6шт.

28

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

28шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

28шт.

30

R24718

WASHER

- hardened, 1/2"

20шт.

31

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.
