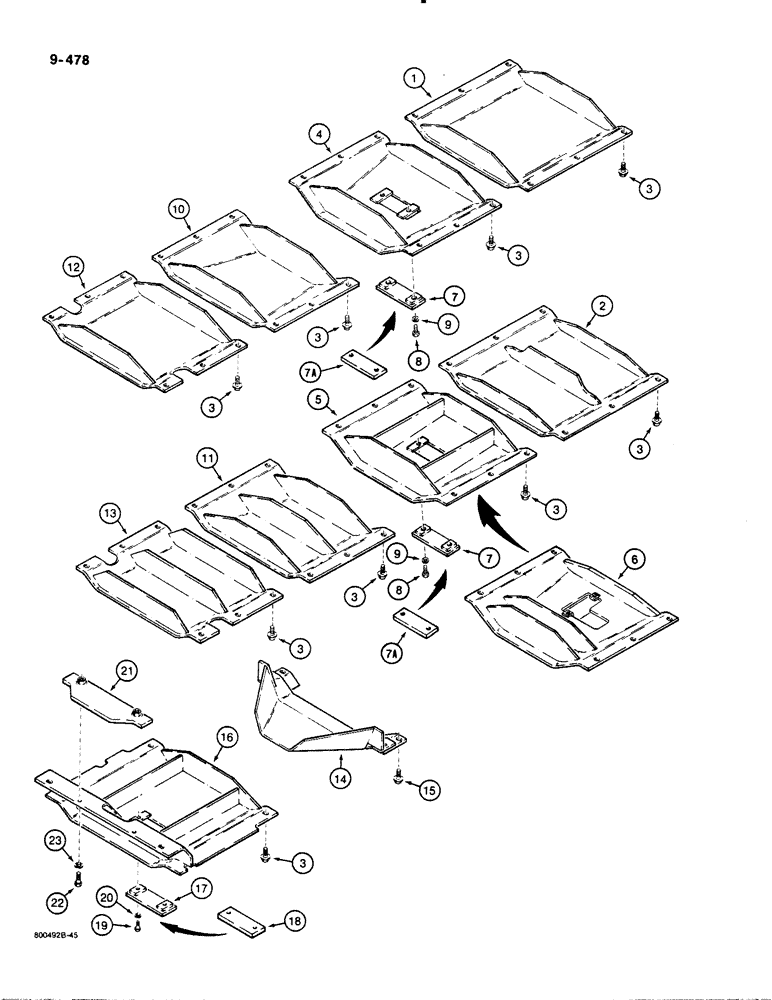

Запчасти Case 1450B (9-478) - UNDERCARRIAGE GUARDS, DOZER MODELS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

GUARD - engine, front, standard, no longer available, replace with R50091 heavy duty guard (ref. 2)

1шт.

2

R50091

GUARD ASSY.

GUARD - engine, front, heavy duty

1шт.

3

121-506

FLANGE BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT - hex flange head, 5/8" - 11 NC x 2", grade 8, replaces regular hex head bolt and flat washer used in production on some models

28шт.

4

R42074

GUARD ASSY.

GUARD - engine crankcase, standard, use prior to engine SN 10335337

1шт.

5

R42205

GUARD ASSY.

GUARD - engine crankcase, heavy duty, use prior to engine SN 10335337

1шт.

6

R48222

GUARD

- engine crankcase, heavy duty, use with engine SN 10335337 and after

1шт.

7

R26886

PLATE

COVER - engine oil drain, with welded-on tapped blocks, no longer available, replace with R48231 cover (ref. 7A)

1шт.

7a

R48231

COVER

- engine oil drain, one-piece

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

R42073

GUARD

- torque converter, standard, no longer available, replace with R50090 heavy duty guard (ref. 11)

1шт.

11

R50090

GUARD

- torque converter, heavy duty

1шт.

12

R28480

GUARD

- pivot shaft, standard, no longer available, replace with R50092 heavy duty guard (ref. 13)

1шт.

13

R50092

GUARD

- pivot shaft, heavy duty

1шт.

14

R42148

GUARD

- transmission, lower, standard, if used

1шт.

15

121-507

BOLT,Hex Flg, 5/8"-11 x 2 1/2", G8

- hex flange head, 5/8" - 11 NC x 2-1/2", grade 8, replaces regular hex head bolt and flat washer used in production on some models

4шт.

16

R41986

GUARD ASSY.

GUARD - transmission, lower, heavy duty

1шт.

17

R26886

PLATE

COVER - transmission oil drain, with welded-on tapped blocks, no longer availiable, replace with R48231 cover (ref. 18)

1шт.

18

R48231

COVER

- transmission oil drain, one-piece

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

R43841

PLATE

GUARD - winch coupling, used with ref. 16 on models with a winch

1шт.

22

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
