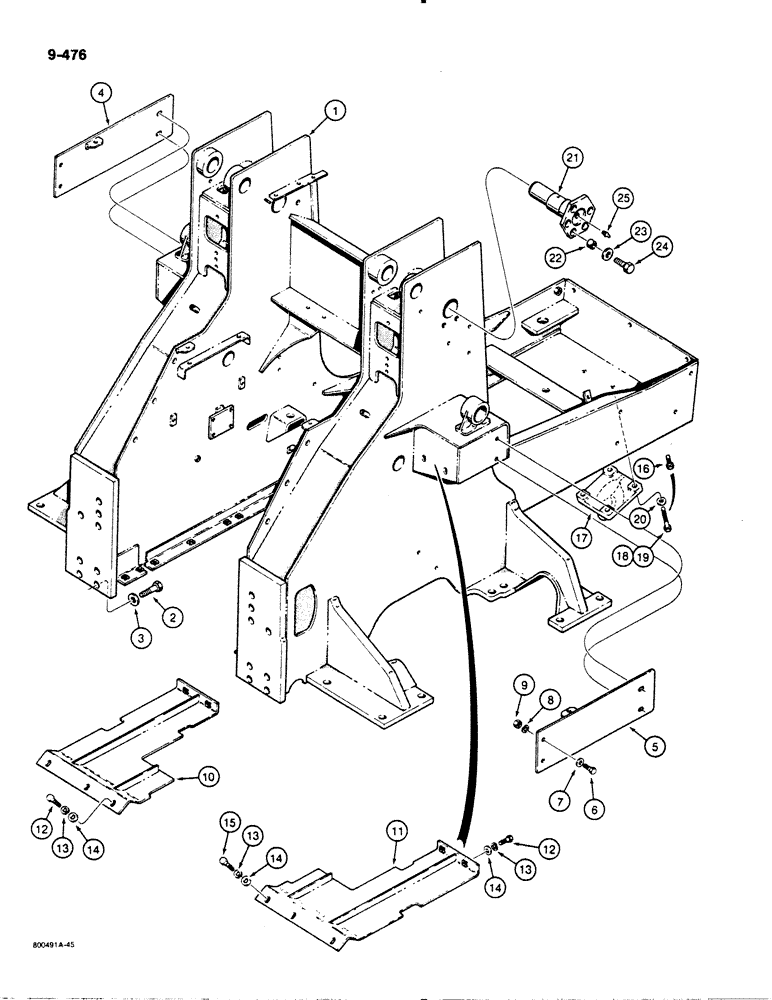

Запчасти Case 1450B (9-476) - MAIN FRAME, PULL HOOK, AND HYDRAULIC GUARDS, LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R50623

FRAME

- engine and main

1шт.

2

26-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

- hex head, 1" - 8 NC x 2-3/4", grade 8, use with Loctite 242

16шт.

3

D30196

WASHER

- hardened, 1"

16шт.

4

R43289

PLATE

- side, left-hand

1шт.

5

R43291

PLATE

- side, right-hand

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

7

R24718

WASHER

- hardened, 1/2"

8шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

10

R43657

GUARD

- hydraulic, left-hand

1шт.

11

R43658

GUARD

- hydraulic, right-hand

1шт.

12

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

14

R24718

WASHER

- hardened, 1/2"

8шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

16

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

without pull hook Hex, 3/4"-10 x 1 1/4", G5

4шт.

17

71671

PLATE ASSY.

PULL HOOK - front

1шт.

18

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

with pull hook Hex, 3/4"-10 x 2 1/4", G5

4шт.

19

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

with pull hook and front counterweight Hex, 3/4"-10 x 4 1/2", G5

4шт.

20

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

4шт.

21

R45897

PIN

- lift frame to main frame, with five holes, replaces pin with four holes, uses two mounting bolts per pin

2шт.

22

T25138

BUSHING

- pin

2-4шт.

23

D31328

WASHER

- special

2-4шт.

24

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite 242 Hex, 3/4"-10 x 2", G8

2-4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.
