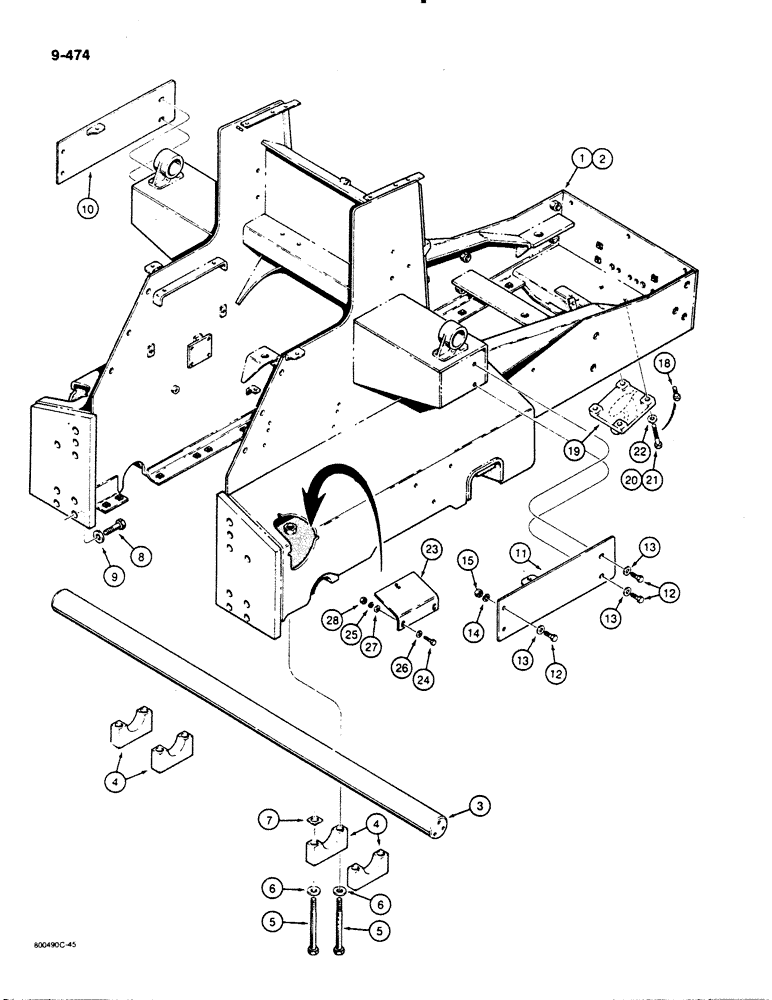

Запчасти Case 1450B (9-474) - MAIN FRAME, PIVOT SHAFT, AND PULL HOOK, DOZER MODELS (09) - CHASSIS/ATTACHMENTS

1

R50621

FRAME

- engine and main, 74" (1880 mm) gauge dozer models

1шт.

2

R50622

FRAME

- engine and main, 78" (1981 mm) gauge LGP dozer models

1шт.

3

R28437

SHAFT

- pivot, 74" (1880 mm) gauge dozer models

1шт.

3

R43695

SHAFT

- pivot, 78" (1981 mm) gauge LGP dozer models

1шт.

4

R28410

CLAMP

- pivot shaft

4шт.

5

26-16152

BOLT,Hex, 1" - 8 x 9-1/2", Gr 8

- hex head, 1" - 8 NC x 9-1/2", grade 8

8шт.

6

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- 1", hardened

8шт.

7

R28516

SPACER

- clamp

4шт.

8

26-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

- hex head, 1" - 8 NC x 2-3/4, grade 8, use with Loctite 242

16шт.

9

D30196

WASHER

- 1", hardened

16шт.

10

R43289

PLATE

- side, left-hand

1шт.

11

R43291

PLATE

- side, right-hand

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

13

R24718

WASHER

- 1/2", hardened

8шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

18

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

without pull hook Hex, 3/4"-10 x 1 1/4", G5

4шт.

19

71671

PLATE ASSY.

PULL HOOK - front

1шт.

20

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

with pull hook Hex, 3/4"-10 x 2 1/4", G5

4шт.

21

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

with pull hook and front counterweight Hex, 3/4"-10 x 4 1/2", G5

4шт.

22

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 3/4", hardened

4шт.

23

R46683

COVER

- main frame, if used

2шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

26

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

6шт.

27

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- 3/8", hardened

6шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.
