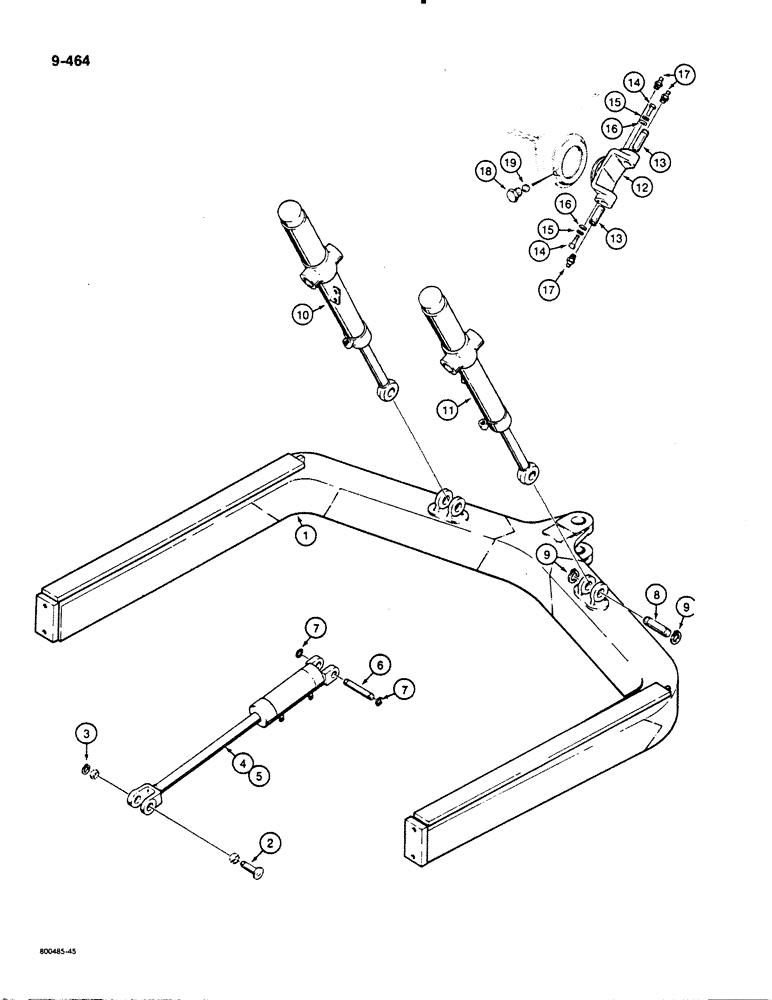

Запчасти Case 1450B (9-464) - HYDRAULIC ANGLE TILT PITCH DOZER MODELS, C-FRAME AND CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

C-FRAME - dozer, see Figs. 9-460 and 9-462 for correct C-frame

1шт.

2

R37207

PIN

- tilt and pitch, Serial Range: cylinder-strut

2шт.

3

D25279

SNAP RING,M35, Int

- pin

2шт.

4

G101022

CYLINDER

- tilt and pitch, right-hand, parts list Fig. 8-378

1шт.

5

G101023

CYLINDER

- tilt and pitch, left-hand, parts list Fig. 8-378

1шт.

6

D42787

PIN

- tilt and pitch, Serial Range: cylinder-blade

2шт.

7

D25279

SNAP RING,M35, Int

- pin

4шт.

8

R28003

PIN

- lift, Serial Range: cylinder-c-frame

2шт.

9

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

10

G100947

CYLINDER BLOCK

CYLINDER - lift, left-hand, parts list Fig. 8-372

1шт.

11

G100948

CYLINDER BLOCK

CYLINDER - lift, right-hand, parts list Fig. 8-372

1шт.

12

R46804

TRUNNION

- lift cylinder

2шт.

13

R28002

PIN

- trunnion

4шт.

14

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

15

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

4шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

18

D28481

PLUG

- trunnion

2шт.

19

211-17

BALL,3/4" Dia

- steel, meter 3/4" Dia

70шт.
