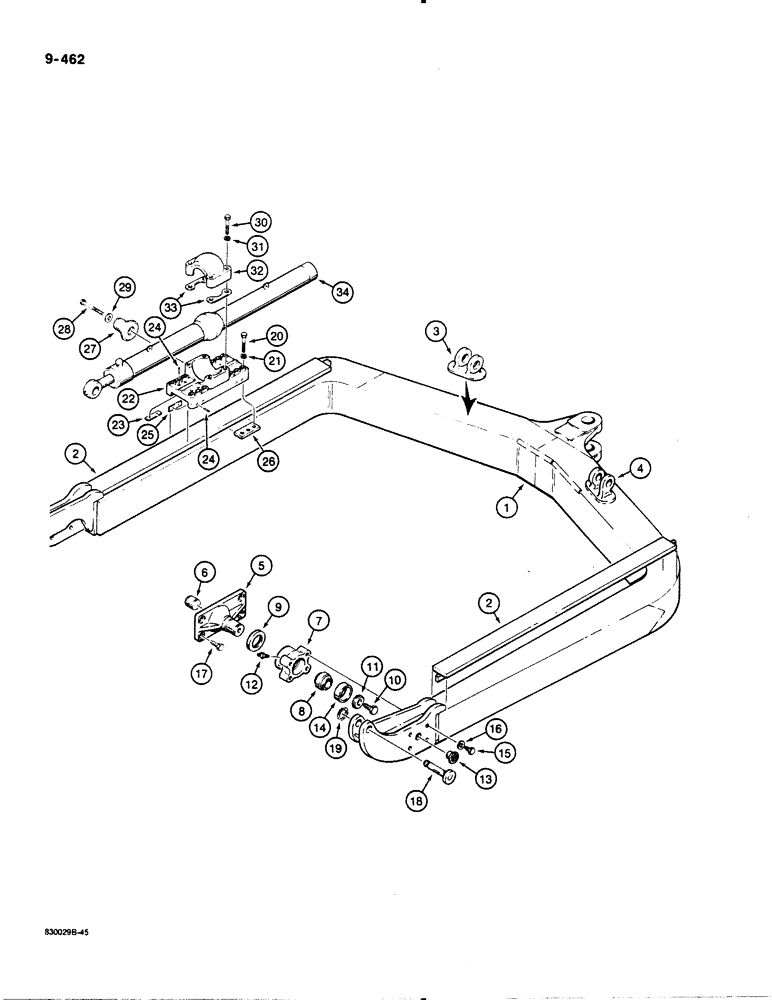

Запчасти Case 1450B (9-462) - HYDRAULIC ANGLE TILT PITCH DOZER MODELS, *C-FRAME WITH WELDED ON TRUNNION IF USED (09) - CHASSIS/ATTACHMENTS

1

R50899

FRAME

C-FRAME - dozer, Includes: Ref. 2 - 4

1шт.

2

R44139

RAIL

- slide, C-frame, weld on

2шт.

3

R37019

LUG

- lift, C-frame, left-hand, weld on

1шт.

4

R37020

LUG

- lift, C-frame, right-hand, weld on

1шт.

R46836

TRUNNION

ASSEMBLY - C-frame, Includes: Ref. 5 and 6

2шт.

5

NSS

NOT SOLD SEPARAT

TRUNNION - C-frame

1шт.

6

R41804

PIN

- trunnion

1шт.

R49138

BLOCK ASSY.

BLOCK ASSEMBLY - trunnion, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

BLOCK - trunnion

1шт.

8

R41800

SPHERICAL BEARING,69.85mm ID x 111.13mm OD x 61.11mm W

- self-aligning

1шт.

9

R49147

SEAL

- trunnion block

1шт.

10

26-1832

BOLT,Hex, 1-1/8" - 7 x 2", Gr 8

- hex head, 1-1/8" - 7 NC x 2", grade 8, use with Loctite 242

2шт.

11

R41803

WASHER

- special

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

13

R46645

PLUG

- trunnion block, use with Loctite 242

2шт.

14

R46644

SPACER

- trunnion block

2шт.

15

26-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 8

- hex head, 1" - 8 NC x 3-1/4", grade 8, use with Loctite 242

8шт.

16

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

8шт.

17

13-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

8шт.

18

R46876

HEADED PIN

PIN - angle cylinder

2шт.

19

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

20

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

- hex head, 5/8" - 11 NC x 3-3/4", grade 8

24шт.

21

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

22

R46807

BRACKET

- slide

2шт.

23

R37196

SHIM,.016" Thk

(.41 mm) .016" Thk

1шт.

24

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Tapered 5/16" x 1", Type B, Hardened

32шт.

25

R37185

PLATE ASSY.

STRIP - wear, slide bracket

16шт.

26

R37197

PLATE ASSY.

BLOCK - tapped, slide bracket

8шт.

27

R42811

PIN

- strut mounting

2шт.

28

26-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

- hex head, 1" - 8 NC x 5", grade 8

2шт.

29

R35127

WASHER

- hardened

2шт.

30

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex head, 5/8" - 11 NC x 3-3/4"

8шт.

31

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

32

R46803

CAP

- slide

2шт.

33

R28387

SHIM,.030" Thk

(.76 mm) .030" Thk

1шт.

33

R42671

SHIM

- .104" (2.6 mm) thick

1шт.

34

G102497

CYLINDER BLOCK

CYLINDER - angle, parts list Fig. 8-380

2шт.
