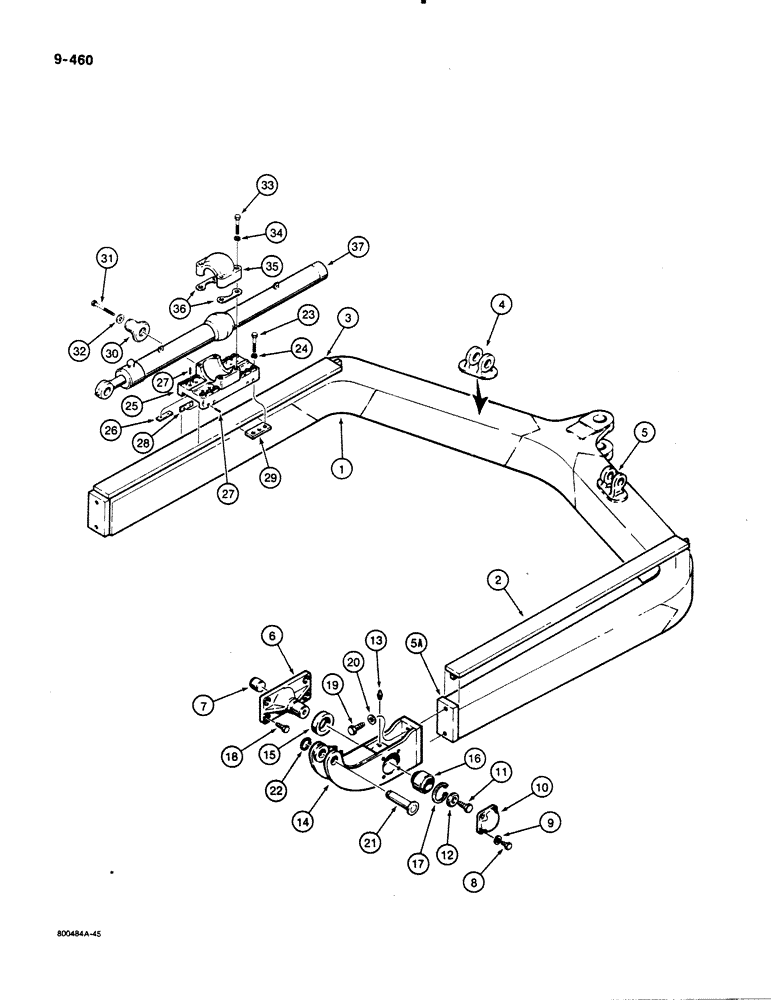

Запчасти Case 1450B (9-460) - HYDRAULIC ANGLE TILT PITCH DOZER MODELS, *C-FRAME WITH BOLT ON TRUNNION, IF USED (09) - CHASSIS/ATTACHMENTS

1

R37227

FRAME

C-FRAME - dozer, with bolt-on trunnion brackets (ref. 14), assembly no longer available, order refs. 1, 13, 14, and R49138 block assembly (refs. 7-9) on Fig. 9-462, Includes: Ref. 2 - 5A

1шт.

2

R44139

RAIL

- slide, C-frame, right-hand, weld on

1шт.

3

R44139

RAIL

- slide, C-frame, left-hand, weld on

1шт.

4

R37019

LUG

- lift, C-frame, left-hand, weld on

1шт.

5

R37020

LUG

- lift, C-frame, right-hand, weld on

1шт.

5a

R44448

PLATE

- end, C-frame, bracket mounting, weld on

2шт.

R41884

BRACKET

TRUNNION AND BRACKET ASSEMBLY - left-hand, Includes: Ref. 6 - 17

1шт.

R41885

BRACKET

TRUNNION AND BRACKET ASSEMBLY - right-hand, Includes: Ref. 6 - 17

1шт.

R46836

TRUNNION

ASSEMBLY - C-frame, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

TRUNNION - C-frame

1шт.

7

R41804

PIN

- trunnion

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

R41805

COVER ASSY

COVER - trunnion

1шт.

11

26-1832

BOLT,Hex, 1-1/8" - 7 x 2", Gr 8

- hex head, 1-1/8" - 7 NC x 2", grade 8, use with Loctite 242

1шт.

12

R41803

WASHER

- special

1шт.

13

21-1

GREASE FITTING - straight, 1/8" NPT

1шт.

R41882

BRACKET

ASSEMBLY - trunnion, left-hand, Includes: Ref. 14 - 17

1шт.

R41883

BRACKET

ASSEMBLY - trunnion, right-hand, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

BRACKET - trunnion

1шт.

15

R49147

SEAL

- bracket, replaces plain gasket used on some models

1шт.

16

R41800

SPHERICAL BEARING,69.85mm ID x 111.13mm OD x 61.11mm W

- self-aligning

1шт.

17

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , brg 4.331", Int, #433

1шт.

18

13-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

8шт.

19

26-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 8

- hex head, 1" - 8 NC x 3-1/4", grade 8

4шт.

20

R35127

WASHER

- hardened

4шт.

21

R37209

PIN

- angle cylinder

2шт.

22

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

23

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

- hex head, 5/8" - 11 NC x 3-3/4", grade 8

24шт.

24

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

25

R46807

BRACKET

- slide

2шт.

26

R37196

SHIM,.016" Thk

(.41 mm) .016" Thk

1шт.

27

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Tapered 5/16" x 1", Type B, Hardened

32шт.

28

R37185

PLATE ASSY.

STRIP - wear, slide bracket

16шт.

29

R37197

PLATE ASSY.

BLOCK - tapped, slide bracket

8шт.

30

R42811

PIN

- strut mounting

2шт.

31

26-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

- hex head, 1" - 8 NC x 5", grade 8

2шт.

32

R35127

WASHER

- hardened

2шт.

33

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex head, 5/8" - 11 NC x 3-3/4"

8шт.

34

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

35

R46803

CAP

- slide

2шт.

36

R28387

SHIM,.030" Thk

(.76 mm) .030" Thk

1шт.

36

R42671

SHIM

- .104" (2.6 mm) thick

1шт.

37

G102497

CYLINDER BLOCK

CYLINDER - angle, parts list Fig. 8-380

2шт.
