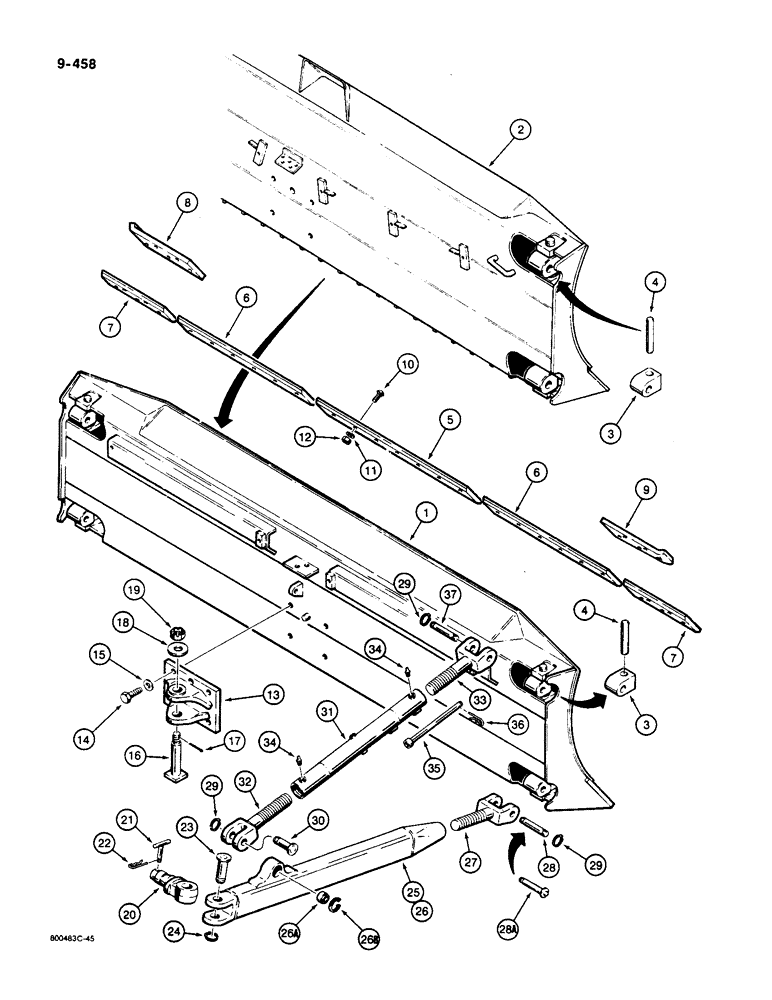

Запчасти Case 1450B (9-458) - MECHANICAL ANGLE DOZER, BLADE AND STRUTS (09) - CHASSIS/ATTACHMENTS

1

R47701

HALF BLADE

BLADE - with hose guards welded on back, no longer available, order R47698 blade (ref. 2), see figures 8-339 and 8-341 for the correct optional tilt hydraulic circuit used with this blade, Includes: Ref. 3 and 4

1шт.

If you replace R47701 blade with R47698 blade, you must also replace hydraulic circuit components shown on Figures 8-338 and 8-340 with corresponding replacement components shown on Figures 8-342 and 8-344. Or, you may adapt R47698 blade to fit your present hydraulic circuit by making weldment adjustments to the back of the blade, compare Ref. 1 and 2 on this Figure

1шт.

2

R47698

HALF BLADE

BLADE - with tapped blocks for tube mounting on back, see figures 8-343 and 8-345 for the correct optional tilt hydraulic circuit used with this blade, Includes: Ref. 3 and 4

1шт.

The dowel pin P/N R37120, NSS, is part of R47698 Blade weldment

1шт.

3

R37089

BRACKET

- strut mounting, R47701 and R47698 blades

4шт.

4

R37331

PIN

- bracket, R47701 and R47698 blades

4шт.

5

R41908

EDGE, CUTTING

CUTTING EDGE - center

1шт.

6

R41909

EDGE, CUTTING

CUTTING EDGE - intermediate

2шт.

7

R42490

END

CUTTING EDGE - end, flat type

2шт.

8

R41910

EDGE, CUTTING

CUTTING EDGE - left-hand, curved type, heavy duty

1шт.

9

R41911

EDGE, CUTTING

CUTTING EDGE - right-hand, curved type, heavy duty

1шт.

10

R56474

PLOW BOLT

- dome head, 3/4" - 10 NC x 2-1/2", grade 8

29шт.

11

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

29шт.

12

129-572

NUT,3/4"-10, G8

29шт.

13

R47093

BRACKET

- blade pivot

1шт.

14

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

- hex head, 1" - 8 NC x 3"

4шт.

15

D30196

WASHER

- hardened, 1/4" (6 mm) thick

4шт.

16

R42967

PIVOT PIN

PIN - pivot bracket

1шт.

17

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

18

R26660

WASHER,40.39mm ID x 101.6mm OD x 12mm Thk

- special, pin

1шт.

19

25-1224

SLOTTED NUT,1 1/2"-6, G5

CASTLE NUT - 1-1/2" - 6 NC

1шт.

20

R46832

HITCH PIN

PIN - lower, Serial Range: strut-C-frame

2шт.

21

R42993

PIN

- tee, strut mounting

2шт.

22

136-163

HAIR PIN COTTER,Int, 5/16" x .177

HAIR PIN - tee pin

2шт.

23

R42965

PIN

- lower strut, rear

2шт.

24

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

25

R46580

FRAME

STRUT - lower, left-hand, with self-aligning bushing, replaces strut without bushing on some models

1шт.

26

R46579

FRAME

STRUT - lower, right-hand, with self-aligning bushing, replaces strut without bushing on some models, Includes: Ref. 26A and 26B

1шт.

26a

L74160

BEARING

BUSHING - self-aligning, R46580 and R46579 struts

1шт.

26b

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing, R46580 and R46579 struts 2.44", Int, #244

1шт.

27

R42880

JACK HEAD

CLEVIS - lower strut

2шт.

28

D42787

PIN

- clevis to blade, lower strut, requires two snap rings per pin, no longer used, order ref. 28A

2шт.

28a

R48243

PIN

- clevis to blade, lower strut, requires one snap ring per pin

2шт.

29

D25279

SNAP RING,M35, Int

- pin

10шт.

30

R37207

PIN

- upper, Serial Range: strut-C-frame

2шт.

R42884

STRUT

ASSEMBLY - upper, Includes: Ref. 31 - 34

2шт.

31

R42883

STRUT

- upper

1шт.

32

R42877

JACK HEAD

CLEVIS - rear

1шт.

33

R42879

JACK HEAD

CLEVIS - front

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

35

R43491

HANDLE

- strut locking and adjusting

2шт.

36

136-163

HAIR PIN COTTER,Int, 5/16" x .177

HAIR PIN - strut handle

2шт.

37

D42787

PIN

- upper, Serial Range: strut-blade

2шт.
