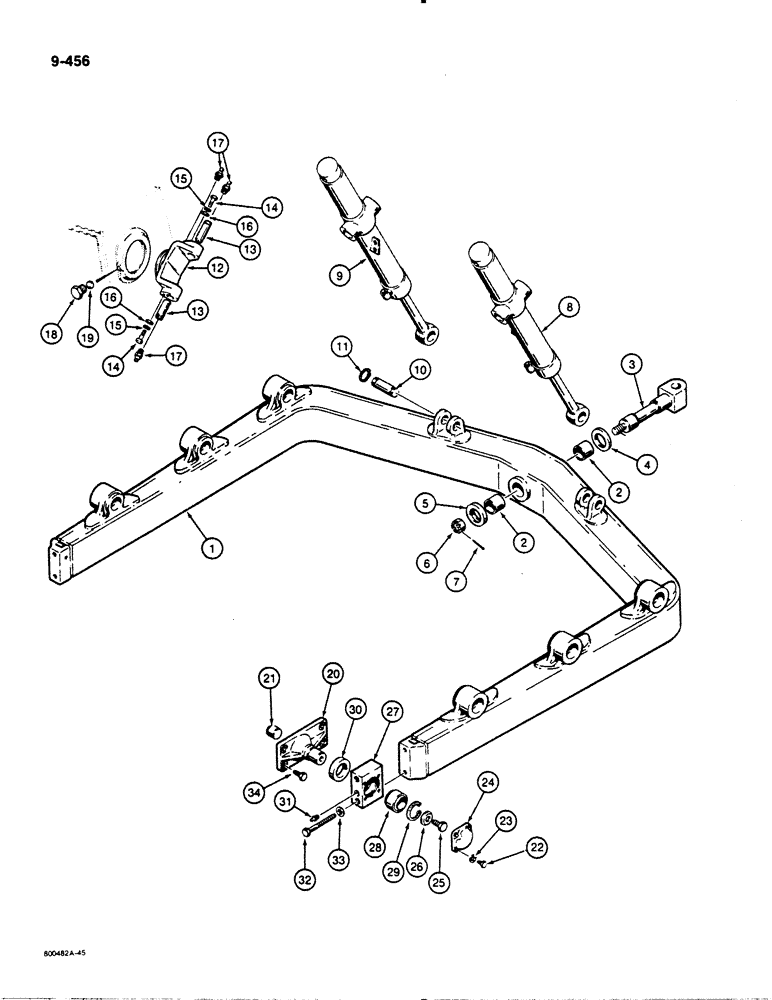

Запчасти Case 1450B (9-456) - MECHANICAL ANGLE DOZER, C-FRAME AND LIFT CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

R46780

FRAME

C-FRAME - dozer, Includes: Ref. 2

1шт.

2

R28251

BUSHING

- front, C-frame

2шт.

3

R47494

PIVOT PIN

PIN - center pivot, C-frame

1шт.

4

R42962

WASHER

- special, pin mounting, front

1шт.

5

R42963

WASHER

- special, pin mounting, rear

1шт.

6

25-1228

NUT

CASTLE NUT - hex, 1-3/4" - 5 NC

1шт.

7

132-161

COTTER PIN,1/4" x 3 1/2"

PIN, Split (Cotter), 1/4" x 3 1/2"

1шт.

8

G100947

CYLINDER BLOCK

CYLINDER - lift, left-hand, parts list Fig. 8-372

1шт.

9

G100948

CYLINDER BLOCK

CYLINDER - lift, right-hand, parts list Fig. 8-372

1шт.

10

R28003

PIN

- lift, Serial Range: cylinder-C-frame

2шт.

11

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

12

R46804

TRUNNION

- lift cylinder

2шт.

13

R28002

PIN

- trunnion

4шт.

14

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

15

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

4шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

18

D28481

PLUG

- trunnion

2шт.

19

211-17

BALL,3/4" Dia

- steel, meter 3/4" Dia

70шт.

R49140

TRUNNION

ASSEMBLY - C-frame, Includes: Ref. 20 - 34

2шт.

20

NSS

NOT SOLD SEPARAT

TRUNNION - C-frame

1шт.

21

R41804

PIN

- trunnion

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

24

R41806

COVER - trunnion

1шт.

25

26-1832

BOLT,Hex, 1-1/8" - 7 x 2", Gr 8

- hex head, 1-1/8" - 7 NC x 2", grade 8

1шт.

26

R41803

WASHER

- hardened

1шт.

R49139

TRUNNION

BLOCK ASSEMBLY - trunnion, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

BLOCK - trunnion

1шт.

28

R41800

SPHERICAL BEARING,69.85mm ID x 111.13mm OD x 61.11mm W

- block

1шт.

29

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , block 4.331", Int, #433

1шт.

30

R49147

SEAL

- block, replaces plain gasket used in production on some models

1шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

32

26-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

- hex head, 1" - 8 NC x 8", grade 8

4шт.

33

D30196

WASHER

- flat, hardened, 1"

4шт.

34

13-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

8шт.
