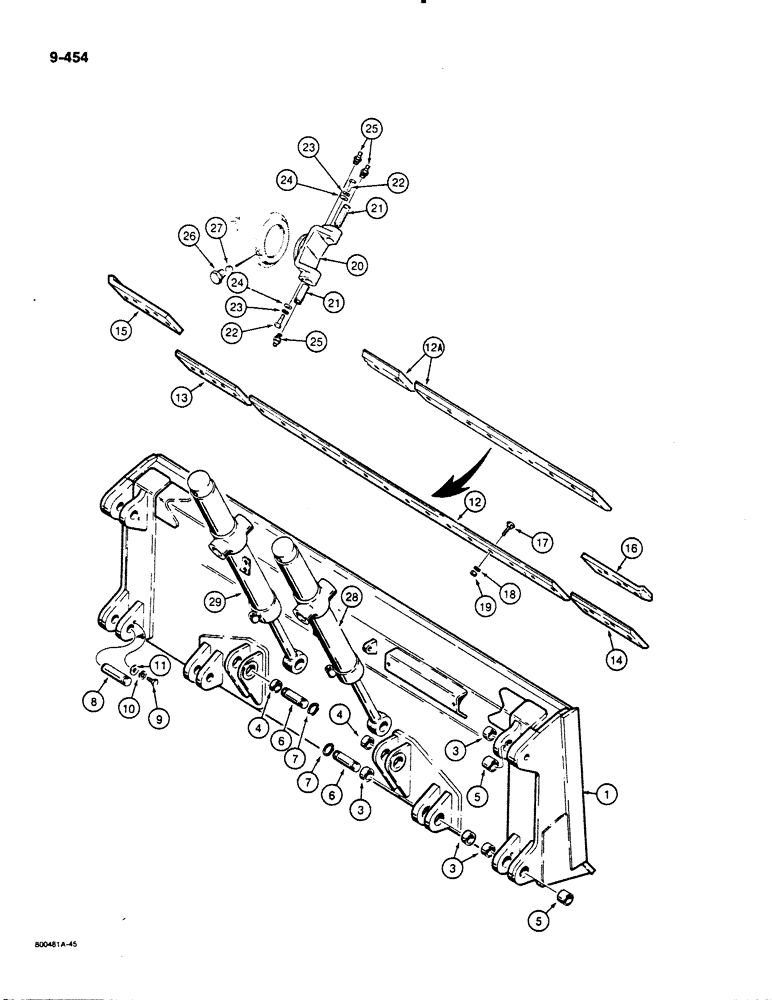

Запчасти Case 1450B (9-454) - TILT DOZER, BLADE AND LIFT CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

R41731

BLADE

- 120" (3048 mm) wide, used on 74" (1880 mm) gauge tilt dozer models, Includes: Ref. 3 - 5

1шт.

1

R42649

BULL BLADE

BLADE - 136" (3454 mm) wide, used on 78" (1981 mm) gauge LGP tilt dozer models, Includes: Ref. 3 - 5

1шт.

3

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- mounting lugs, right-hand, as shown

4шт.

4

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- mounting brackets, lift cylinder

4шт.

5

D43508

BUSHING

- right-hand, outer, upper and lower

2шт.

6

R28003

PIN

- push beam and lift, Serial Range: cylinder-blade

4шт.

7

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

8шт.

8

R30991

PIN,50.8mm OD x 170.18mm L

- push, Serial Range: beam-blade

2шт.

9

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

2шт.

12

R41857

EDGE, CUTTING

86-15/16 in blade, 15 holes, center, 74" (1880 mm) gauge tilt dozer models

1шт.

12a

R42626

EDGE, CUTTING

51-11/32 in blade, 9 holes, center, 78" (1981 mm) gauge LGP tilt dozer models

2шт.

12 & 12A INCHES SHOWN REFERENCE

1шт.

13

R42500

EDGE, CUTTING

CUTTING EDGE - left-hand end, flat type

1шт.

14

R42501

EDGE, CUTTING

CUTTING EDGE - right-hand end, flat type

1шт.

15

R41858

EDGE, CUTTING

CUTTING EDGE - left-hand end, curved type, heavy duty

1шт.

16

R41859

EDGE, CUTTING

CUTTING EDGE - right-hand end, curved type, heavy duty

1шт.

17

R56474

PLOW BOLT

- dome head, 3/4" - 10 NC x 2-1/2", 25 used on 74" (1880 mm) gauge tilt dozer models, 28 used on 78" (1981 mm) gauge LGP tilt dozer models

28шт.

18

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

28шт.

19

129-572

NUT,3/4"-10, G8

28шт.

20

R46804

TRUNNION

- lift cylinder

2шт.

21

R28002

PIN

- trunnion

4шт.

22

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

26

D28481

PLUG

- trunnion

2шт.

27

211-17

BALL,3/4" Dia

- steel, meter 3/4" Dia

70шт.

28

G103100

CYLINDER

- lift, right-hand, parts list Fig. 8-370

1шт.

29

G103101

CYLINDER BLOCK

CYLINDER - lift, left-hand, parts list Fig. 8-370

1шт.
