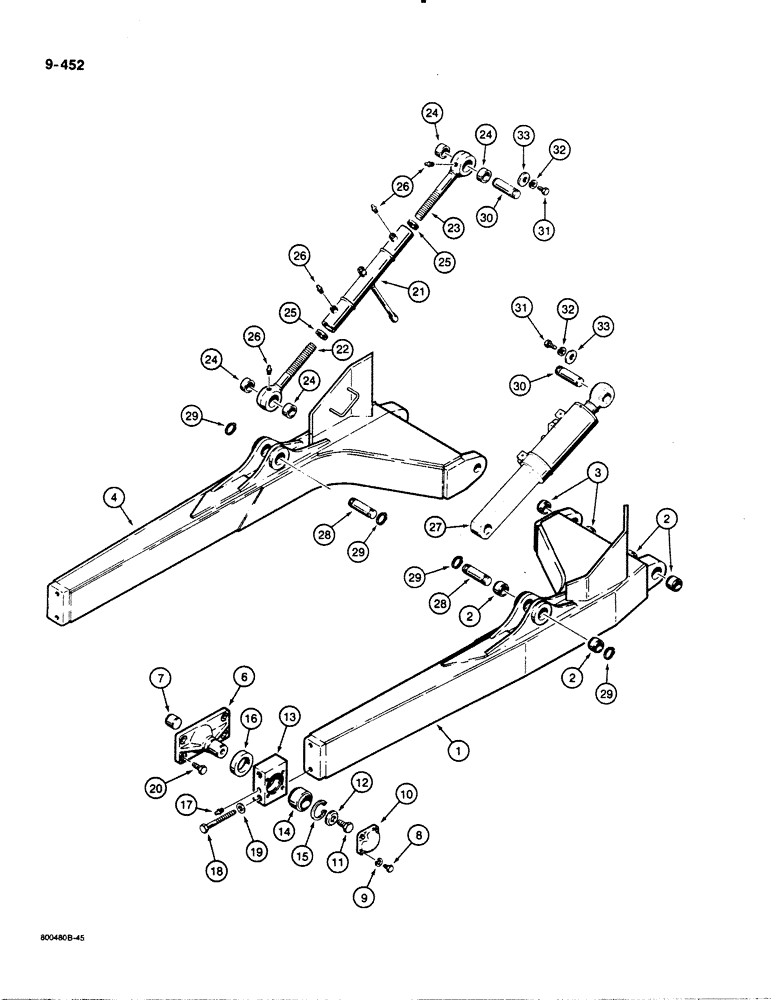

Запчасти Case 1450B (9-452) - TILT DOZER, PUSH BEAMS, TILT CYLINDER AND STRUT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

R43195

FRAME

PUSH BEAM - right-hand, Includes: Ref. 2 and 3

1шт.

REF. 1 R43195 BUSHINGS ARE (2) D33678 AND BUSHING (4) D43946.

1шт.

2

D43946

BUSHING,51.02mm ID x 63.5mm OD x 35.6mm L

- cylinder mounting

4шт.

3

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- blade mounting

2шт.

4

R43194

ARM

PUSH BEAM - left-hand

1шт.

REF. 4 R54808 IS NOT BUSHED, BUT IS LINE BORED.

1шт.

R49140

TRUNNION

ASSEMBLY - push, Includes: Ref. 6 - 16

2шт.

6

NSS

NOT SOLD SEPARAT

TRUNNION - push

1шт.

7

R41804

PIN

- trunnion

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

R41805

COVER ASSY

COVER - trunnion

1шт.

11

26-1832

BOLT,Hex, 1-1/8" - 7 x 2", Gr 8

- hex head, 1-1/8" - 7 NC x 2", grade 8, use with Loctite 242

1шт.

12

R41803

WASHER

- hardened

1шт.

R49139

TRUNNION

BLOCK ASSEMBLY - trunnion, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK - trunnion

1шт.

14

R41800

SPHERICAL BEARING,69.85mm ID x 111.13mm OD x 61.11mm W

- block

1шт.

15

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , block 4.331", Int, #433

1шт.

16

R49147

SEAL

- block, replaces plain gasket used in production on some models

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

18

26-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

- hex head, 1" - 8 NC x 8", grade 8

4шт.

19

D30196

WASHER

- flat, hardened, 1"

4шт.

20

113-923

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

8шт.

R34205

STRUT

ASSEMBLY - blade, left-hand side only, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

STRUT - blade

1шт.

22

R28060

ROD

EYE - strut, push beam end

1шт.

23

R28061

ROD

EYE - strut, blade end, Includes: Ref. 24

1шт.

24

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- R28060 and R28061 strut eyes

2шт.

25

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod, strut eye, if used

2шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

27

G34550

CYLINDER

- tilt, right-hand side only, parts list Fig. 8-374

1шт.

28

D37610

PIN

- strut and cylinder to push beam

2шт.

29

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

30

R29397

PIN

- strut and, Serial Range: cylinder-blade

2шт.

31

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

32

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

2шт.
